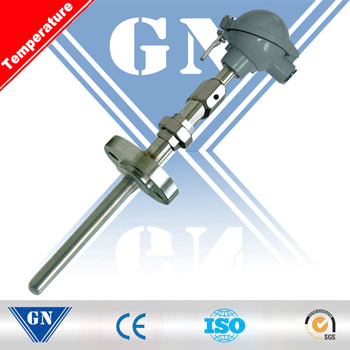

Armored Thermocouple with Movable Flange


Brief introduction:

It is usually connected with display meter, recording meter and computer ect.
To directly measure the temperature of liquid, vaper, gas and solid surface
ranging from 0 to 1300°C during various production processes.

How to choose?
1.Diameter and length:Can be customized as customer's requirements
2.Junction box: water-proof type, splash-proof type, anti-explosion type, connector type,import type.
3.Fixed device: flange/none/screw.
4.Temperature Range: 0-1800 centigrade .
5.Terminal blocks: terminals box

Selection table:

Type	Graduation	Measuring Range	Thermal Response Time	Protection Tube Material	Specification
					d	L
WRM-320 WRM2-320	N	0-800	<90S	1Cr18Ni9Ti	Φ16	150 200 250 300 350 400 500 750 1000 1500 2000 2150
		0-1000		0Cr25Ni20
WRM-320G WRM2-320G		0-800	<24S	1Cr18Ni9Ti
		0-1000		0Cr25Ni20
WRN-320 WRN2-320	K	0-800	<90S	1Cr18Ni9Ti
		0-1000		0Cr25Ni20
WRN-320G WRN2-320G		0-800	<24S	1Cr18Ni9Ti
		0-1000		0Cr25Ni20
WRE-320 WRE2-320	E	0-800	<90S	1Cr18Ni9Ti
WRE-320G WRE2-320G			<24s
WRC-320 WRC2-320	T	0-350	<90s	1Cr18Ni9Ti
WRC-320G WRC2-320G			<24s
WRF-320 WRF2-320	J	0-600	<90s	1Cr18Ni9Ti
WRF-320G WRF2-320G			<24s
WRM-321 WRM2-321	N	0-800	<20s	1Cr18Ni9Ti	Φ20
		0-1000		0Cr25Ni20
WRM-321G WRM2-321G		0-800	<24s	1Cr18Ni9Ti
		0-1000		0Cr25Ni20
WRN-321 WRN2-321	K	0-800	<120S	1Cr18Ni9Ti
		0-1000		0Cr25Ni20
WRN-321G WRN2-321G		0-800	<24S	1Cr18Ni9Ti
		0-1000		0Cr25Ni20
WRE-321 WRE2-321	E	0-800	<120S	1Cr18Ni9Ti
WRE-321G WRE2-321G			<24S
WRC-321 WRC2-321	T	0-350	<120S	1Cr18Ni9Ti
WRC-321G WRC2-321G			<24S
WRF-321 WRF2-321	J	0-600	<120S	1Cr18Ni9Ti
WRF-321G WRF2-321G			<24S

Type	Graduation	Measuring Range	Thermal Response Time	Protection Tube Material	Specification
					d	L
WRM-330 WRM2-330	N	0-800	<90S	1Cr18Ni9Ti	Φ16	150 200 250 300 350 400 500 750 1000 1500 2000 2150
		0-1000		0Cr25Ni20
WRM-330G WRM2-330G		0-800	<24S	1Cr18Ni9Ti
		0-1000		0Cr25Ni20
WRN-330 WRN2-330	K	0-800	<90S	1Cr18Ni9Ti
		0-1000		0Cr25Ni20
WRN-330G WRN2-330G		0-800	<24S	1Cr18Ni9Ti
		0-1000		0Cr25Ni20
WRE-330 WRE2-330	E	0-800	<90S	1Cr18Ni9Ti
WRE-330G WRE2-330G			<24s
WRC-330 WRC2-330	T	0-350	<90s	1Cr18Ni9Ti
WRC-330G WRC2-330G			<24s
WRF-330 WRF2-330	J	0-600	<90s	1Cr18Ni9Ti
WRF-330G WRF2-330G			<24s
WRM-331 WRM2-331	N	0-800	<20s	1Cr18Ni9Ti	Φ20
		0-1000		0Cr25Ni20
WRM-331G WRM2-331G		0-800	<24s	1Cr18Ni9Ti
		0-1000		0Cr25Ni20
WRN-331 WRN2-331	K	0-800	<120S	1Cr18Ni9Ti
		0-1000		0Cr25Ni20
WRN-331G WRN2-331G		0-800	<24S	1Cr18Ni9Ti
		0-1000		0Cr25Ni20
WRE-331 WRE2-331	E	0-800	<120S	1Cr18Ni9Ti
WRE-331G WRE2-331G			<24S
WRC-331 WRC2-331	T	0-350	<120S	1Cr18Ni9Ti
WRC-331G WRC2-331G			<24S
WRF-331 WRF2-331	J	0-600	<120S	1Cr18Ni9Ti
WRF-331G WRF2-331G			<24S

Diagram:
It can be suctomized according to your requirements.
