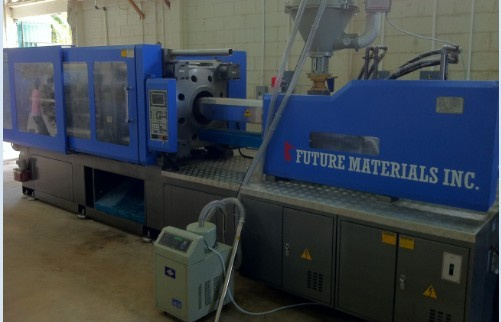

Injection molding machine fmi-3280 |
|
|
|
|
|
Specification |
fmi-3280 |
|
|
|
|
Injection unit |
|
a |
b |
c |
|
Screw diameter |
mm |
65 |
70 |
75 |
|
Screw l/d ratio |
l/d |
22.5 |
21.5 |
20 |
|
Shot volume(theoretical) |
cm3 |
1181 |
1308 |
1480 |
|
Injection weight(ps) |
g |
1076 |
1190 |
1349 |
|
Injection rate |
g/s |
337 |
368 |
422 |
|
Injection pressure |
mpa |
186 |
170 |
148 |
|
Screw speed |
rpm |
160 |
|
|
|
Clamping unit |
|
|
|
|
|
Clamp force |
kn |
3280 |
|
|
|
Open stroke |
mm |
660 |
|
|
|
Space between tie bars(w*h) |
mm |
660x660 |
|
|
|
Max. Mould height |
mm |
720 |
|
|
|
Min. Mould height |
mm |
250 |
|
|
|
Ejector stroke |
mm |
160 |
|
|
|
Ejector force |
kn |
70 |
|
|
|
Other |
|
|
|
|
|
Max. Pump pressure |
mpa |
16 |
|
|
|
Pump motor power |
kw |
37 |
|
|
|
Heating power |
kw |
24.7 |
|
|
|
Machine dimension(l*w*h) |
m |
7.21x1.90x2.34 |
|
|
|
Oiltank cubage |
l |
620 |
|
|
|
Machine weight |
t |
12.5 |
|
|
