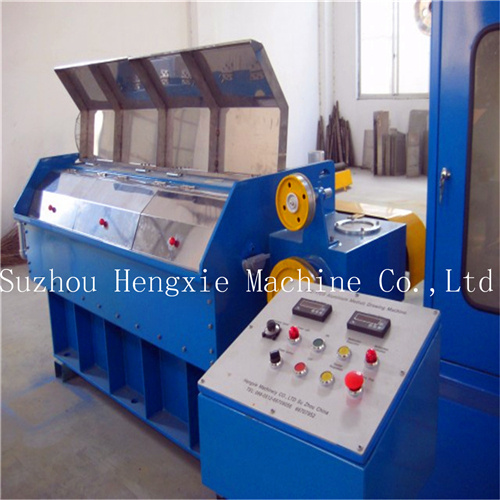

Intermediate Copper Wire Drawing Machine (17MD)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T |
HXE-17MD Copper wire drawing machine
Machine type 17MD
Inlet diameter (mm) φ 2.6-φ 3.0
Outlet diameter (mm) φ 0.4-φ 1.2
Drawing line speed (MPM) 1500
Dies number 17
Slip ratio of m/c 15%
Slip ratio of fix-speed capstan 10%

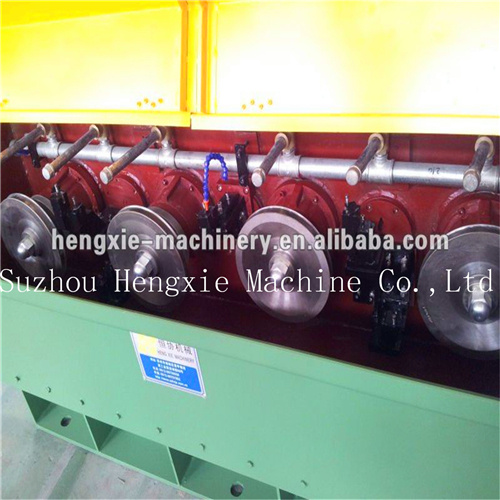

Capstan: Tungsten
Capstan dia. (max. ) (mm) φ 254
Fix speed capstan (mm) φ 254
Frame Welded by steel plate
Main motor 37KW
Spooler motor 11KW
Revise system PID synchronous control spooler
Transmission type By chain
Traversing unit 90W strap speed-down Motor type
Tension control by air pressure adjust
Lubrication system of wire drawing: Spray type+Water inmmersion type
Suitable diameter of spool(mm) 400mm 630mm
Capacity for wire receiving(kg): 200-500
Bobbin loading & unloading type: dual end thimble
Power source: 380V 50/60HZ
Brake: Disc brake
Machine compostions:
Pay off
17MD drawing machine
Tension controller
630 take up machine
Electrical control cabinet
Console
| Prod Model: |
17MD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inlet Diameter: |
2.6-3.0mm |
| Machine Weight: |
5500kg |
| Warranty: |
1year |
| After Service: |
Engineer Available to Overseas |
| Color: |
Blue/Customized |
| Popularity: |
Hot/Onsales |
| Type: |
Horizontal Metal Drawing Machine |
| Usage: |
Rope Wire |
| Max.Inlet Wire Dia.: |
2.6mm-3.2mm |
| Outlet Diameter: |
0.4mm-1.2mm, 0.4-1.2mm |
| Max. Number Of Block: |
17 |
Suzhou Hengxie Machinery Co., Ltd. Locates in Yinghu Industrial Zone, Wangting town, Suzhou Hli-New District, near to G312 with a conveninet transportation and nice environment. It is a professional company which specializes in electronic cable, electromagnetic cable, electrical wire eat. It is at a leading position in this line because of the topping managing talent and advanced technics.
Hengxie has invested RMB ten Millons to introduce the Germany equipments and technics and developed the cable producing line by itself. This ensures the quality stable and capability superior. Hengxie has successfully set up a superior enterprise mode.
With the mange concept"Stable Quality, Mutual Development" Hengxie warmly welcome alll the friends to grant the changefor sincere cooperation and win the mutual benifit in the future.
