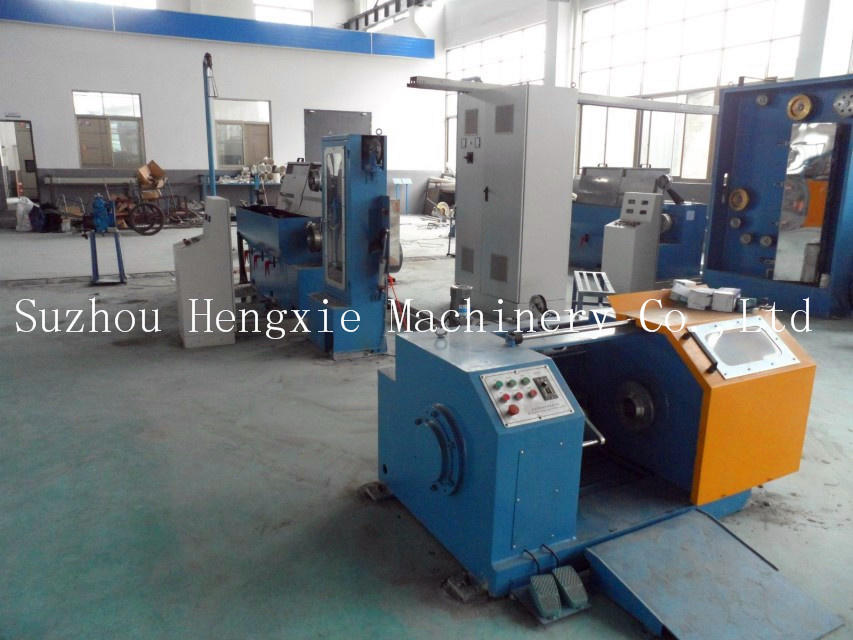

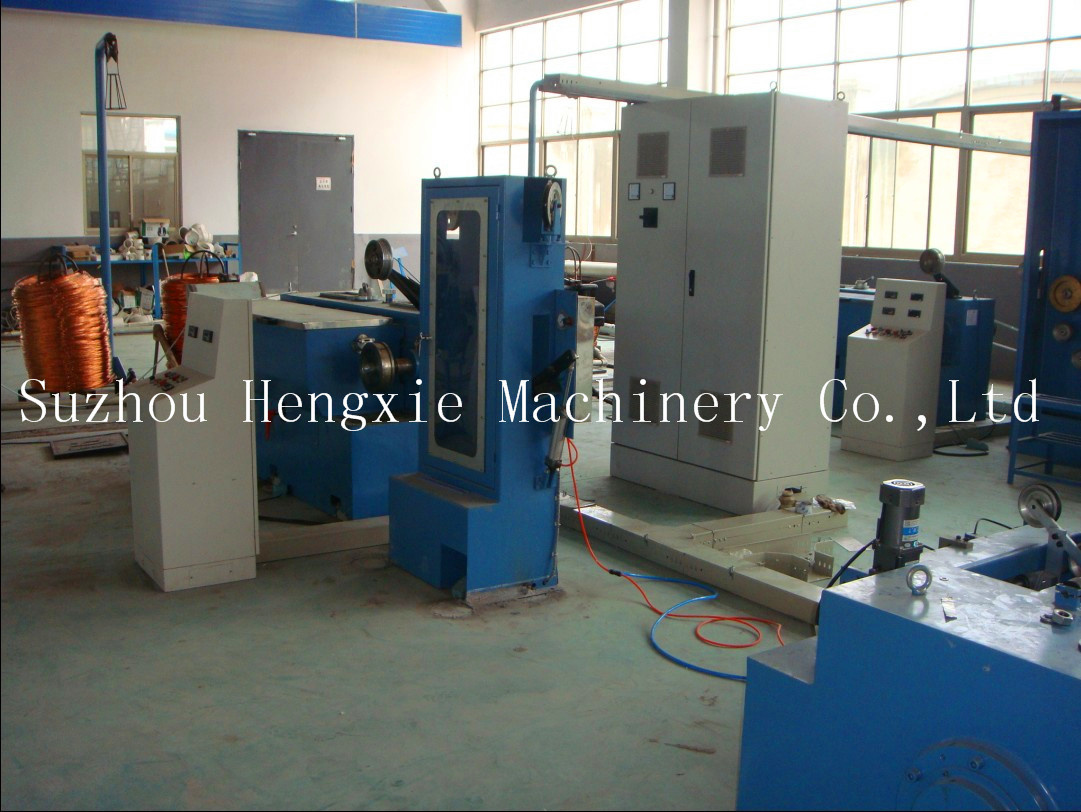

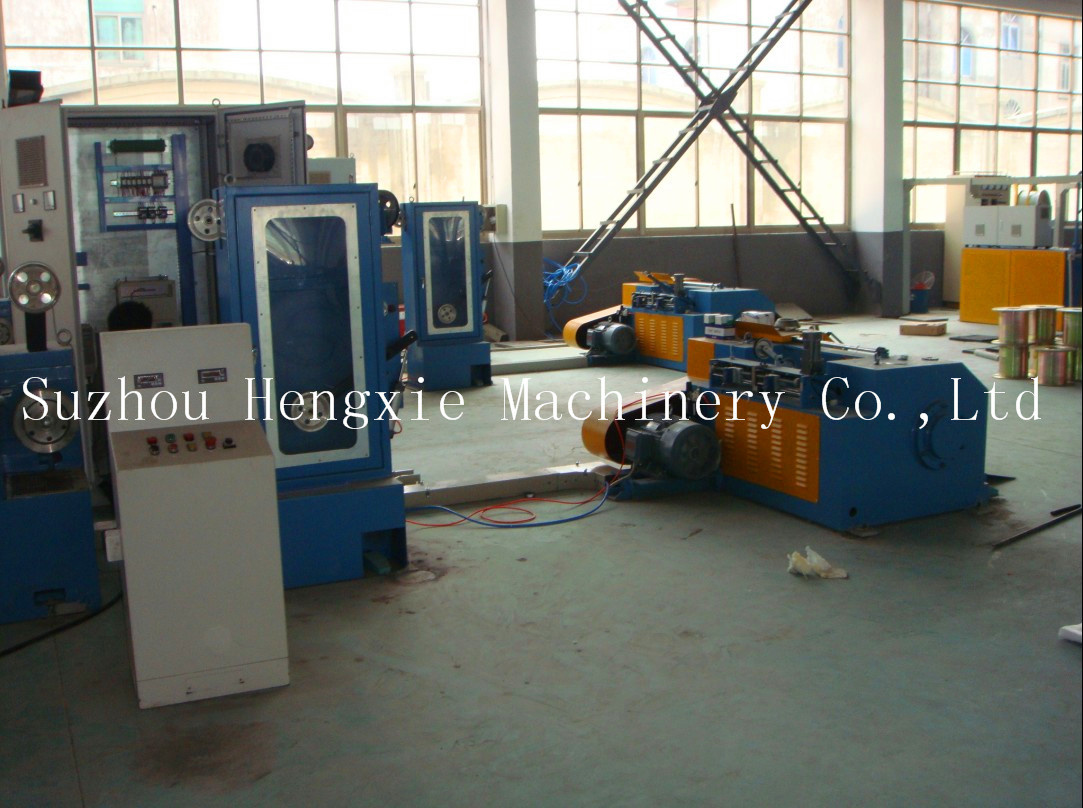

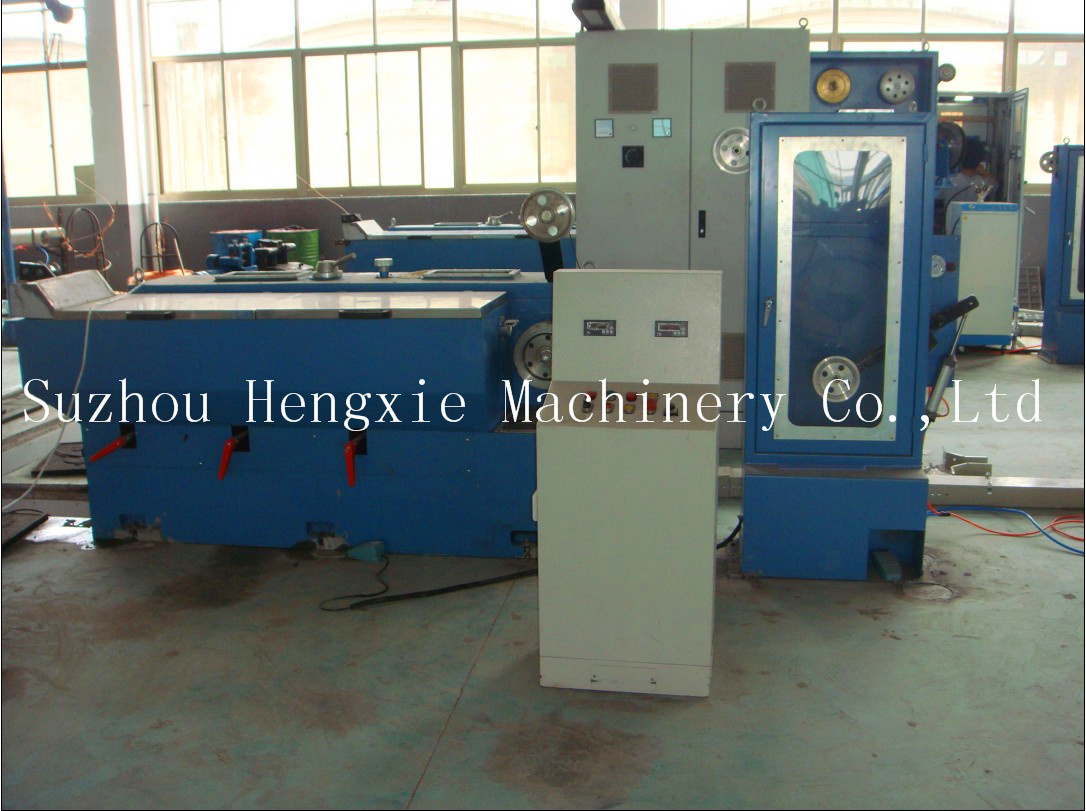

Intermediate Copper Wire Drawing Machine (HXE-17DS)

Intermediate Copper Wire Drawing Machine (HXE-17DS)
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
HXE-17DS Medium copper wire drawing machine

Technoic Detail

Control systemTraditional analog type
Inverter control5Dual inverter control
Inlet size2.6mm-3.2mm
Outlet size0.4mm-1.62mm
High speed 2000m/min
Dies17
Slip ratio of m/c20%+15%
FrameIron cast
CapstanCeramic plasma or Tungsten
Capstan diameter250mm
Fix speed capstan diameter250mm
Bobbin size400mm-630mm or customized
Bobbin loadingDouble end thimble
Traversing unit90W strap speed-down Motor type
Main motor55KW or customized
Spool motor11KW or customized
Transmission typeChain
Revise systemPID synchronous control spooler
Detecting deviceWeight balance by swing arm
Tension controlAir pressure adjust
Spool capacity500KG
BrakeDisc brake
Lubrication type for bearingoil immersion
Lubrication typeFull dip-in or water immersion+spary type
Power source380V 50/60HZ or customized
Lubrication oil capacity120 liter/min
Dimension5000L*2500W*2000H
Weight3000KG
Prod Model: 17DS
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inlet Diameter: 2.6-3.0mm
Machine Weight: 5500kg
Warranty: 1year
After Service: Engineer Available to Overseas
Color: Blue/Customized
Popularity: Hot/Onsales
Type: Horizontal Metal Drawing Machine
Usage: Rope Wire
Max.Inlet Wire Dia.: 2.5mm-3.2mm
Outlet Diameter: 0.4mm-1.6mm
Max. Number Of Block: 17
Suzhou Hengxie Machinery Co., Ltd. Locates in Yinghu Industrial Zone, Wangting town, Suzhou Hli-New District, near to G312 with a conveninet transportation and nice environment. It is a professional company which specializes in electronic cable, electromagnetic cable, electrical wire eat. It is at a leading position in this line because of the topping managing talent and advanced technics.

Hengxie has invested RMB ten Millons to introduce the Germany equipments and technics and developed the cable producing line by itself. This ensures the quality stable and capability superior. Hengxie has successfully set up a superior enterprise mode.

With the mange concept"Stable Quality, Mutual Development" Hengxie warmly welcome alll the friends to grant the changefor sincere cooperation and win the mutual benifit in the future.
