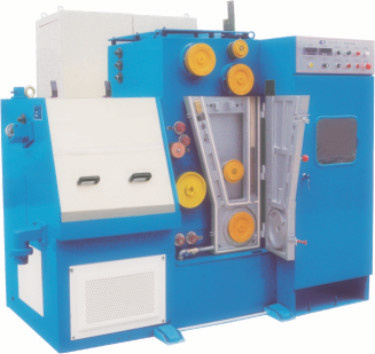

Technical specification
(1) Input wire; Φ1.2 - 1.0mm
(2) Output wire; Φ0.32 - 0.10mm
(3) Production speed; MAX 2000M/Min
(4) Number of dies; 24(provided by the Buyer)
(5) Outer diameter of dies; Φ25mm × 8 - 12mm (thickness)
(6) Mechanical elongation; By the dies from the 1st to 23rd, 13%
By the 24th die, 8.7%
(7) Main motor; 15KW-4P AC motor and 15KW frequency inverter
(8) Take-up motor; 4KW-4P AC motor and 4kW frequency inverter
(9) Annealing capacity: 21KVA
(10)Annealing current: 300A
(11)Annealing voltage: 0~57V
(12)Annealing method: DC contact type/triangular annealing system/fully automatic follow up control
(13) Steam consumption by annealing: 5~6kg/h 0.2~0.3Mpa
(14)Air consumption by annealing: 15~20m3/h 0.4~0.6Mpa
(15)Take-up volume; 50KG/MAX
(16)Take-up reel; Φ300mm/MAX.
(17)Brake; Φ20KG-M Disk type air brake
(18)Power consumption; 10 - 39KW
(19)Machine dimensions; 2950L X 1625W X 1800H (mm)
(20)Machine weight; 3500KG
Dongguan Guanbiao Electrical Machinery Co., Ltd. Was founded in 2003 and is 2003 and is located in Humen Town, Dongguan City, It is a high tech enterprise specialising in research&development of wire and cable machine equipement. Until now, Guanbiao has become a famous brand in the area of wire drawing.
Occuupying an area of over 2000m2, Guanbiao has more than 100 staff, including professional technicians and reaesrches who have rich experience in the R&D and production of electro-technical machinery industry. With the enterprise spirit of "Innovative, Technical, Truthful and Sincere", the pursuit of better service to meet customer requirements, we set up the standard enterprise management system, and passed the ISO9001 quality management system certification. Insisting of our own brand, with the technical and ivnovative attitude, we have many proprietary Patents and we are identified as an Excellent Enterprise, Technical&Innovative Enterprise and Representative of Excellent Private Owned enterprise. In the pursuit of perfection in our prodects and management, we always give the clients the best technical support, and the most advanced innovation a very good reputation and credibility in our field which has obtained as.
Our main products included wire drawing machine, tubular annealing and tinning machine, the output wire size from 4.0-0.015mm, covering essentially a complete range of sizes produced by the wire drawing machine manufacturers, appropriate for all kinds of alloy wire manufacturers. We can supply customers with the most advanced products, high-level quality and sincere service, and we make an effort for each customer to increase production efficiency and innovate solutions.
We are serving nearly 300 enterprises, and making strategic cooperation partners with many outstanding domestic and international and enterprises with our brand strategy and global development, our sales and service network has spread both at home and abroad, successfully entered the Asia market and European market with ahigh reputation. We have distributors in the following countries; India, Vietnam, Thailand, Indonesia, South Korea, Malaysia, Lebanon, Japan, Holland, USA and Mexico.
We are looking forward to cooperate with you from home and abroad.
