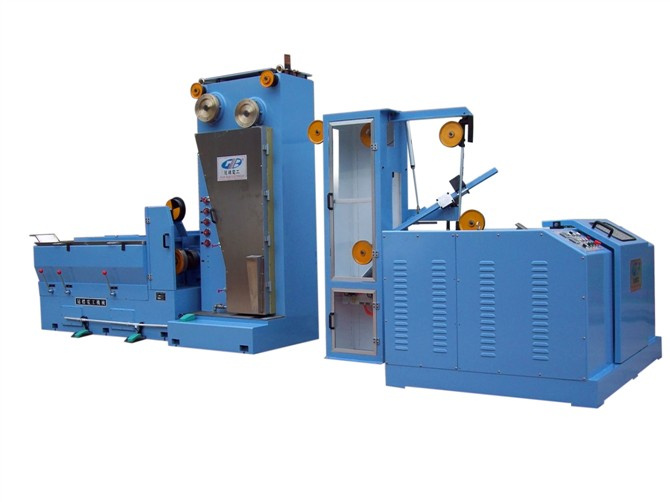

Specifications
suit for 0.4-1.2mm output wire size,stable running and high production.pneumatic or hydraulic,as optional,standard 1500A
Technical parameters;
(1) Input wire; Φ2.6 — 3.0mm
(2) Output wire; Φ0.4 — 1.2mm
(3) Production speed; max 1800m/min
(4) Final capstan; Φ 250mm
(5) Number of dies; 21
(6) Wire drawing lubrication; Lubrication by full immersion
(7) Outer diameter of dies; Φ25mm × 8 - 12mm (thickness)
(8) Mechanical elongation; By the dies from the 1st to 20th, 18.4%
By the 21st die, 15%
(9) Main motor; 55kW-4P AC motor and 55KW frequency inverter
(10)Take-up motor; 11kW-4P AC motor and 11KW frequency inverter
(11)Take-up control;Weight type tension bar,automatic modification and control
of take-up tension
(12)Annealing capacity; Max. 100 KVA
(13)Annealing current;1500A
(14)Annealing voltage; 0 – 60V
(15)Annealing method;DC contact type/triangular annealing system/fully
automatic follow up control
(16)Steam consumption by annealing ;10 – 12kg/h, 0.2 – 0.3MPa
(17)Air consumption by annealing;20 – 30 m3/h, 0.4 – 0.6MPa
(18)Take-up volume; 200kg, max
(19)Take-up reel;Φ630mm,
(20)Brake; Disk type air brake
(21)Power consumption; 60 – 120 kW
(22)Machine dimensions;7000L ×3000W ×3200H (mm)
(23)Machine weight; 7000 kg
