1. 4 dual-action cylinders with movable beam, which rise and fall quickly to generate opening force, reducing electricity consumption and preventing hydraulic pressure oil used from getting hot;
2. Pneumatic rotating mechanism is adopted to achieve multi-step deflation;
3. Automatic mold forward/backward, or squared axis cantilever hanging heating platen applicable for rapid left and right feeding and discharging by adding clamping robot;
4. Unit surface pressure no less than 45kg/cm² To ensure the density of tread
5. PLC controlled
6. Multiple options of layer number and tables.
7. Hydraulic pressure components and electrical equipment imported or of local famous brand, to make sure reliable performance.
|

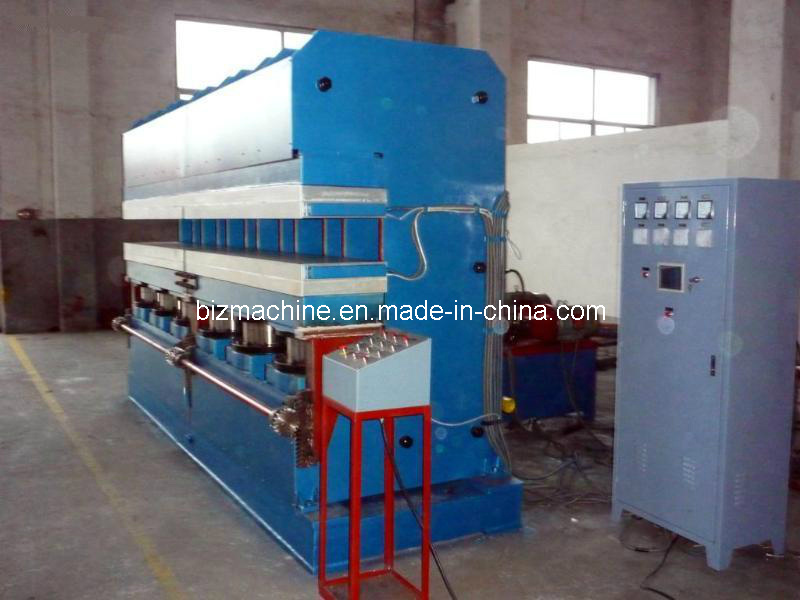

Type |
GHT-600 |
Number of layer |
5 |
|
Clamping forceT |
600 |
Number of cylinderspcs |
6 |
|
Max. stroke(mm) |
450 |
Working pressure Mpa |
20.5 |
|
Cylinder diameter(mm) |
250 |
Weight(T) |
about 26T |
|
Table size(mm) |
4030*360 |
Overall dimensions(mm) |
5470*2280*3285 |
|
Total power(KW) |
7.5 |
|
|
Qingdao Biz International Trade Co., Ltd. is a professional manufacturer and exporter of rubber and plastic machinery in China. Through over ten years' efforts, we have built up complete kinds of products, bought up a lot of experienced technicians and skilled workers with proficient technology. During the past years, we have produced and exported over10000 sets of machines and equipment to clients from all over the world, and helped them obtain great profit and grasped wonderful business opportunities.
We mainly produce and supply the following goods:
Rubber machines: plate vulcanizing presses, vacuum presses, two-roller mixing mills, sheeting mills, refining mills, cracking mills, rubber & plastic dispersion mixers, internal mixers, hot & cold-feeding rubber extruders, rubber calender lines, batch-off coolers, tire production machines, rubber conveying belt production lines, rubber extrusion microwave vulcanizing production lines, rubber salt-bath vulcanizing production lines and other machines
Plastic machines: various kinds of plastic pipe extrusion lines, various kinds of window profile extrusion lines, various kinds of plastic sheets, boards and film extrusion lines, various kinds of single and twin screw extruders and other related goods
Rubber products: all kinds of sealing rings, belt, strips, tubes, and tires
Chemical materials: carbon black, and reclaimed rubber
We can design and produce rubber products and non-standard machines and equipment according to the drawings and requirements of clients.
We have built up a good reputation in international markets and in rubber and plastic industry fields.
It is always our goal to provide satisfactory service to our customers with reasonable price, high quality product, accurate delivery time and all necessary assistance.
We look forward to hearing from you and developing together with you.
