Home Mould Products JD88-A3 Model Two-Step Bottle Blowing Machine

JD88-A3 Model Two-Step Bottle Blowing Machine

JD88-A3 Model Two-Step Bottle Blowing Machine
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Set
Pay Type: L/C,T/T

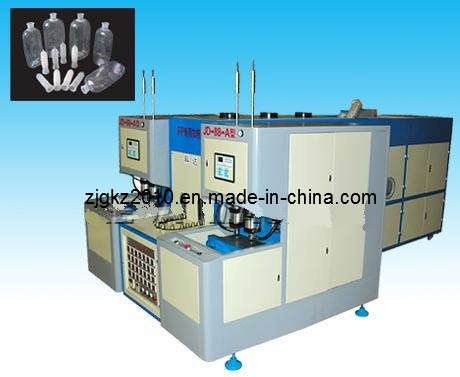

JD88-A3 model two-step bottle blowing machine is special used for the medichine PP bottle blowing.
S/N Item Unit Technical Data
1 Raw material   PET/PMMA/PS/PP
2 Working Pressure(Air) Mpa (0.8-1.25)x2
3 Blowing pressure Mpa (1.0-3.0)x2
4 Voltage/Frequency V/HZ 220V/380/50HZ.60HZ
5 Rated power Heater KW 8(220V)x2
Air Compressor 11(380V)
6 Max mould effective
mm 350x350x250
7 Mould opening stroke mm 170
8 Max mould thickness mm 250
9 Center distance between two cavities mm 80-200(Adjustable)
10 Volume of product ml 10-2000
11 Max stretch length mm 400
12 Clamping force KN 60x2
13 Capacity Pcs/H 1600-2000
14 Machine Dimension Main machine mm (1600x600x1500)x2
Heater 4000x600x1600
15 Machine weight Main machine Kg 500x2
Heater 500
16 Air Compressor Dimension(LxWxH) mm 1800x700x1220
Weight Kg 480
17 Air Filter Dimension(LxWxH) mm (250x250x600)x2
Weight Kg 25x2
18 Frezzed Dryer Dimension(LxWxH) mm 890xx550x1000
Weight Kg 200
19 Temperature range   15-110(PET)
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Zhangjiagang Fengcheng Machinery Manufacturing Co., Ltd. Deals in importing and exporting Machinery. Our company is located in the famous economy booming, culture rich and cleanest city - Zhangjiagang, eastern littoral of China, which links to Shanghai in the east, Suzhou, Wuxi and Changzhou in the west and south. It is convenient in water and road transportation.

We have the first class developing and design system and richly experienced technicians. We mainly manufacture Single/Double plastic extruders, the whole production lines for HDPE silicon core pipes, PPR pipes, lacunars pipes and multiunit tubes, Double plastic extrusion pipes, tubes production lines, prilling production lines, thermostat cooling and dry lines, loading materials machines, grinder and breakers lines, compounding mixing lines, water temperature controlling systems for forming plants, dehumidifying and dry lines and other auxiliary devices. We also domestic and overseas the turnkey projects for various plastic machines.

We are sincerely providing customers automatic washing, filling and sealing assembly production lines for purified water, spring water, fruit juice drink, lactic acid drink, gas containing drink, wine, flavoring and strong tea drink. We also provide the while set water treatment production lines for automatic washing, filling, and sealing for barrel drinking water. We can meet customers' special needs to make beverage machinery within their different production conditions and capability. With excellent performance, good service and advanced technology of the world, our products are delivered to every part at home and abroad. They are fully trusted by customers.

The main objective of our company is to supply first class quality goods. We will apply ourselves to produce suitable machine matched with different requirements for customers, with our rich technology and advanced processing techniques.

During development, our company insists on the management principle of people oriented, market competition is people competition and focusing on training employees' skill and strengthening their principle of service. We are adhering to the tenet of setting up a good working condition for employees who can develop our company.

We seriously promise to provide high quality goods, professional service and advanced technology to all of our customers. Our company would like to establish windowing cooperative relationship and get bright future with worldwide friends on the basis of mutual benefits.

As we have different series machines, we export all machines under Zhangjiagang Kezehng Trading Co., Ltd company ahead. We are the same company, please kindly note.
