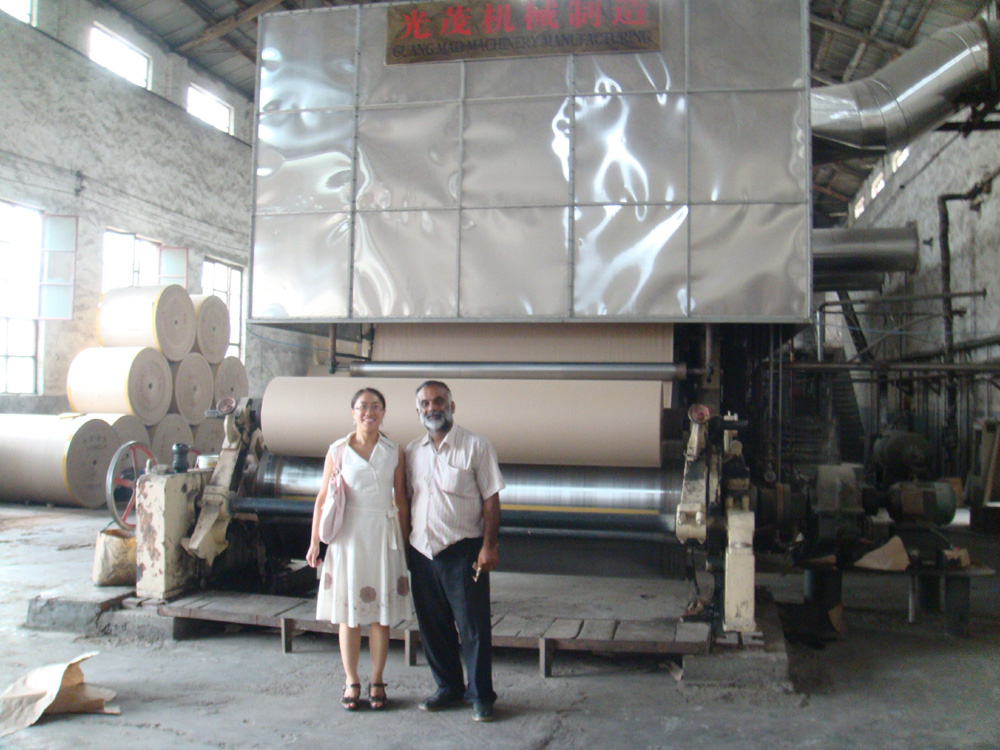

1092mm double-dryer can and double-cylinder mould kraft paper machine
I. Technical parameter:
Raw material: Recycled paper;
2. Output paper style: Kraft paper;
3. Output paper weight: 110-240G/M2;
4. Net paper width: 1200mm;
5. Capacity: 8T/D;
6. Width of cylinder mould: 1450 mm;
7. Rail gauge: 1800 mm;
8. Drive way: Alternating current, frequency conversion, speed control, section drive;
II. Structure and characteristic of main part:
1. Cylinder section: Φ 1250mm× 1450mm stainless steel cylinder mould 2 sets, Φ 450mm× 1450mm couch roll 2 set, φ 400× 1450mm reverse roll 1set, coated by rubber, rubber shore hardness 38± 2.
2. Press section: Φ 450mm× 1450mm marble roll 1 set, Φ 400mm× 1450mm rubber roll 1 set, coated by rubber, rubber shore hardness 90± 2.
3. Dryer section: Φ 2000mm× 1450mm cast iron dryer can 2 set, Φ 400mm× 1450mm touch roll 1 set, coated by rubber, rubber shore hardness 90± 2.
4. Drive way: Alternating current, frequency conversion, speed control, section drive;
5. Pneumatic compression device.
NO.
|
Item |
Qty(set) |
|
1 |
1092mm Kraft paper machine
|
1 |
|
2 |
exhaust hood of dryer can(double layer)
|
1 |
|
3 |
Φ 700mm axial-flow ventilator
|
1 |
|
4 |
15 type roots vacuum pump |
1 |
|
5 |
1092mm winding machine |
1 |
|
6 |
1092mm calendar |
1 |
|
7 |
1092mm rewinding machine |
1 |
|
8 |
5 m3high consistency hydrapulper |
1 |
|
9 |
2 m2high frequency vibrating screen
|
1 |
|
10 |
8 m2cylinder pulp thickner |
1 |
|
11 |
0.6 m2pressure screen |
1 |
|
12 |
Φ 380mm double disc pulp refiner |
2 |
|
13 |
600 low consistency sand remover |
1 |
|
14 |
Φ 700mm thruster |
4 |
|
15 |
4inch pulp pumper |
4 |
|
16 |
6inch pulp pump |
4 |
|
17 |
2ton boiler(burn coal) |
1 |
Zhengzhou guang mao machinery manufacturing Co., Ltd. is located in zhengzhou city, China. We are a leading and professional paper machine manufacturer in China.
We specialize in the manufacture of paper machines, paper processing machines and paper machine parts.
Our company has perfect service system. We have experienced engineer teams, who can supply perfect service during the whole deal, including technology consultation, civil work design, project evaluation; Installation and testing the whole production line; Training engineers and workers; Meanwhile, we also supply spare parts for long time and manufacture machines in accordance with customers' special requirements.
1. Following is main introduction of our company:
(1) total area of factory: 20, 000m2;
(2) total qty of workshop: 4;
(3) workers: 110 workers;
(4)engineer qty: 25 engineers;
2. Why you choose us?
(1) professional engineer team with 30years experience;
(2) we can supply you turn -key solution without any trouble;
(3) we have strict quality control system and ensure there is no unqualifiedly product;
(4) professional installation technician and clear technical training for your workers;
(5) strict recalling system: If any problem of machine, we will recall it and change a new one for free;
3. About shipment:
1. Sea transportation and rail way transportation is our main shipment way.
2 the delivery time is decided by your the machine model, we can also adjust delivery time according to your special requirement;
We hope to establish friendship and business relationship with friends from all over the world.
