Introduction:

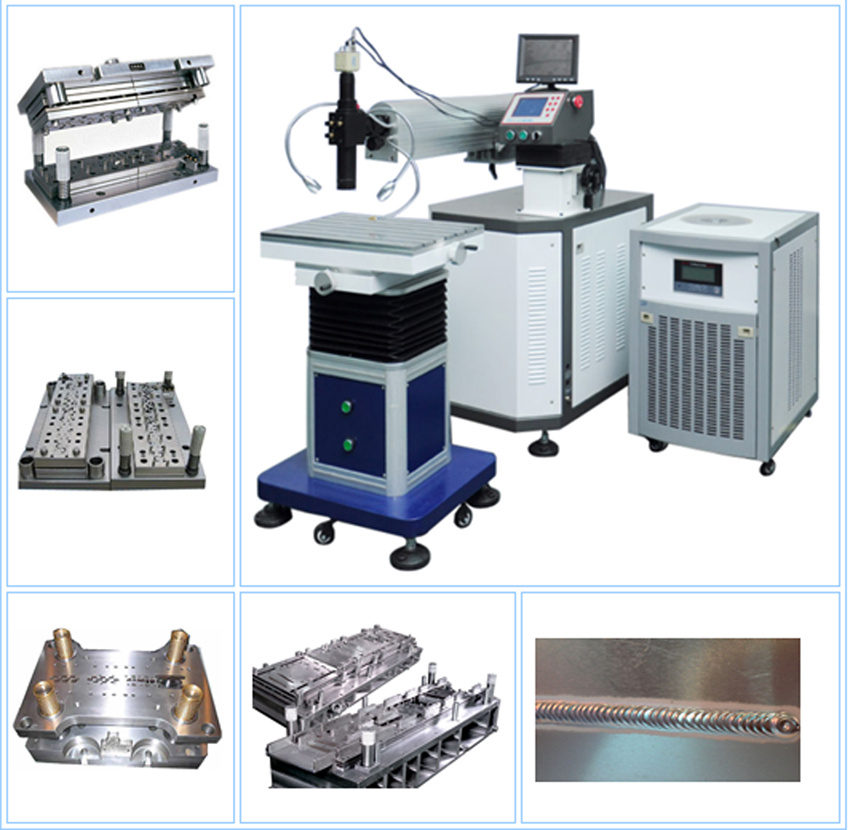

KRWY series mould laser welding machine is a specially designed for mould industry, suitable for repairing medium & small size moulds and machinery parts. It is the application of laser local deposition welding technology in the field of tools and moulds.
Features:
1. It adopts imported ceramic condensing cavity which has long life time as 8 to 10 years and features of anti-corrosion and high temperature resistance. And the working life of Xenon lamp can reach 10 millions.
2. Advanced the state-of-the-art automatic shading system, limit the damage to eyes.
3. Unique design makes it suitable for repairing all kinds of large, medium and small size moulds.
4. High flexibility that the laser head and optics can rotate 360 degrees, worktable can be automatically up and down.
5. Small welding spot and welding seam, neat and nice effect. The work piece doesn't change color and can directly for grinding & polishing after welding.
Application Industries:
It is customized for the mould industry, and suitable for all kinds of large, medium and small mold repair.
Suitable Materials:
A wide range of welding materials including cold-work high alloy steel, hot forging high alloy steel, nickeliferous tool steel, high-grade steel, steel alloy, BeCu, high toughness aluminum alloy and etc.
Technical Parameters:
| Type/Parameter | KR-FC20 | KR-FC/FP30 | KR-FC/FP50 |
| Laser power | 20W | 30W | 50W |
Production line
speed | 50-300 M/min |
| Marking speed | 800 cps | 1000 cps | 1200 cps |
| Min. character | 0.15mm | 0.15mm | 0.2mm |
| Marking area | 50mm×50mm-300mm×300mm |
| Marking lines | Without limit |
| Marking information | QR Code/Bar code/Date/ Time/Serial Number |
| Marking method | Alternate or Combination of Dot-matrix and Vector scribing |
| Document format | PLT,PCX,DXF,BMP SUPPORTED |
Overall power
consumption | 400W | 600W | 800W |
| Cooling method | Air cooled |
| Environment humidity | 10-95% non condensing |
| Environment temp | 5-45ºC |
| Overall dimension | 600mm×760mm×1600mm |
| Total weight | 150KG |
Shenzhen Kingray Laser Equipment Co., Ltd is located in Bao'an district, Shenzhen, the high-tech coastal city in China. Kingray was founded in 2008 (previously named Tongchuang Laser, founded in 2005), a high tech enterprise specialized in design, manufacture, marketing and post-sale service of industrial laser applications such as UV laser for micro cutting, precision fiber laser cutting, various types of laser welding and laser marking, integrated seamlessly industrial robot for production lines.
Kingray has equipped the most advanced production and testing equipment like Renishaw laser interferometer & 2D photogrammeter, Coherent laser power meter and etc. Kingray has a professional develop&research team with staffs in optics, electron, precision machinery and software control. Kingray has got the ISO quality system identification and holds dozens of patents and two software copyright in laser equipment filed. Kingray's products are with excellent performance, easy to operate and maintain, widely used in LED lighting, auto parts, plumbing, sanitary ware, electromagnet&cell, sensors, precision machinery, jewelries, fiber glass, engraving of bamboo ware & wood, gifts, food packaging, tobacco packaging, Logo marking, engraving, welding and precision cutting of 3C digital parts like iPhone, Samsung, Huawei, Lenovo.
Through the efforts of our professional R&D team, we have developed several types of industry specific laser machines that are integrated seamlessly with industrial robot, and have broken through the tranditional manual operation laser process equipments to provide labor-saving and financial-saving to our customers, and earned high recognition from clients.
