Kt-328A Auto-Feeding Aluminum Single Head Saw
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
Single head saw; Aluminum single head saw; Aluminum window door machinery; Aluminum cutting machine

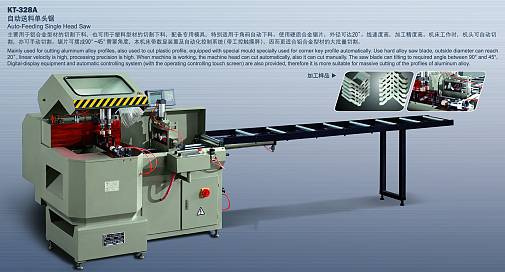

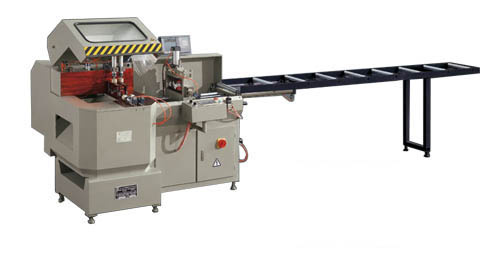

Model Name: KT-328A Auto-feeding Aluminum Single Head Saw
Primarily used for aluminum alloy curtain wall material, window material cutting profile, also used for plastic angle cutting profile, distribution special mould, specially used for angle yard profile automatically. Use carbide alloy saw blade, external diameter can reach to 20 inches, linear velocity is high, and processing precision is high. When machine is working, the machine head can cut automatically, also it can cut with manual. The head of saw blade can with digital-display equipment and automation controlling system (with the operating controlling touch screen), therefore it is more suitable for amount cutting of the materials of aluminum door and window and curtain wall.
|
1. |
Saw cutting length |
10-830mm |
|
2. |
Saw cutting (W× H) |
200x120mm / 230x100mm |
|
3. |
Main motor power |
2.2Kw |
|
4. |
Main motor rotation speed |
2840 rpm |
|
5. |
Saw blade dimension |
Φ 450xΦ 30x120T |
|
6. |
Saw blade swing angle |
90° ~45° |
|
7. |
Saw blade feeding speed |
0~3m/min |
|
8. |
Saw blade retracting speed |
2~3m/min |
|
9. |
Automatically feeding material length |
8~1785mm |
|
10. |
Operation air pressure |
0.6~0.8Mpa |
|
11. |
Overall dimension (Lx W x H) |
2250x1300x1360mm |
|
12. |
Weight |
800KG |
| Prod Model: |
KT-328A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automation: |
Automatic |
| Type For Cutting Machine: |
Auto-Feeding |
| Type For Fold-bending Machine: |
Aluminum Cutting Machine |
| Application: |
Aluminum Window and Door |
| Type: |
Aluminum Cutting Machine |
SHUNDE kingtool aluminum doors and windows machinery Co., Ltd. is a enterprise gathers to research, development, production and management of the integral whole, is a director unit of China Building metals construction association of Developments department, and become the profession standard drafter of national aluminum quality processing machine in 1998 June, the product also acquires the title of honor of "China excellent product".
In the last years, the king Tool group be very grateful for the public trust and involve support, passing by a series effort and the important action, making the KingTool group become the production base of the biggest scale in the domestic investment production, the most maturity in the kit product, the first in product development at the doors and windows construction and the veil wall equipments profession. The company product includes primarily now: the process equipments of aluminum metal alloy doors and windows, the process equipments of plastic steeldoors and windows, the process equipments of glass veil wall, the process equipments of compound aluminum plank and every kind of combination punch equipments, combining can be designed for the customer to manufacture every kind of non-standard equipments and molding tools according to the customer's different need.
The company is strict to regard "KingTool machine, expert's quality" as the principle; with "Beg the solid setting up innovation, solidify enterprising" as the guideline; with the "strive to make country strong, offer the society" as the spirit; with "help the satisfied product in customer's choice" as the tenet, in the foundation of firmly grasp the product quality, not only to provide expert's quality of three stage service system in preceding sell, selling, behind sell for custo-mer, at also to return the free providing the profession information for the custo-mer, providing the different scale install scheme and the factory building project for the customer according to the different district, the different term and requests, letting customer attaining high output to the best with the little devotion, and high-efficiency with low cost.
Because of this kind of honesty exactly, positive and enterprising work attitude, so THE KingTool GROUP has been in the lead position in the same industry, and the sell network is spread al over the market of Southeast Asia, city, autonomous region and each province of nation-wide, make various services more shortcut. In the market economy tide, THE kingTool Group wish to cooperate hand in hand with the public whole in the aspects of marketing, technique, quality and Services more best again, creating fine tomorrow together!
