Large-Medium Copper Wire Drawing Machine with Annealing
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Heng-xiemachinery technology Ltd was established in 2005, specializing in cable series equipments.
Located at Suzhou city which is near Shanghai, Hengxie enjoys convenient transportation
and nice environment.
Our company's main products are as follows: Copper Rod Breakdown Machine with
Annealer, Medium Copper Wire Drawing Machine with Annealer, Fine Wire Drawing Machine
with Annealer,Annealing and Tinning machine, Medium Wire Drawing Machine with Double Spooler
etc. y
Our cable equipments have won its reputation both on domestic and overseas markets by its high
quality, easy operate, less maintain and high productivity. More than 90% cable company are using
our company's equipments including many listed company in Suzhou city.
Our oversea market include India, Brazil, Egypt,Malaysia,Korea,Vietnam,Syria,Kennya
Argentina, South Africa etc

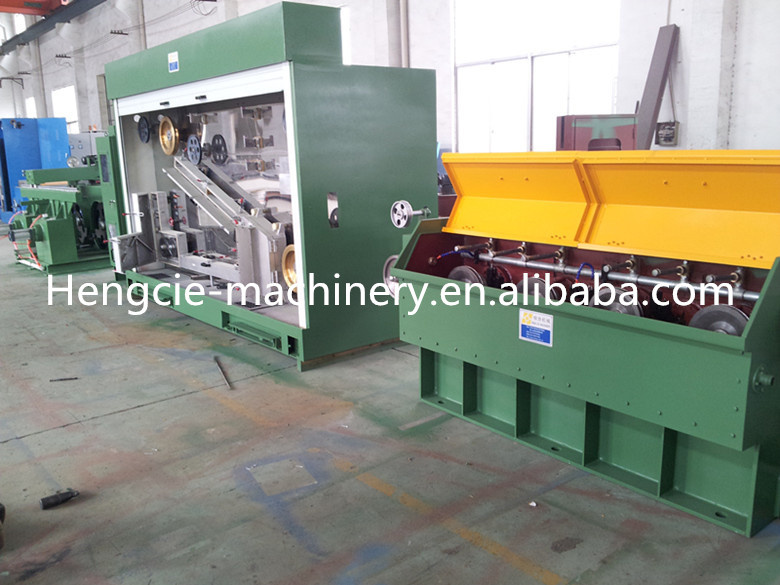

HXE-9DT Rod Breakdown Machine With annealing
Main technical parameter
Machine type | HXE-9DT | HXE-13DT |
Control system | Traditional analog type/digital control with production record |
Inlet diameter | 3.0-3.5mm | 3.0-3.5mm |
Outlet diameter | 1.0-2.8mm | 0.8-2.8mm |
Max line speed | 900 | 1000 |
Die numbers | 9 | 13 |
Slip ratio of machine | 19.6%+12.5% |
Frame | Welded by steel plate |
Capstan | Tungsten |
Max capstan diameter | 280mm |
Fix speed capstan diameter | 280mm |
Spooler bobbin size | 400-630mm |
Bobbin loading &unloading type | Double end thimble |
Max loading capacity | 500KG/MAX |
Annealing method | DC three section annealing |
Main motor | AC45KW |
Spool motor | AC11KWx2 |
Max annealing current | DC3000A |
Max annealing voltage | DC60v |
Annealing power | 180KVA |
Steam quantity | 18kg/h |
Cooling water capacity | 650L/min |
Compressed air capacity | 0.4-0.6Mpa,50L/min |
Power source | 380V 50/60HZ |
Dimension | 13300x3500x3400 |
Weight | 8500KG |
Certification
In Exhibition
| Prod Model: |
HXE-13DT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Customized |
| Aftersales Service: |
Engineer Is Available Overseas |
| Warranty: |
One Year |
| Transmission: |
Gear |
| Business Type: |
Manufacturer |
| Brake: |
Maganetic Brake |
| Quality: |
High Quality |
| Brand: |
Hxe |
| Usage: |
Wire |
| Type: |
Hxe-9dt Rod Breakdown Machine with Annealing |
| Outlet Diameter: |
0.8mm-2.8mm |
| Max.Inlet Wire Dia.: |
3.0mm-3.5mm |
| Max. Number Of Block: |
13 |
Suzhou Hengxie Machinery Co., Ltd. Locates in Yinghu Industrial Zone, Wangting town, Suzhou Hli-New District, near to G312 with a conveninet transportation and nice environment. It is a professional company which specializes in electronic cable, electromagnetic cable, electrical wire eat. It is at a leading position in this line because of the topping managing talent and advanced technics.
Hengxie has invested RMB ten Millons to introduce the Germany equipments and technics and developed the cable producing line by itself. This ensures the quality stable and capability superior. Hengxie has successfully set up a superior enterprise mode.
With the mange concept"Stable Quality, Mutual Development" Hengxie warmly welcome alll the friends to grant the changefor sincere cooperation and win the mutual benifit in the future.
