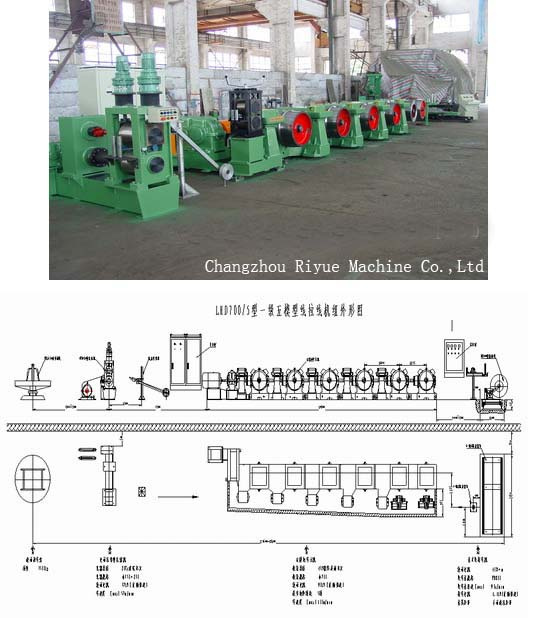

We produce five-die one wire drawing machine for drawing various flat copper wires, round wires, sector shape, heterogeneous wires and trolley wires etc. Its featured by that:
1. The main driving mechanism speed is controlled with frequency change and combined with hard-tooth-face speed reducer; There is no impact upon startup, the speed control range is wide.
2. The wire-out wheel adopts wire-dividing wheel, which can be adjusted for the correct angle according to the flat wire size, effectively promoting the surface quality of the final wire and the forming quality. For this process, the former machine model of our old customers can be renovated to improve the final wire quality.
3. Main equipment technical parameters:
Five die one wire:
1. In-wire: 8-18mm
2. Out-wire area: 25-260mm
3. Drawing wheel diameter: 700mm
4. Wire speed: 10-100m/min
5. Main motor power: 90kw
Wire Drawing Machine.
Changzhou Riyue Machinery Co., Ltd. (former Changzhou Electrical Machinery Factory), having nearly thirty years of machinery manufacturing history, is an enterprise specially engaged in manufacturing electrical machinery products professionally with competitive technological design and product development capability, complete production and test means, perfect pre-sale and after-sale service. The TBJ300, TBJ350, TBJ400 etc copper and aluminum continuous extruders, copper wire and aluminum wire drawing machines are well known in the country and exported to foreign countries and regions such as South Korea, South Africa etc.
The company is ISO9001-2000 international standard certified and successively honored as AAA Credit Standing Enterprise, Provincial Level Advanced Enterprise of Quality Management, Start Enterprise, Changzhou City Civilized Unit, Contract-honoring and Faith-keeping Enterprise etc. The company sticks to develop by relying on good credit standing and to develop by relying on science and technology; keeps carrying out quality management activities in accordance with ISO9001-2000 quality manual, ensuring the customers at home and abroad with satisfactory products that are highly qualified, good in production performance and inexpensive.
The company is located at the south gate of Changhzou City of the well-known the Yangtze River Delta; occupies 36, 000 square meters; has a plant of over 20, 000 square meters, more than 130 staff, and more than 90 various machine tools for production. The environment and infrastructures are complete and well constructed, which is quite convenient in transportation.
