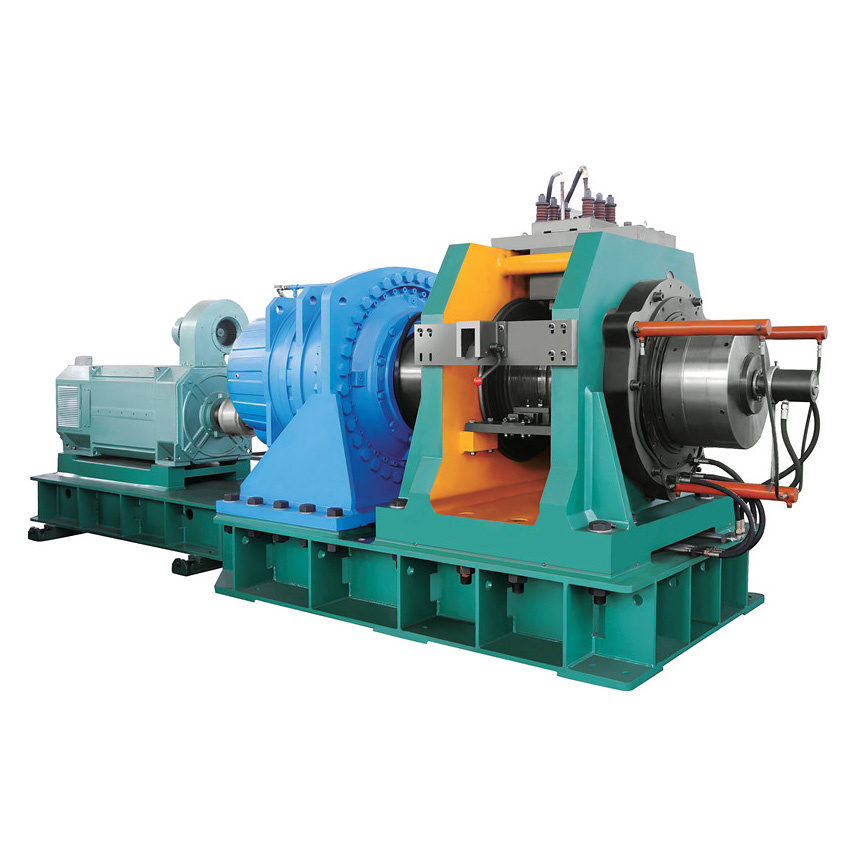

CE certificate TBJ350 Copper/Aluminum continue Extrusion Machine
TBJ350
Characteristics:
1. The extruder can produce various copper flat wire and heterogeneous copper material.
2. It has adopted international advanced techology, arts and crafts and completely changed the traditional way of Wiredrawing handicraft.
3. It can improve the product mass and produce the complicated form product breed at the same time.
4. It has the advantages of simple operation, stable function, unnecessay anneal, and low energy consumption.
5. All of these have greatly reduced the intensity of labour handlingand improved the production environment.
Main Parameter
1 Model: TBJ350
2 Nominal diameter(mm): 350
3 Powerkw: DC180AC180
4. Extruder RPM: 4~12.5
5. Raw material type: Pure copper, copper alloy
6. Raw copper bar: 17mm
7. Max. Product width, diameter Flat copper 100, copper rod45
8. Product section: 450~1400mm²
9. Product width to thickness ratio: 15: 1
10. Production volume: 800kg/h
11. Spewing rate: 1~3
Equipment configuration:
1.1800mm wheel-type wire supply frame: 1 piece
2. Straightening and cutting machine: 1 piece
3. Main machine: (with hydraulic station, lubrication system ) 1 set
4. Cooling system and water tank: 1 set
5. Taking-up machine (Ø 800mm, Ø 1000mm): 1 set respectively (to configure with 350 taking-up machine is to be discussed)
We've been engaged in manufacturing medium and large-sized copper wire drawing machine products for a long time; All the domestication well-known electromagnetic wire and cable manufacturing enterprises use our products; By now, our products have been exported to Malaysia, Iran, Vietnam etc. Now we have developed continuous extruder. Compared with like products, our extruders have features as that two wires can be extruded simultaneously for small-sized type production (under 25mm² ), which on one hand promotes the output volume, reduces energy consumption, promotes the service life of the wearing parts; On the other hand, it can produce products whose size is smaller than single wire (about 5mm² ). Our product has broken through the situation that continuous extruder can not produce small-sized products or the output volume for small-sized products is low.
Changzhou Riyue Machinery Co., Ltd. (former Changzhou Electrical Machinery Factory), having nearly thirty years of machinery manufacturing history, is an enterprise specially engaged in manufacturing electrical machinery products professionally with competitive technological design and product development capability, complete production and test means, perfect pre-sale and after-sale service. The TBJ300, TBJ350, TBJ400 etc copper and aluminum continuous extruders, copper wire and aluminum wire drawing machines are well known in the country and exported to foreign countries and regions such as South Korea, South Africa etc.
The company is ISO9001-2000 international standard certified and successively honored as AAA Credit Standing Enterprise, Provincial Level Advanced Enterprise of Quality Management, Start Enterprise, Changzhou City Civilized Unit, Contract-honoring and Faith-keeping Enterprise etc. The company sticks to develop by relying on good credit standing and to develop by relying on science and technology; keeps carrying out quality management activities in accordance with ISO9001-2000 quality manual, ensuring the customers at home and abroad with satisfactory products that are highly qualified, good in production performance and inexpensive.
The company is located at the south gate of Changhzou City of the well-known the Yangtze River Delta; occupies 36, 000 square meters; has a plant of over 20, 000 square meters, more than 130 staff, and more than 90 various machine tools for production. The environment and infrastructures are complete and well constructed, which is quite convenient in transportation.
