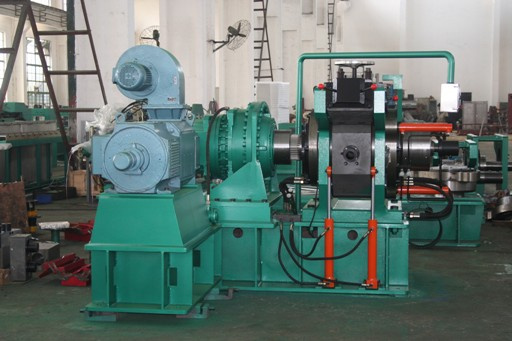

CE certificate TBJ300 Copper/Aluminum continue Extrusion Machine
This production line can be used to produce both copper flat wire and aluminum flat wire, aluminum tube, with one mold two-outgoing lines, this machine is especially suitable to produce the extraordinary small flat wire.
Adervatage:
1. No annealing, energy save, environmental protection and good uniform feature
2. Simple techonology,
3. Product size accurate, a fine finish, prossess good mechanical and electric conduction property
4. Especialy suitable for mass varieties and small batches production, because only need change one mold.
5. The equipment need less land, less operators, lower labor intensity and have less process loss.
With improved production capacity and extended life-span of the mold, the investment cost as well as the production cost is greatly reduced.
Main technical parament:
Type: TBJ300
Nominal diameter of extrusion wheel: 300 mm
Power of the main motor(kw): DC90, DC110, AC110
Rotating speed of extruder: 4~12.5 rmp
Type of material: Pure copper, copper alloy, aluminum alloy
Diameter of wire rod: 12.5(+0.2 or -0.2) mm
Maximum width of the product: 50mm
Sectional area of the product: 10~300 mm*mm
Flakiness ratio of the finished product: <7: 1 or =7: 1
Rate of production: 300~450 kg/h
Flash rate: 1~3
Equipment configuration:
1.1800mm wheel-type wire supply frame: 1 piece
2. Straightening and cutting machine: 1 piece
3. Main machine: (with hydraulic station, lubrication system ) 1 set
4. Cooling system and water tank: 1 set
5. Taking-up machine
Changzhou Riyue Machinery Co., Ltd. (former Changzhou Electrical Machinery Factory), having nearly thirty years of machinery manufacturing history, is an enterprise specially engaged in manufacturing electrical machinery products professionally with competitive technological design and product development capability, complete production and test means, perfect pre-sale and after-sale service. The TBJ300, TBJ350, TBJ400 etc copper and aluminum continuous extruders, copper wire and aluminum wire drawing machines are well known in the country and exported to foreign countries and regions such as South Korea, South Africa etc.
The company is ISO9001-2000 international standard certified and successively honored as AAA Credit Standing Enterprise, Provincial Level Advanced Enterprise of Quality Management, Start Enterprise, Changzhou City Civilized Unit, Contract-honoring and Faith-keeping Enterprise etc. The company sticks to develop by relying on good credit standing and to develop by relying on science and technology; keeps carrying out quality management activities in accordance with ISO9001-2000 quality manual, ensuring the customers at home and abroad with satisfactory products that are highly qualified, good in production performance and inexpensive.
The company is located at the south gate of Changhzou City of the well-known the Yangtze River Delta; occupies 36, 000 square meters; has a plant of over 20, 000 square meters, more than 130 staff, and more than 90 various machine tools for production. The environment and infrastructures are complete and well constructed, which is quite convenient in transportation.
