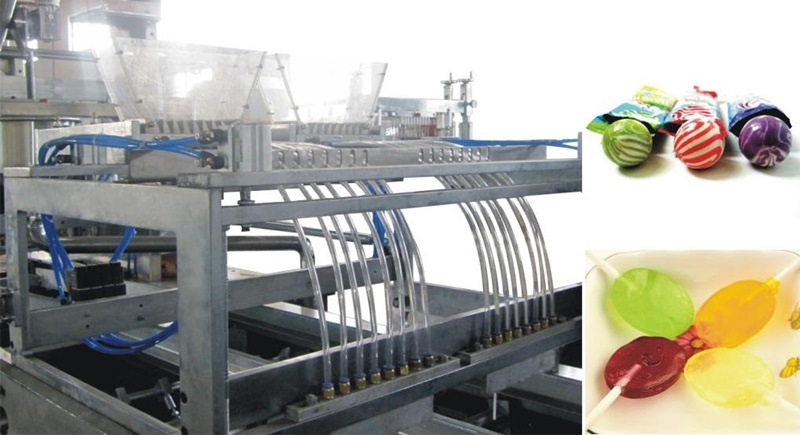

Lollipop Making Machine

Lollipop Making Machine

Product Description:
The SHB series lollipop depositing line is an advanced equipment to produce lollipop. The operation is controlled by a PLC/program for the vacuum cooking, feeding, and depositing. It can be in-line injection, dosing and pre-mixing for the proportional addition of liquid colors, flavors, and acids. The line is composed of cookers, storage tank, micro-film cooker, depositing, moulds and industrial cooling tunnel. It can produce two color striped, two color layers, one color and central-filled lollipop.The line is a full-automatic plant equipped with an automatic stick insertion system.
Moreover, just change the moulds ,tt is available to produce both hard candy and lollipop on the same depositing line.

Parameter:

MODEL	SH150B	SH300B	SH450B	SH600B
Output(kg/hr)	150	300	450	600
Max candy weight	26g	26g	26g	26g
Lollipop Diameter	Flat:18-28mm            Ball:Max 25mm
Depositing speed	55-65n/min	55-65n/min	55-65n/min	55-65n/min
Stick Specification	60-100mm	60-100mm	60-100mm	60-100mm
Compressed air requirement	0.2m3/min, 0.4-0.6Mpa	0.2m3/min, 0.4-0.6Mpa	0.2m3/min, 0.4-0.6Mpa	0.2m3/min ,0.4-0.6Mpa
Working condition	Temp:20-25ºC  Humidity:55%	Temp:20-25ºC  Humidity:55%	Temp:20-25ºC  Humidity:55%	Temp:20-25ºC  Humidity:55%
Total Power	18kw/380V	27kw/380V	34kw/380V	38kw/380V
Total Length	17m	19m	19m	22m
Total Weight	3500kg	4000kg	4500kg	5000kg



  Packaging & Shipping

Port:  XINGANG, SHANGHAI, QINGDAO
Delivery time:  Depending on your orders and mechanical models
Payment term:  30% T/T in advance for deposit, the balance against the copy of the B/L
Packaging:  Single-layer and multi-layer heat sealing materials, such as OPP, CPP, PET aluminum-plated film, aluminum plastic film, paper plastics, paper adhesi, and wooden packing

Our Services

1.We will provide guarantee of the equipment permanently whatever within guarantee period or not, we will react during 48 hours after received the fax required to ensure the recovery of buyer's production line first.
2.We will despatch engineers to working place of buyer and guide the workers to install and operate the equipment, and to install the water,electric appliance,and steam connecting with the machine, the buyer should pay the technicians return fly tickets and visa and accommodation and food with 30usd/day allowance.
4.We will dispatch the professional to help buyer major fixing.
5. We will provide the parts of equipment permanently based on the principle of reasonable price and quick delivery to guarantee the machine's function in normal.
6.We will provide the technical guiding and support.


Company Information
Hebei Saiheng foodstuff machine Co.,Ltd is an industrial company with rich experience, specializing in the manufacturing of various types of food machine. The company's main products: biscuit production line, cake production line, candy production line, chocolate production line, various kinds of pastry equipment and food packaging equipment. "Good quality is the key to survive, Good credit standing is the key to develop" is the enterprise purpose of SaiHeng. With the management philosophy of "quality, service, innovation", under the efforts of SaiHeng people, the company achieves a rapid improvement in sales value year after year. The company's products are exported to Britain, Japan, Ireland, France, Africa and other parts of the world.

    Nowadays, food safety is becoming a more and more serious problem, China's food machinery equipment upgrading has become a big trend. On the existing technology, Our company constantly introducing foreign advanced technology and continue innovation to make the company's produced equipment gradually in the leading level in the food machinery industry at home and abroad. The whole production line operation, improves the degree of automation, reduces the repair rate, and the production has improved a lot.

    Excellent staff, advanced technology, high quality equipment, strict management, all these make the company continues to growing and products win trusts from all users. In the long process of excellent product quality development, excellent product performance, leading-edge technology, we have established long-term partnership with many large domestic and foreign enterprises. We also warmly welcome all customers to visit our company and to exchange technical information.
