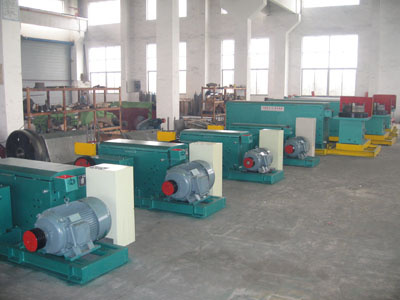

Wet wire drawing machine main technical parameter
| Description | LT21/275 | LT23/280 | LT25/200 (6 shaft) |
| Drawing number | 21 | 23 | 25 |
| Max. inlet wire dia. | Φ1.8mm | Φ1.5mm | Φ1.5mm |
| Min. outlet wire dia. | Φ0.25mm | Φ0.1mm | Φ0.1mm |
| Drawing speed | 20m/s | 20m/s | 20m/s |
| Power | 22kw | 18.5-30kw | 18.5-30kw |
| Transmission type | Synchronous belt driving, AC frequency conversion speed control |
| Cone polley technical condition | Super audio plating WC, guarantee 10,000 hours |
| Cooling system | Cone pulley lubrication submerge type cooling, traction wheel hollow circulating water cooling, suitable for high speed drawing |
| Tension system | Composed by fixed wheel group and pulley group, tension cylinder can adjust |
| Winding device | Ball screw wire rod winding device, AC frequency or servo motor driving.
Make precision & smooth winding displacement |
| Steel wire linearity | Design and equip various types of on line straightening device, circle diameter of finished production is stable, solve the problem of steel wire head lift up |
| Wire take-up type | I-spooler wire pay-off and take-up machine |
| Control type | AC frequency conversion + PLC program controller + man machine interface + constant tension, whole digital control |
| Drawing material | S.S wire, steel wire for rope, steel cord wire, galvanized steel wire, silicon cutting wire etc. |
Wire drawing machine is customized products, we will precise calculate according to the customer's requirements, providing customers with the most suitable products, the perfect on-site installation and after-sales service.
Our company will provide the whole machine quality assurance for one year, belt and quik-wear parts warranty for 3 to 6 months.
