| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,EXW |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
| Size | LZ250 | LZ300 | LZ400 | LZ560 | LZ600 | LZ700 | LZ900 | LZ1200 |
| Block diameter mm | 250 | 300 | 400 | 560 | 600 | 700 | 900 | 1200 |
| Max inlet wire tensile strength | ≤300 | |||||||
| drawing passes | 2~12 | 2~12 | 2~12 | 2~13 | 2~9 | 2~9 | 2~9 | 2~9 |
| Max inlet wire diameter mm | 2.5 | 2.8 | 4.2 | 6.5 | 8 | 10 | 14 | 16 |
| min finished wire diameter mm | 0.3 | 0.6 | 0.75 | 1.35 | 1.6 | 2.2 | 3 | 3 |
| max drawing speed m/s | ~20 | ~20 | ~20 | ~15 | ~12 | ~10 | ~8 | ~6 |
| drawing power kw | 5.5~7.5 | 7.5~11 | 7.5~22 | 22~55 | 22~75 | 45~90 | 90~132 | 90 ~160 |
| block | use cast steel spraying tungsten carbide (or bead weld abrasion-resistant alloy),hardness HRC>60, good abrasion performance.cooling style adopt narrow slit type cooling and annular air cooling. | |||||||
| drive system | LZ350-LZ560 type wire drawing machine use first class or second class strong narrow V belt drive, transmission stable.LZ450-1200 use first class strong narrow V belt+first class hard tooth face gearancillary drive,high contact ratio and overlap ratio , transmission stable,low noise;also can use first class strong V belt+standard hard tooth face gear drive. | |||||||
| die bos | water cooling,can adjust up,down, left,right,euip pressed wire device.decrease wire vibration,not easy to rise unqualified wire, can choose rotating die box,pressure die box and die box stirring device | |||||||
| tuning device | Tunning roller suface painting , Wear Resistance,use pneumatic back tension tunning, tension can tune constant | |||||||
| control type | Ac frequency speed adjustment, PLC Full Digitalization control, man-machine interface touch screen | |||||||
| wire pay off type | hydraulic high rack wire pay off or "I" spooler wire pay off machiine | |||||||
| wire take up type | "I" spooler wire take up machiine or non stop coiler | |||||||
| Pos. | Item acceptance | Requirement |
| 1 | position and height of the equipment | adjust the level, height tolerance between the inlet and outlet no more tham 2mm |
| 2 | Fixture of the equipment | Fixed solid, no violent dithering phenomenon during operation |
| 3 | Water tube, air tube, oil tube | No leaking, no air leakage, no oil leakage |
| 4 | No-load test | 1. Running normally, can not have the phenomenon such as jam, violent vibration and sound 2. Each drum speed matching 3. The action of the switch button is normal |
| 5 | Equipment load test | Equipment operation is normal, qualified product quality, equipment performance is stable |

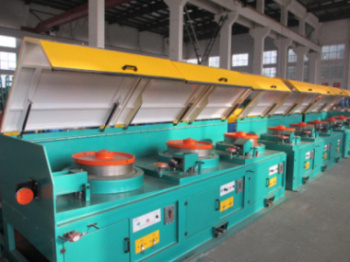

| Prod Model: | LZ600 |
|---|---|
| Markets: | Eastern Europe,Southeast Asia,Africa,Mid East |
| Type: | LZ Straight-Line Metal Drawing Machine |
| Usage: | Prestressed Steel Wire |
| Certification: | CE |
