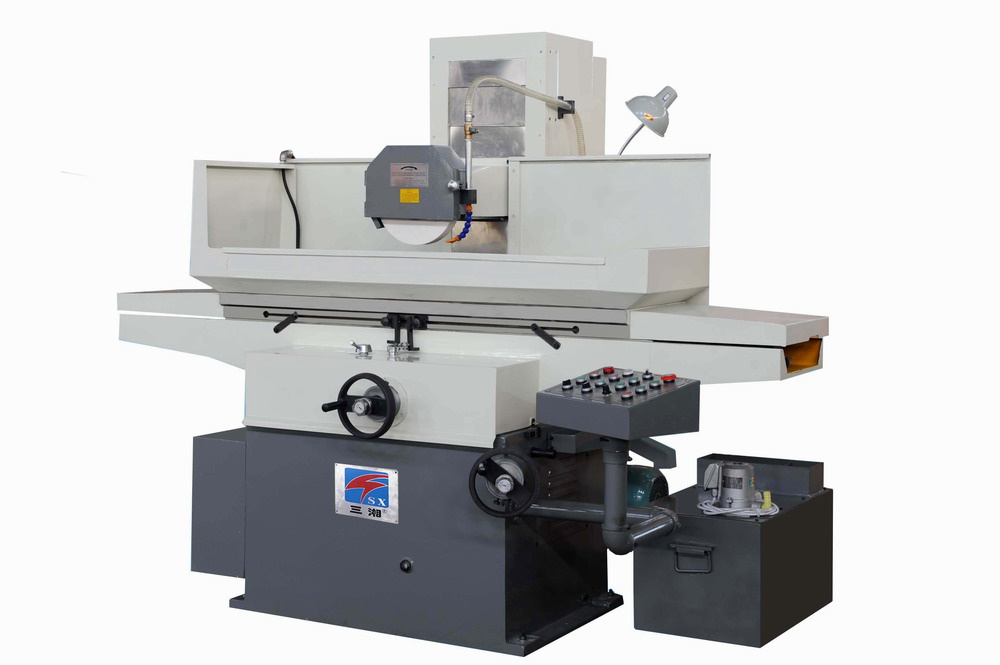

Usage and structural performance
This machine is widely used in the aerospace, military, automotive, equipment manufacturing, precision measuring tools, molds, electrical components, hardware steel, castings and non-ferrous materials grinding, as well as teaching practice.
The product carries out national standard, adopts Carriage movable structure, with the boot automatically lubricating function, machine is stable and reliable.
"
The longitudinal direction of machine table is hydraulic drive, and stepless. The cross travel of the carriage adopts inverter motor drive. The grinding head is drived by precision ball screw and equiped with Quick elevating and manual elevating. Feed is high sensitivity. Machine load is strong. "
Grinding wheel spindle adopts high-precision angular contact bearing, high rotary precision, Grinding effect is good.
The machine is easy and simple to handle, with High accuracy, low energy consumption and high Cost-Effective.
| Main Specifications | Unit | M7130/T |
Working table |
Table working surface (W× L) | mm | 300× 1000 |
Max. Grinding-size (W*L*H) | mm | 300× 1000× 400 |
Table Longitudinal travel (Hydraulic) | mm | 200-1050 |
Working table speed (stepless) | m/min | 3-23 |
Number of Table " T" slots | / | 3 |
| Width | mm | 18 |
Table load (including electromagnetic chuck) | kg | 468 |
Electromagnetic chuck size (W*L) | mm | 300× 680 |
Carriage |
Max. working table (carriage) cross travel | mm | 325 |
Cross feed handwheel feed per revolution | mm | 4 |
Min. feed of cross handwheel | mm | 0. 02 |
Carriage cross speed (stepless)
continuous
intermittent |
m/min
mm/time |
0-0.7
0.3-13 |
Grinding head |
Distance between Grinding wheel center and table | mm | 150-550 |
Every turn feed (manual) of grinding wheel vertical feed | mm | 0.2 |
Min. feed of vertical feeding wheel | mm | 0.005 |
Grinding wheel size (OD*W*Inner Diameter) | mm | φ 300× 40× φ 75 |
Motor capacity |
Electrical equipment total capacity | kVA | 10 |
| Grinding wheel motor capacity | kw | 4 |
| Speed | r/min | 1450 |
| Hydraulic Pump motor capacity | kw | 2.2 |
| Speed | r/min | 960 |
Working Accuracy |
The Working surface to base level parallelism | mm | 300: 0.005 |
Surface roughness | µ m | Ra0.32 |
Complete machine Parameter |
Overall dimensions (L× W× H) | mm | 2480× 1680× 1750 |
Packing case dimensions (L× W× H) | cm | 315× 179× 225 |
| N. W | kg | 2000 |
|
|
|
|
| Standard accessories |
electromagnetic chuck |
grinding wheel dresser
(Without diamond-pen ) |
balancing shaft for grinding wheel |
Level bolts |
grinding wheel |
Wheel flange |
Wheel balancing device |
Tools (see packing list) |
