Home Mould Products M7140 Surface Grinding Machine with Saddle Built-in

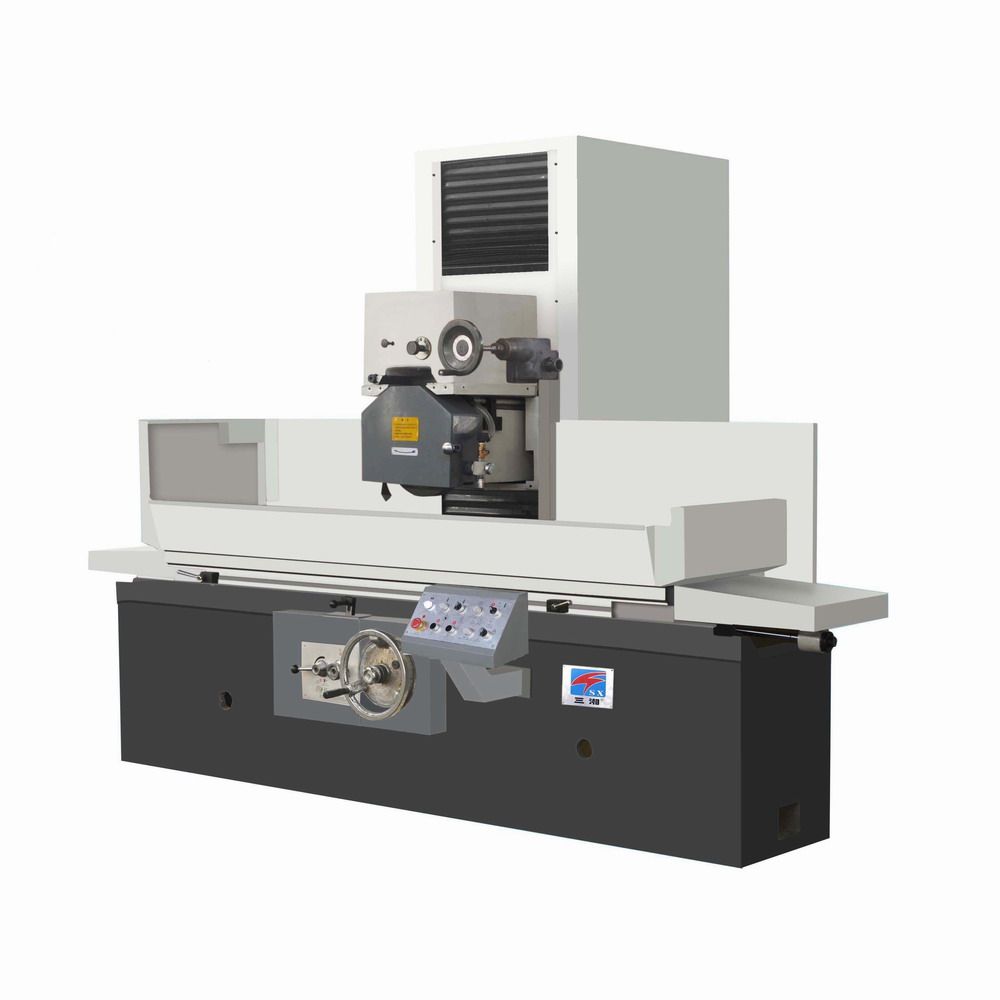

M7140 Surface Grinding Machine with Saddle Built-in

M7140 Surface Grinding Machine with Saddle Built-in
Price: Negotiableset
Trade Terms: FOB,CFR,CIF
Min Order: 1set
Pay Type: L/C,T/T
Contact Supplier
Changsha Jinling Machine Tool Co., Ltd.
Showroom Product Company Profile
Use and performance
" This machine is widely used in the aerospace, military, automotive, equipment manufacturing, precision measuring tools, molds, electrical components, hardware steel, castings and non-ferrous materials grinding.

Fully implement the national standards and industry standards;
The surface grinder has good rigidity for its itegral bed, Gantry column and cross worktable
Longitudinal movement of worktable and crossfeed movement of wheelhead are driven by hydraulic in stepless speed regulation., The surface grinder which has 2000mm or more than 2000mm working length adopt independent petrol station.
The wheelheade is driven by embedded motor, The vertical feed of wheelhead equipped with rapid lifting mechanism and manual lifting mechanism
M7140/N-SF  Surface  Grinding  Machine
Main  Specifications Unit M7140 M7140× 16 M7140× 20
Table Table  working  surface  (W× L) mm 400× 1000 400× 1600 400× 2000
Max.   size  of  workpiece  to  be  ground  (W× L× H)  mm 400× 1000× 400 400× 1600× 400 400× 2000× 400
Table  Longitudinal  travel  (Hydraulic)  mm 200-1100 200-1700 200-2100
Speed  of  table  (Stepless)  m/min 3-25 3-25 3-25
Table  " T"   slots
Width 		 /
mm		 3
18		 3
18		 3
18
Max. allowable  weight  of  workpiece  (Including  electromagnetic  chuck)  kg 624 1000 1248
Electromagnetic  chuck  size  (W× L)  mm 400× 1000 400× 1600 400× (1000× 2)
Grinding  wheel  head Max.   Travel  of  wheel-head  cross  (Manual  and  hydraulic) mm 450 450 450
Automatic  cross-feed  of  wheel-head  (Stepless)
Continuous
Intermittent
m/min
mm/time
0.8-3.5
3-30
0.8-3.5
3-30
0.8-3.5
3-30
Wheel-head  feed  for  each  turn  of  hand-wheel    Cross
Vertical 		 mm
mm		 3
                                                                        0.5		 3
                                                            0.5		 3
                                                                    0.5
Min.   feed  of  down-feed  hand-wheel  dial  mm 0.01 0.01 0.01
Grinding  wheel  size  (O. D× W× I. D)  mm Φ 400× 50× Φ 203 Φ 400× 50× Φ 203 Φ 400× 50× Φ 203
Electrical  equipment  total  capacity  kVA 14 15 17
Grinding  wheel  motor  power kw 9 9 9
Speed r/min 1440 1440 1440
Work  accuracy Working  surface  to  base  level  parallelism  mm 300: 0.005 300: 0.005 300: 0.005
Surface  roughness μ m Ra0.63 Ra0.63 Ra0.63
Base  parameter Overall  dimensions  (L× W× H)  mm 2800× 1888× 2400 3400× 1888× 2400 4000× 1888× 2400
Packing  case  dimensions  (L× W× H)  cm 270× 210× 276 350× 210× 276 420× 210× 276
N. W kg 4800 6000 6300

Standard  accessories
Electro  magnetic  chuck  Grinding  wheel  flange  Wheel  balancing  mandrel foundation  bolts scraping  board
combination  spanner Wheel  Balancing  stand  Grinding  wheel  dresser  (Without  diamond)  Machine  underlay  Grinding  wheel

Prod Model: M7140/N
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Automatic Grade: Manual
Precision: Normal Precision
Type: Surface Grinding Machine
Controlling Mode: Artificial
Processing Object: Mould
Changsha Jinling Machine Tool Co., Ltd., reconstructured from the state-owned medium firm - Changsha No. 2 Machine Tool Plant - an lathe production plant designated by the former Machinery Ministry with 50 years of experience in machine tool production, is a private joint-stock high-tech enterprise approved by the Changsha People's Government in 2004. Located in No. 628, Lugu Avenue, Hexi, Changsha, Hunan, the company covers an area of 100 mu, the plant area of 30, 000 square meters with more than 500 various types of machining and inspection equipment. With total assets of over RMB 100 million, the company has a wholly owned subsidiary (Changsha Jinze Machinery Co., Ltd. ) and a holding company (Changsha Jinling CNC Grinder Co., Ltd. ).

Our main products are "Jinling"XK series CNC milling machines, XH series vertical machining centers, CKA, CKB, CKC, CKD Series CNC lathes, CW, CJ, CX, CS series horizontal lathes, GMKF series high-speed CNC profiling grinders, CK series CNC slant bed lathes, and JL series CNC piston lathes and others. Products not only are sold in the domestic markets, but also exported to more than 40 countries and regions such as the United States, Germany, Italy, South Africa, Indonesia, Pakistan, Vietnam, and Saudi Arabia. In 2002, the company passed the certification of ISO9001: 2000 Quality Managment System. In 2008, CW series obtained "CE" certification. Jinling products, thanks to excellent performance, high quality, and superior after-sales services, has been well-acclaimed by customers at home and abroad. In 2008, "Jinling" won the title of "Hunan Famous Brand".
