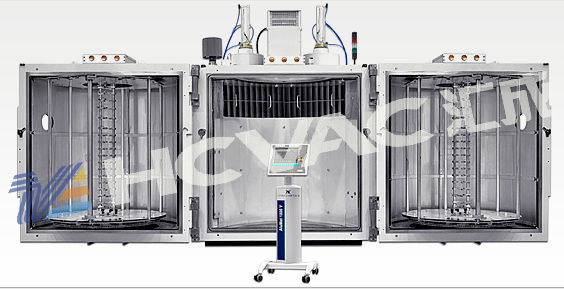

Magnetron Sputtering Chrome Vacuum Coating Machine can coat metal film, TiN, TiC, ZrN, CrN, Ti, Ni, Cr, Cu, Au, and other compounds film, multi-layer super-hard film, nitrogen-doped titanium film and the alloy film, and in a very short time to complete all the machining process, it is a highly efficient multi-functional coating equipment
Golden multi-arc ion plating Machine is extensively used in the fields of ultra-hard coating about the tools and mould, decorative coating about car wheels, ceramics, golf, watches making, hotel product, sanitary ware, luminaires, optical frame, hardware, etc.
Mode
Dimension |
JTZ-1200 |
JTZ-1400 |
JTZ-1600 |
|
1200*1400mm |
1400*1800mm |
1600*1800mm |
|
Film type |
Meal film, translucent film, nonconductive film, electromagnetism shield film, dielectric film, etc. |
|
Power source |
Resistance evaporation power, DC magnetron power, |
|
Sputtering and electrode structure |
Column magnetron targets, plane rectangle targets, twin targets, evaporation electrode. |
|
Vacuum chamber structure |
Vertical double door, Vertical single door, pump system postposition, horizontal single door, pump system for side. |
|
Ultimate vacuum |
4.0*10 -4 pa |
|
Vacuum system |
Diffusion pump +Roots pump +Mechanical pump +Holding pump |
|
Pump time |
Pump from atmosphere to 8.5*10 -3 ,≤15 minutes |
|
Workpiece motion mode |
Public rotation/ Frequency control |
|
Control mode |
Manual/Automatic all in one mode, Touch screen + PLC |
|
Remark |
We can design the dimension of the equipment according to customer's special technique requirement. |
