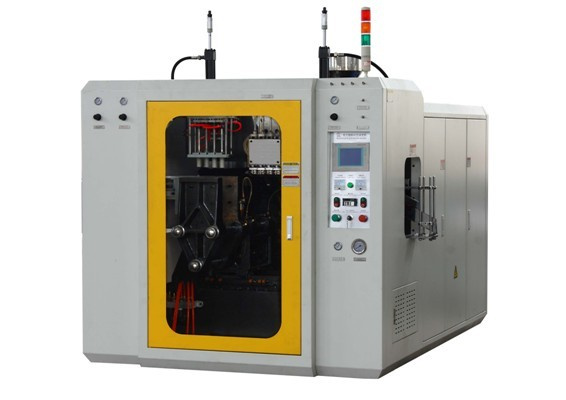

Two stations & Plastic capacity of 30kg &Max volume 1.5 liters & Screw of 50mm
System |
Item |
Unit |
Basic paramters |
Basic Spec
|
Plastic fit for |
|
PE PP PVC PA… |
Max hollow product volume |
L |
1.5 |
Diehead amount |
set |
1 2 3 4 |
Size(LxWxH) |
M |
2.65×1.97×2.15 |
Weight |
ton |
3 |
|
Clamping System |
Clamping force |
kN |
27 |
Template distance |
mm |
110-280 |
Template stroke |
mm |
170 |
Max template size(WxH) |
mm |
320×260 |
Mould thickness |
mm |
115-150 |
|
Extrusion System
|
Screw Dia |
mm |
50 |
Screw L/D ratio |
L/D |
24 |
Plasticizing capacity (HDPE) |
Kg/h |
30 |
Screw heating zone |
zone |
3 |
Screw heating power |
kW |
6 |
Screw fan’s power |
kW |
0.18 |
Extrusion motor’s power |
kW |
7.5 |
|
|
Die head |
Diehead heating zone |
zone |
2 |
Diehead heating power |
kW |
3.5 |
Sprue-die dia(max) |
mm |
50 |
|
Power |
General power |
kW |
24 |
Oil-pump motor power |
kW |
5.5 |
Air pressure |
Mpa |
0.6-0.8 |
Average power |
kW |
14 |
Compressed air dosage |
m 3 min |
0.4 |
Cooling water dosage |
L/min |
30-35 |
Ningbo Beilun Mingda Machinery manufacture Co., Ltd. is located in Xiaogang Export Processing &Trading Zone, Beilun, Ningbo, Zhejiang. It is a modern manufacturer specializing in researching and producing fully automatic hollow blow molding machines. The company has all kinds of advanced automatic mechanical processing equipments and has a group of team-spirited and experienced service technicians providing high.
