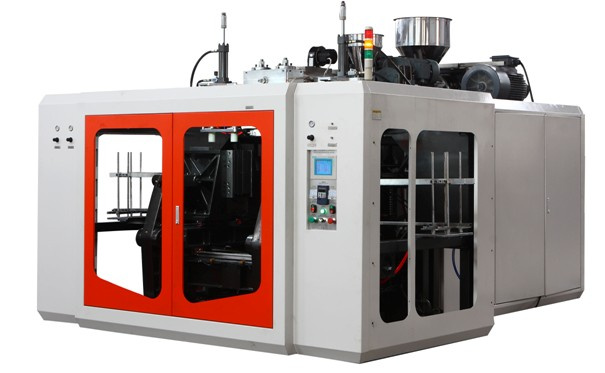

Two stations & Plastic capacity of 130kg &Max volume 12liters & Screw of 80mm & Leverage clamping system
System |
Item |
Unit |
Basic paramters |
Basic Spec
|
Plastic fit for |
|
PE PP PVC PA… |
Max hollow product volume |
L |
12 |
Diehead amount |
set |
Upon 8dieheads |
Size(LxWxH) |
M |
4.23×3.54×2.7 |
Weight |
ton |
4.5 |
|
Clamping System |
Clamping force |
kN |
140 |
Template distance |
mm |
230-580 |
Template stroke |
mm |
350 |
Max template size(WxH) |
mm |
580×550 |
Mould thickness |
mm |
235-300 |
|
Extrusion System
|
Screw Dia |
mm |
80 |
Screw L/D ratio |
L/D |
24 |
Plasticizing capacity (HDPE) |
Kg/h |
130 |
Screw heating zone |
zone |
4 |
Screw heating power |
kW |
25 |
Screw fan’s power |
kW |
0.56 |
Extrusion motor’s power |
kW |
30 |
|
|
Die head |
Diehead heating zone |
zone |
2 |
Diehead heating power |
kW |
13.5 |
Sprue-die dia(max) |
mm |
180 |
|
Power |
General power |
kW |
73.7 |
Oil-pump motor power |
kW |
15 |
Air pressure |
Mpa |
0.6-0.8 |
Average power |
kW |
35 |
Compressed air dosage |
m 3 min |
0.8 |
Cooling water dosage |
L/min |
70 |
Ningbo Beilun Mingda Machinery manufacture Co., Ltd. is located in Xiaogang Export Processing &Trading Zone, Beilun, Ningbo, Zhejiang. It is a modern manufacturer specializing in researching and producing fully automatic hollow blow molding machines. The company has all kinds of advanced automatic mechanical processing equipments and has a group of team-spirited and experienced service technicians providing high.
