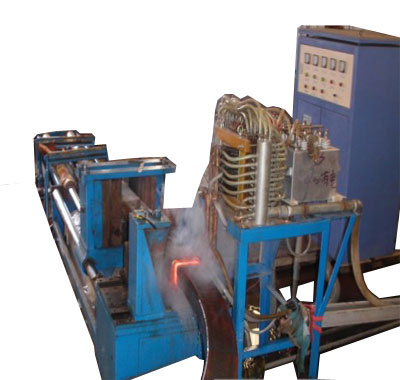

Medium frequency pipe bending machine
Shean engages ourselves in manufacturing high performance medium frequency pipe bending machine that is widely used in the engineering industry.
Specifications of the medium frequency pipe bending machine that we do:
1. Production range: OD21mm-1420mm
2. Radius: 2.5D-10D
3. Thickness: 10mm-80mm
4. Material: Carbon steel, Alloy steel, Stainless steel
5. Drive type: Hydraulic, chain
Operation of medium frequency pipe bending machine:
Adjust radius of bending. Loosen bolt of arm axes, set up control pump, control oil vat will push arm axes to pipe (material), center distance is from pipe center to arm axes center. Turn back flashboard, Screw bolt of am axes and choose suitable coils to tight pipe (material), finally screw arm pole bolt.
More information of our medium frequency pipe bending machine, please contact with us.
|
Serial number |
Max diameter |
Max thickness |
Stroke of cylinder |
Quantity of cylinder |
Max thrust |
|
(mm) |
(mm) |
(mm) |
(piece) |
(t) |
|
|
|
|
|
|
|
1 |
1420 |
20 |
6500 |
4 |
670 |
|
2 |
1220 |
20 |
6500 |
4 |
600 |
|
3 |
1020 |
20 |
6500 |
4 |
500 |
|
4 |
820 |
20 |
6500 |
4 |
400 |
|
5 |
720 |
20 |
6500 |
4 |
320 |
|
6 |
630 |
20 |
6500 |
2 |
300 |
|
7 |
530 |
14 |
6500 |
2 |
160 |
|
8 |
426 |
14 |
6500 |
2 |
130 |
|
9 |
325 |
14 |
6500 |
2 |
84 |
|
10 |
219 |
12 |
6500 |
2 |
65 |
Shean (Cangzhou) Corp Ltd registed in 2011, production line started in 1994. Has technician 10 persons, workers 50 persons, sale clerk 12 persons. For years, Shean helps heavy industrial enterprises gain huge profit domestic and abroad. Shean started foreign business since 2008 as while as good domestic sales. In 2014, Shean will creat another workshop as showroom of various machines running and head office will move to Cangzhou City with 900 square meters.
Our main scope for making and sells are: Induction pipe bending machine, Elbow forming machine, Tee machine, Hydraulic press, Pipe fittings, elbows, tee. "good products and complete after sale service " is our core principle.
Product covers all over the world, like USA, England, Russia, Turkey, India, Poland etc.
Welcome you visit Shean (Cangzhou) Corp Ltd.
