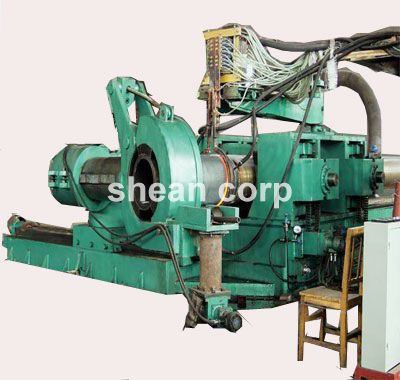

Metal Welded High Pressure Induction Pipe Bending Machine
Metal Welded High Pressure Induction Pipe Bending Machine is leading pipe bending machine for bends.
Summary:
Mechanical structure is very simple.
Stroke of jack is short.
There is no limitation in the length of the radius.
Wall thinning rate is very small, and ovality is small, too.
A necessary bent pipe, when it is necessary, it is bending in the necessary place.
Raw materials of the Metal Welded High Pressure Induction Pipe Bending Machine is as follows: Seamless steel pipe, welded steel pipe, or rolled steel pipe
A. Production range: OD21mm-1420mm
B. Radius: 2.5D-10D
C. Thickness: 10mm-80mm
D. Material: Carbon steel, Alloy steel, Stainless steel
E. Drive type: Hydraulic, chain
Shean Group manufacture Metal Welded High Pressure Induction Pipe Bending Machine in China, also specilized ininduction heating equipment based expansion machine, elbow machine.
Serial number |
Max diameter |
Max thickness |
Stroke of cylinder |
Quantity of cylinder |
Max thrust |
(mm) |
(mm) |
(mm) |
(piece) |
(t) |
|
|
|
|
|
1 |
1420 |
20 |
6500 |
4 |
670 |
2 |
1220 |
20 |
6500 |
4 |
600 |
3 |
1020 |
20 |
6500 |
4 |
500 |
4 |
820 |
20 |
6500 |
4 |
400 |
5 |
720 |
20 |
6500 |
4 |
320 |
6 |
630 |
20 |
6500 |
2 |
300 |
7 |
530 |
14 |
6500 |
2 |
160 |
8 |
426 |
14 |
6500 |
2 |
130 |
9 |
325 |
14 |
6500 |
2 |
84 |
10 |
219 |
12 |
6500 |
2 |
65 |
Shean (Cangzhou) Corp Ltd registed in 2011, production line started in 1994. Has technician 10 persons, workers 50 persons, sale clerk 12 persons. For years, Shean helps heavy industrial enterprises gain huge profit domestic and abroad. Shean started foreign business since 2008 as while as good domestic sales. In 2014, Shean will creat another workshop as showroom of various machines running and head office will move to Cangzhou City with 900 square meters.
Our main scope for making and sells are: Induction pipe bending machine, Elbow forming machine, Tee machine, Hydraulic press, Pipe fittings, elbows, tee. "good products and complete after sale service " is our core principle.
Product covers all over the world, like USA, England, Russia, Turkey, India, Poland etc.
Welcome you visit Shean (Cangzhou) Corp Ltd.
