| Price: | US $ 25000/Set |
|---|---|
| Trade Terms: | FOB,CFR,EXW |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Money Gram |
The first creation of die cutting industry to combine automatic bender and automatic cutter into one set to make highly automated die plates manufacturing.
Two-track design,can work at one time to improve efficiency.
Auto bender track can realize functions of bending,bridge,flat cutting,front & Back lippin for Steel blade/Knife,fast and precision.
Auto cutter Track can realize auto bridge and flat cutting for Steel Rule,simple and practical.
In order to guarantee precision and long-life span,adopt imported transmission and control parts.
Featuers:
1.Posses the functions of bending, bridge, front lipping, back lipping, front flat cutting and back flat cutting.
2.Panasonic servo motor design + Taiwan HIWIN Ball screw guide rail system, with high accuracy of feeding,avoiding skidding and dislocated.
3.Unique imported mold tool design,easy to bend pattern, high precision and more durable.
4.Roller continuous feeding with servo digital work mode.(No need to feed blade or steel ruler repeated, ensure its high accuracy and durable.
5.Rely on the DXF, Auto CAD figures, and do all kinds of complicated patterns.
6.Easy to learn and operate.
7.In order to guarantee precision and long-life span,transmission and control parts are imported.

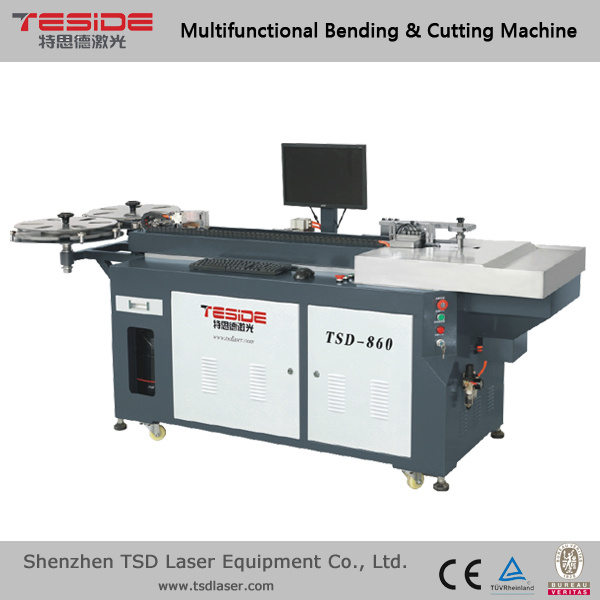

Picture of Steel Rule/Blade Bending Machinery:
Technical Parameter of Steel Blade Bending Machine:
| Model No. | TSD-860 |
| Blade Thickness | 0.45, 0.53, 0.71, 1.05(mm) |
| Blade Height | 8-30mm |
| Max.Bending angle | 100° |
| Min.ARC Radius of 90° Degree | 0.4mm |
| Front Min.Bending Size | 1.5mm |
| Back Min.Bending Size | 1.0mm |
| Feeding Precision | ±0.03mm |
| Bending Flatness | ±0.2mm |
| Functions | Bending,Cutting,Bridging,Lipping,Creasing Line Cutting |
| Cutting Methods | Swaying Off or Auto Flat Cutting |
| Optimal Pattern Format | DXF |
| Barometric Supply | 0.6Mpa |
| Total Power | 2KW |
| Voltage | 380V,50/60HZ (standard),can be customized |
| Over Dimension | 1680X1050X1350mm |
| Total Weight | 450Kgs |
| H.S.Code | 8462219000 |
Suitable Materials:Stainless Steel.

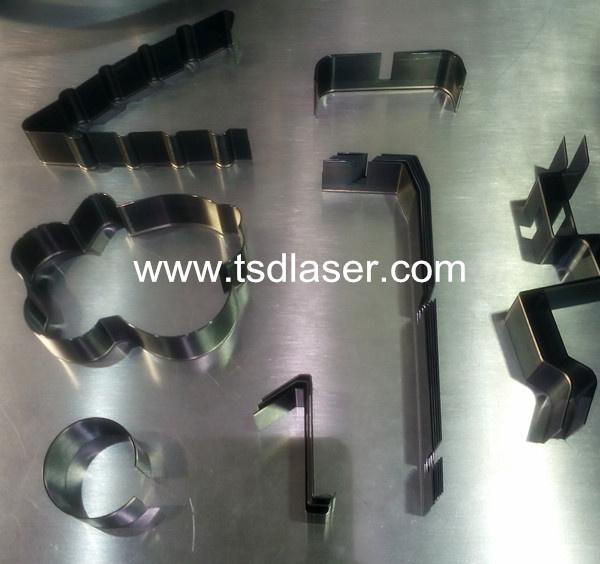

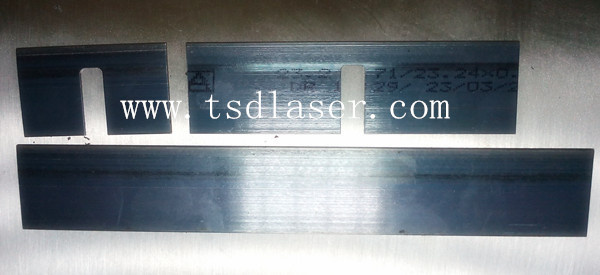

Blade Mould Show:
Package:
Standard Export Wooden Case,which can protect the Equipment well from damage during shipping.
TSD Laser Serice:
Shenzhen TSD Laser Equipment CO., LTD adheres to the customer-oriented service concept, providing complete installation, commissioning, inspection, training, maintenance and other pre-sales and after-sales service.
We are appreciated for your visit our website,any question please feel free to contact us.
Shenzhen TSD Laser Equipment CO., LTD Contacts:Ms.YOYO HUANG |
TEL:0086-755-29776384 | FAX:0086-755-29609023 Mobile:0086-18565729193 | |
| Website:Www.Tsdlaser.Cn | www.Tsdlaser.Com |
It is avaliable to scan Following QR Code to add me Wechat,too,thanks for your attention.
| Prod Model: | TSD-860 |
|---|---|
| Markets: | North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Steel Blade Bending Cutting Machine: | Tsd-860 |
| Process Blade Height: | 8-30mm/23.8-50mm |
| Process Blade Thickness: | 0.45mm, 0.53, 0.71mm, 1.05mm |
| Functions: | Bending, Cutting, Lipping, Bridge |
| Max. Bending Angle: | 100° |
| Power: | 1300W |
| Bending Flatness: | ±0.2mm |
| Optimal Pattern Format: | Dxf Format |
| Machine Weight: | 450kgs |
| Dimensions: | 2700X1050X1350mm |
| Application: | Machinery & Hardware |
| Type For Fold-bending Machine: | CNC Fold-bend Machine |
