Characteristics

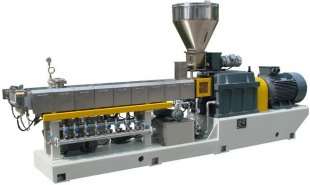

TSK Parallel twin-screw extruder is a kind of high-efficiency compounding and extruding equipment. Its core section is composed of "00"type barrel and two screws, which mesh with each other. It also has driving system and control system and control system, feeding system to form a kind of special extruding, granulation and shaping processing equipment. The screw stem and barrel adopt building type design principle to change the length of the barrel, choose different screw stem parts to assemble the line according to material characteristics, so as to get the best work condition and max function. Because it has good mixing, separating, dewatering and self-cleaning functions to avoid the materials wrapping the axle, caking in the extruding process. With the rotation of the screw, the surface of the materials continuously change, helps the volatile matter dewater, treat, and etc.
|
|
TSK-35 |
TSK-50 |
TSK-65 |
TSK-75A |
TSK-75B |
TSK-92 |
|
Screw DIA(mm) |
35.6 |
50.5 |
63 |
72 |
75 |
90.5 |
|
Screw speed(r/min) |
600 |
500/600 |
400/500 |
400/500 |
300/500 |
400 |
|
Main motor power(KW) |
15-22 |
37-45 |
55-75 |
75/110 |
90-110 |
220-280 |
|
L/D |
36 |
36 |
36 |
32-48 |
36 |
36 |
|
Capacity (kg/h) |
30-60 |
70-120 |
150-240 |
200-500 |
280-450 |
500-800 |
Zhangjiagang City JiaYu Machinery Co. Ltd located by the side of Yujia Bridge Jinfeng Town Zhangjiagang City. Our company is one specialized in producing liquid filling machinery manufacturer. We insisted that take the market as the guidance, the quality as the important line. We have established perfect quality system certification and outfitted consummate experiment with test facility. We own a high quality development group and manufacturing stuff with two senior engineers, four engineers and ten technicians.
The products we supply have pure water, mineral water treatment equipment, drinking water bottle & barrel filling machine, carbonated drink filling machine, aseptic cold filling machine and hot filling machine etc. Especially model QGF SERIES barreled filling production. Also we can offer the craft consultation, the workshop plane layout, installation and trial running and the technical training. Our products has been sold everywhere in our country, also Russia and some MID-east countries.
We are willing to establish business relations with our high quality products and perfect service with you.
Welcome to visit our company and give your instruction!
