1. Pipe range: Φ 16-Φ 800mm
2. Output: 80kg/h-850kg/h
3. Production speed: 0.1-15m/min
Process flow:
Raw material+master batches--mixing--vacuum feeding--material dryness--single screw extruder--mark line extruder---mould--calibrator---vacuum spray calibration tank---spray cooling water tank---color-ribbon printer--pedrail haul-off--planetary cutter--stacker---finished product inspecting&packing
Application:
Water and gas supply, micro&sprinkler irrigation system, sewerage pumping and effluent disposal system.
Properties & Advantages:

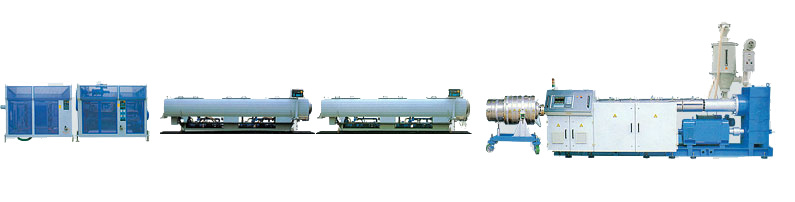

The pipes produced by this line have excellent hardness and flexibility. Their diameters vary from 16mm to 1200mm. The line consists of control system, extruder, die, vacuum calibration unit, hauling-off and planetary cutting system and stacker.
Two extruders are utilized in this line. The main extruder is used to extrude the large diameter pipes and the other small one is used to extrude the mark line.
Basket or spiral type composite die is used in this line. PLC control system and large chromatic liquid crystal screen make the operation very convenient.
|
Model |
Diameter Pipe |
Extruder Model |
Output |
Total Power |
|
SSOG-63 |
20-63mm |
SJ65/33; SJ25/25 |
80-100kg/h |
104kw |
|
SSOG-160 |
75-160mm |
SJ75/33; SJ25/25 |
100-150kg/h |
130kw |
|
SSOG-250 |
110-250mm |
SJ90/33; SJ25/25 |
180-220kg/h |
260kw |
|
SSOG-450 |
160-450mm |
SJ120/33; SJ25/25 |
200-300kg/h |
400kw |
|
SSOG-630 |
315-630mm |
SJ150/33; SJ25/25 |
400-500kg/h |
500kw |
|
SSOG-800 |
450-800mm |
SJ150/33; SJ25/25 |
600-850kg/h |
700kw |
Qingdao Xindacheng Plastic Machinery Co., Ltd, a high-tech join-stock enterprise, integrates scientific research development, technology transfer, production and sale. In addition, it is the unit for accomplishing key promotion projects of science and technology result in construction department. Associated promation "Drip Irrigation pipe system" and pet strap extrusion technology.
The company mainly engages in research, development, design, manufacture and sales service of new type plastic machinery, is able to provide "Turn-key project" of complete set of production line for many plastic product, such as inline drip irrigation pipe, drip tube, pet & PP strap, pet & PVC sheet and different pipe. It owns powerful technology strength, gathers professional scientific and research talents in top grade macromolecule material national wide, polymer processing, industrial automatization and marketing. Besides, it keeps closely contact with chemical design research institute and universities, so it is familiar with market trend and is able to transfer the latest science and technology achievements in the fastest speed so that to provide whole set of technology such as the most competitive equipment, technology and relevant technology consultation service.
Oriented by human, Xindacheng considers that the innovation and credit is the most important. It will offer first-class product and considerate service to help you in accomplishing great business and cooperate with together to create new era in plastic machinery industry.
Xindacheng always considers that customers' interest is the first important. Over decades, Xindacheng's product spreads all over the country and exported to more than 40 countries and regions such as, U. S. Italy, Canada, South Korea, Japan, Russia, Ukraine, Czech, Turkey, Mexico, Iran, Saudi Arabia, Egypt, Indonesia, Singapore, Taiwan, HK, Malaysia, and wins customers' reputations.
Company board chairman and staff warmly welcome friends from all circles to visit us.
