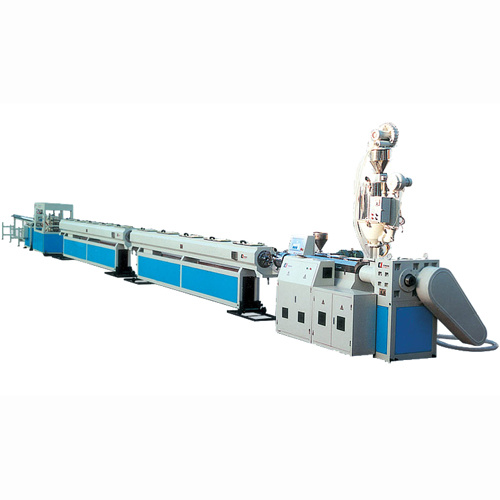

Description of PPR pipe extrusion line:
1. Pipe range: Φ 20-Φ 160mm
2. Production speed: 2-20m/min
3. Output: 60-200kg/h
Process flow:
Raw material+master batches--mixing--vacuum feeding--material dryness--single screw extruder--color string extruder--spiral mould--calibrator--vacuum spray calibration tank--spray cooling water tank--jet printer--belt haul-off--no-dust cutter--stacker--finished product inspecting&packing
Special single screw extruder for polyolefin, having high extruding velocity and effective plasticization.
Separation mixing screw specialized for polyolefin.
Specially designed three co-extruding die, reasonable channel, smooth outside and inside wall, and little internal stress.
Producing pipe limitΦ 20-Φ 160mm, manufacture velocity up to 16 m/min.
May be used to produce HDPE silicon core tube, ordinary PP-R, PE and PEX pipes.
Low cost: The cost of nanometer & anti-virus pipe is merely increase 5-10% on the ordinary pipe basis.
NOTE: Patent No.: 01243874. X
| Extruder | SJ-65/30B | SJ-9030B |
| SJ-30/25B | SJ-45/30B |
| SJ-25/25B | SJ-25/25B |
| Pipe die | φ 20-63 | φ 20-160 |
| Sizing trough | SGZL-75 | SGZL-160 |
| Cooling trough | SGZL-75 | SGZL-160 |
| Haul off machine | SLQ-75B | SLQ-160B |
| Sawing machine | STG-75 | STG-160 |
| Stacker | FZ-6000 | FZ-6000 |
Qingdao Xindacheng Plastic Machinery Co., Ltd, a high-tech join-stock enterprise, integrates scientific research development, technology transfer, production and sale. In addition, it is the unit for accomplishing key promotion projects of science and technology result in construction department. Associated promation "Drip Irrigation pipe system" and pet strap extrusion technology.
The company mainly engages in research, development, design, manufacture and sales service of new type plastic machinery, is able to provide "Turn-key project" of complete set of production line for many plastic product, such as inline drip irrigation pipe, drip tube, pet & PP strap, pet & PVC sheet and different pipe. It owns powerful technology strength, gathers professional scientific and research talents in top grade macromolecule material national wide, polymer processing, industrial automatization and marketing. Besides, it keeps closely contact with chemical design research institute and universities, so it is familiar with market trend and is able to transfer the latest science and technology achievements in the fastest speed so that to provide whole set of technology such as the most competitive equipment, technology and relevant technology consultation service.
Oriented by human, Xindacheng considers that the innovation and credit is the most important. It will offer first-class product and considerate service to help you in accomplishing great business and cooperate with together to create new era in plastic machinery industry.
Xindacheng always considers that customers' interest is the first important. Over decades, Xindacheng's product spreads all over the country and exported to more than 40 countries and regions such as, U. S. Italy, Canada, South Korea, Japan, Russia, Ukraine, Czech, Turkey, Mexico, Iran, Saudi Arabia, Egypt, Indonesia, Singapore, Taiwan, HK, Malaysia, and wins customers' reputations.
Company board chairman and staff warmly welcome friends from all circles to visit us.
