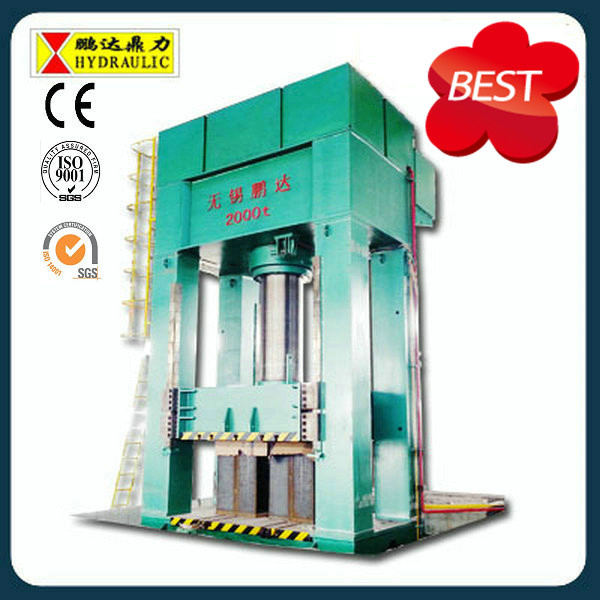

Pengda Best Selling Hydraulic Press Machine Parts
| Price: |
US $ 8000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Money Gram,Western Union |
Brief introduction？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？
？
1.？Widely used for pressing of the large and middle type motor, rotor and stator placing and forming of stator silicon steel and forming of the large pieces.
？
2. Simple structure and easy operation, the machine can dinished pressing and forming.
？
3. The slide adopt guiding rod to prevent it rotating.
？
4. Two hands buttons and scram and button.
？？
Application？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？
？
1. Motor industry？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？ 2. Auto parts industry
3.？Others
？？
？
Attention？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？
？
1. Please use 46# Anti-wear hydraulic oil, and change the oil once a month.
？
2.？It's？not allowed to？overpressure when working.
？
3. Please pay attention of the hands and body when pressing.
4. Stop immediately when the machine falue.
|
type |
Unit |
|
40T |
63T |
100T |
160T |
200T |
315T |
400T |
1000T |
|
Nominal force |
KN |
|
400 |
630 |
1000 |
1600 |
2000 |
3150 |
4000 |
10000 |
|
Eject force |
KN |
|
63 |
100 |
250 |
250 |
400 |
630 |
630 |
2000 |
|
Maximum working pressure of the fluid |
Mpa |
|
22.6 |
24.7 |
26.3 |
26 |
25 |
25 |
25 |
25 |
|
Macimum day light |
mm |
A |
600 |
700 |
800 |
1100 |
1120 |
1250 |
1400 |
1600 |
|
Maximum stroke of the cylinder |
mm |
B |
400 |
450 |
500 |
500 |
700 |
800 |
800 |
1000 |
|
Ejector stroke |
mm |
C |
120 |
160 |
200 |
200 |
250 |
300 |
300 |
450 |
|
Slider down speed |
mm/s |
|
50 |
78 |
76 |
100 |
100 |
100 |
100 |
100 |
|
Slider pressing speed |
mm/s |
|
33 |
37 |
15 |
24 |
19 |
15 |
15 |
10 |
|
Slider return speed |
mm/s |
|
60 |
72 |
85 |
93 |
80 |
80 |
65 |
60 |
|
motor power |
KW |
|
5.5 |
5.5 |
5.5 |
11 |
15 |
15 |
15 |
60 |
|
Table size (L-R) |
mm |
D |
500 |
570 |
710 |
1000 |
1000 |
1258 |
1258 |
2000 |
|
Table size (F-B) |
mm |
E |
460 |
500 |
580 |
840 |
940 |
1200 |
1200 |
1800 |
|
Working table height |
mm |
F |
720 |
730 |
810 |
900 |
550 |
650 |
650 |
500 |
|
Machine size (L-R) |
mm |
G |
1980 |
2100 |
2420 |
2650 |
2740 |
3100 |
3100 |
7010 |
|
Machine size (F-B) |
mm |
H |
700 |
700 |
900 |
1250 |
1250 |
1250 |
1250 |
3000 |
|
Total height |
mm |
I |
2400 |
2700 |
3420 |
3600 |
3940 |
4350 |
4350 |
5740
|
| Prod Model: |
YP32 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
CE, ISO9001, ISO14004 |
| Warranty: |
2 Years |
| Deliver: |
30-45 Days |
| Precision: |
High Precision |
| Type: |
High-Speed Punching Machine |
| Power Source: |
Hydraulic Pressure |
| Automatic Grade: |
Depend Client |
| Controlling Mode: |
Depend Client |
Wuxi Pengda Hydraulic Machine Factory is specialized in hydraulic press machine. We are located in a beautiful and strong economy city and near Shanghai.
We are the largest company in China Hydraulic Press Town, founded in 2003, with 30, 000 square meters worrkshop. We have 5 best engineers and over 30 technological elite, all of them have good technological skills and rich experience. We have advanced design capabilities, strong technical force and rich experience in installation and debugging. Company has a strong processing power, with all sorts of lathe machine, milling machine, planing machine, grinding machine, floor type boring and milling machine, horizontal boring machine, plano-boring and milling machine, numerical controlled flame cutting machine, CNC milling machine production equipment. Complete testing process guarantee each products working well after leave factory.
Our products have 11 series and more than 100 kinds. Single column hydraulic presses, four-column hydropresses, hydraulic rectifying machines, motor press mounting machines, motor aluminum casting machines, digital controlling hydropresses, plastic product hydropresses, thin plate stretching machines, universal hydropresses and desktop hydraulic presses are Our main products. It is mainly applicable in various motor industries, such as thin plate stretching, powder metallurgy, electronic meters, plastic products and motorcycle and automobile manufacture etc. We got CE, ISO9001, ISO14001 certificate, and till today, our products spread most China city, Europe, South Africa, Middle East, South America and Southeast Asia etc.
Hydraulic press, of course Pengda! We are looking forward to cooperation with you!
