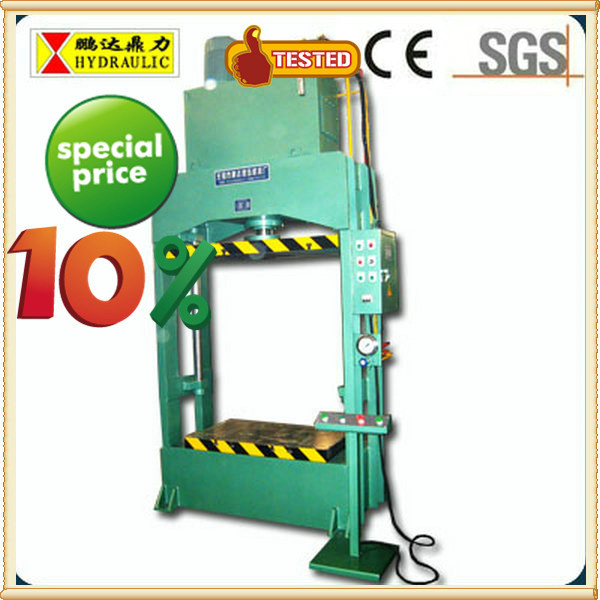

Pengda H Frame Hydraulic Press
Characteristics:
1. Frame column structure, load and unload conveniently.
2. Cartridge valve control, stable, high efficiency and long life time.
3. Extension with the hydraulic cylinder on workingtable, high accuracy and reliable.
4. High efficiency of cooling device, sutable for continuous production
Application:
Pressing large and middle moto, rotor and stator; Pressing and forming startor silicon steel sheet; Drawing and forming the large workpiece etc.
Package & Shipping
1. Outside package: Standard export wooden cases or shell feed plate
2. Inner package: Stretch film
Guarantee and After-sale Services
* one year guarantee for whole machine except consumables
* 24 hours technical support by e-mail and telephone
* use-friendly English software, user manual and detailed videos/CD
* abroad installation, commissioning and training(charge)
Company Information
We are specialized in all kinds of Hydraulic Press Machine (Servo Hydraulic Press, C-frame Hydraulic Press, CNC Hydraulic Press, Auto Accessories Hydraulic Press, Motor Buckle Hydraulic Press etc. ). We have long history and got ISO9001, ISO14001, CE, SGS certificate. Till today, our products have already spread over 100 countries and we have office in Philippines, Iran, France, South Africa, Canada, Brazil etc. Offer after service.
|
Type |
Unit |
|
63T |
100T |
160T |
200T |
315T |
|
Nominal force |
KN |
|
630 |
1000 |
1600 |
2000 |
3150 |
|
Maximum working pressure of the fluid |
MPa |
|
24.7 |
26.3 |
26 |
25 |
25 |
|
Maximum stroke of the cylinder |
mm |
B |
500 |
600 |
800 |
800 |
1000 |
|
Pressure head down speed |
Mm/s |
|
23 |
16 |
24 |
19 |
15 |
|
Pressure head return speed |
Mm/s |
|
77 |
48 |
93 |
43 |
55 |
|
Motor power |
KW |
|
5.5 |
5.5 |
11 |
11 |
15 |
|
Maximum opening from pressure head to the table |
mm |
A |
1400 |
1600 |
1800 |
2200 |
2400 |
|
The best moving out stroke of the table |
mm |
H |
550 |
600 |
700 |
800 |
900 |
|
Table size |
L-R |
mm |
C |
800 |
850 |
950 |
1000 |
1000 |
|
F-B |
mm |
D |
500 |
600 |
850 |
1000 |
1000 |
|
Distance between left and right |
mm |
E |
900 |
1100 |
1150 |
1200 |
1200 |
|
Total height |
mm |
F |
2480 |
2688 |
3000 |
3200 |
3300 |
|
Body width |
mm |
I |
3200 |
3800 |
4100 |
4500 |
4700 |
|
Deep of the machine pit |
mm |
G |
600 |
600 |
734 |
734 |
850 |
Wuxi Pengda Hydraulic Machine Factory is specialized in hydraulic press machine. We are located in a beautiful and strong economy city and near Shanghai.
We are the largest company in China Hydraulic Press Town, founded in 2003, with 30, 000 square meters worrkshop. We have 5 best engineers and over 30 technological elite, all of them have good technological skills and rich experience. We have advanced design capabilities, strong technical force and rich experience in installation and debugging. Company has a strong processing power, with all sorts of lathe machine, milling machine, planing machine, grinding machine, floor type boring and milling machine, horizontal boring machine, plano-boring and milling machine, numerical controlled flame cutting machine, CNC milling machine production equipment. Complete testing process guarantee each products working well after leave factory.
Our products have 11 series and more than 100 kinds. Single column hydraulic presses, four-column hydropresses, hydraulic rectifying machines, motor press mounting machines, motor aluminum casting machines, digital controlling hydropresses, plastic product hydropresses, thin plate stretching machines, universal hydropresses and desktop hydraulic presses are Our main products. It is mainly applicable in various motor industries, such as thin plate stretching, powder metallurgy, electronic meters, plastic products and motorcycle and automobile manufacture etc. We got CE, ISO9001, ISO14001 certificate, and till today, our products spread most China city, Europe, South Africa, Middle East, South America and Southeast Asia etc.
Hydraulic press, of course Pengda! We are looking forward to cooperation with you!
