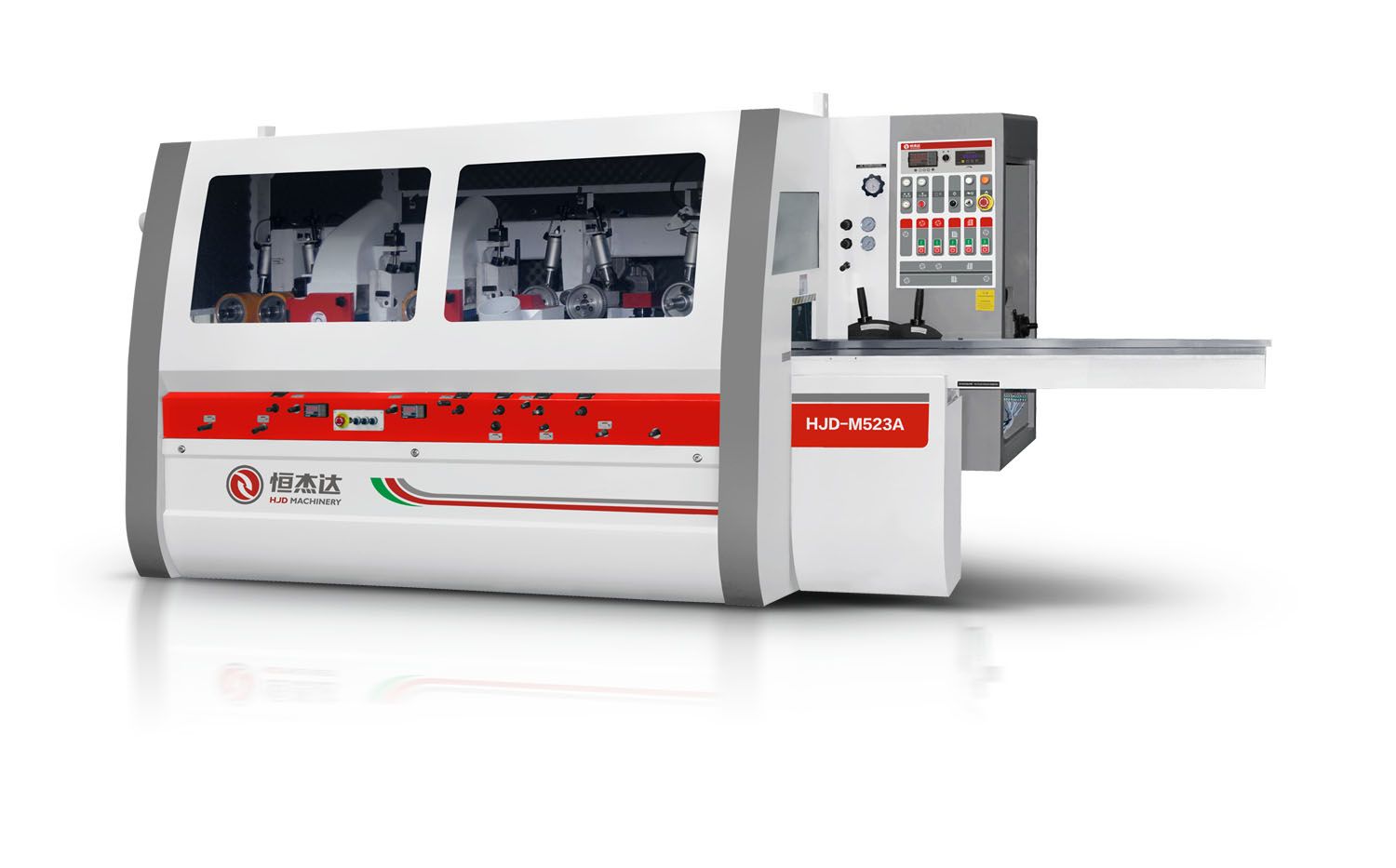

planer machine for door frame window four side planer from China Shunde (HJD-M523D)
1. Each principal axis adopts independent drive to electric motor, features strongercutoff force
2. Adjusts for principal axis integrates at central or frontal side, features easy operation
3. Special hardware mold steel countertops durable
4. Full rigid work surface easy maintenance
5. Equips with auxiliary unit alarming lack of material, it effectively improvises smoothfeed-in while lack of material
6. Active roller below improves feeding effciency
7. Equips with world-class electric element, features superior stability
8. With fully sealed safety protective cover, this effectively avoids flying logging debrisand noise blocked, and evenacts as safety protetion
9. Pneumatic pressing feeding roller section by section by section adjusts for pressing force, it favors forsmooth feed-in of dfferent thickness of timber
10. Adopts central charging system, features convenience and promptness
11. The universal shaft system is designed specislly for machining various complicated products
information of planer machine for door frame window four side planer from China Shunde
machine parameter | Working width | 25-230mm |
| Working Thickness | 8-150mm |
| Working Table Length | 1950mm |
| Feeding Speed | 7-28m/min |
| Main Shaft Diameter | 40mm |
| Main Shaft Revolution | 6000r/min |
| PneumaticSource Pressure | 0.6MPa |
| Motor Power | 1st Lower Shaft | 7.5kw/10HP |
| 1st Upper Shaft | 11kw/15HP |
| Right Vertical Shaft | 7.5kw/10HP |
| Left Vertical Shaft | 7.5kw/10HP |
| Top Spindle Lifting Motor | / |
| Left shaft adjusting | / |
| 2nd Upper Shaft | 7.5kw/10HP |
| 2nd Lower Shaft | 7.5kw/10HP |
| Universal spindle | / |
| Motor Power | Feeding beam lifting | 0.75kw/1HP |
| Feeding motor | 5.5kw/7.5HP |
| General Power | 47.25kw/63HP |
| Hydraulic feed motor | / |
| Cutter Diameter | Right Vertical Shaft | φ125-φ180mm |
| Lelf Verticl Shaft | φ125-φ180mm |
| 1st Lower Shaft | φ125 |
| 1st Upper Shaft | φ125-φ180mm |
| 2nd Upper Shaft | φ125-φ180mm |
| 2nd Lower Shaft | φ125-φ180mm |
| Universal spindle | φ140mm |
| Remarks/mm | Feeding Wheel Diameter | φ140mm |
| Dust outlet Diameter | φ140mm |
| Physical Dimension(L×W×H) | 3710×1635×1735mm |
planer machine for door frame window four side planer from China Shunde planer machine for door frame window four side planer from China Shunde
