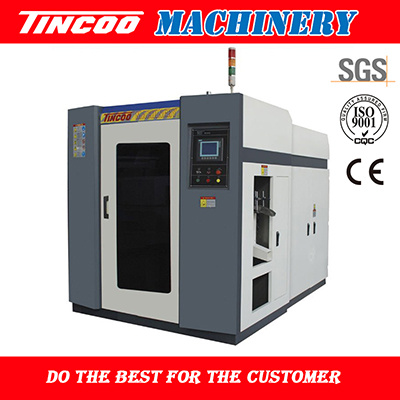

Plastic Blow Molding Machine Blowing Machine Product desc: Single station(Max. 10L Screw 70), Material: PE \ PP; Hydraulic Pattern, Other choices according to customers' requirements: Multiple Dies, Multiple Layers, Visible Line, Parison Controller
The 2L-16L single-station automatic blow moulding machinery include three series of DHS-2L, DHS-5L, DHS-10L and DHS-16L. A wide variety of materials can be used for the machine, which are suitable for producing multi-type products in small batches. The clamping system is a high-precision single-station linear guide, extrusion system using a hard gear reducer and inverter imported from Japan. The die head system adopts central-incoming extrusion die made of special steel, imported hydraulic valve and seal parts with proportional control valve. The control system consists of PLC and Human-machine interface imported from Japan, an automatic temperature control module and imported electrical parts
Setting:
Clamping---------Single station+Hight-precision guide+large arm cylinder axle
Extrusion system--Hard gear surface reducer+Japan inverter
Die system--------Central-incoming extrusion die with special steel
Hydraulic system--Japan hydraulic valve seal and proportional control
Control system----Japan PLC+Imported HMI+PLC automatic
|
Specification |
|
DHS-2LII |
DHS-5LII |
DHS-12LII |
DHS-16LII |
|
Material |
|
PE, PP^ |
PE, PP^ |
PE, PP^ |
PE, PP^ |
|
Max.container capacity |
L |
2 |
5 |
12 |
16 |
|
Number of die |
set |
1,2,3,4 |
1,2,3,4 |
1,2,3,4 |
1,2,3,4 |
|
Machine Dimension |
m |
2.5×1.6×2.4 |
2.9×1.85×2.65 |
4.2×2.95×3 |
4.8×3.2×3.1 |
|
Total weight |
ton |
4 |
5 |
7 |
8 |
|
Accumulator head |
|
DHS-2LII |
DHS-5LII |
DHS-12LII |
DHS-16LII |
|
Number of die heating |
zone |
3 |
3 |
3 |
4 |
|
Power of die heating |
KW |
4.2 |
5.8 |
6-7 |
6-7 |
|
Max die-pin diameter |
mm |
60 |
80 |
140 |
140 |
|
Center distance of twin-die |
mm |
130 |
160 |
240 |
260 |
|
Center distance of tri-die |
mm |
85 |
110 |
160 |
180 |
|
Center distance of four-die |
mm |
65 |
85 |
120 |
130 |
|
Clamping Unit |
|
DHS-2LII |
DHS-5LII |
DHS-12LII |
DHS-16LII |
|
Clamping force |
KN |
38 |
70 |
110 |
155 |
|
platen opening stroke |
mm |
158-410 |
209-510 |
209-620 |
219-600 |
|
platen size |
mm |
290×320 |
350×380 |
460×500 |
500×490 |
|
Max mould size |
mm |
320×320 |
400×380 |
560×500 |
600×500 |
|
Mould thickness |
mm |
160-240 |
210-300 |
220-380 |
210-380 |
|
Extruder Unit |
|
DHS-2LII |
DHS-5LII |
DHS-12LII |
DHS-16LII |
|
Screw diameter |
mm |
50 |
60 |
70 |
75 |
|
Screw L/D ratio |
L/D |
24:1 |
24:1 |
24:1 |
25:1 |
|
Extruding Volume |
Kg/hr |
30-50 |
60-80 |
100-120 |
100-130 |
|
Number of heating zone |
zone |
3 |
3 |
3 |
4 |
|
Extruder heating power |
KW |
3-4.4 |
5-6.6 |
6-8.2 |
7.3-8.6 |
|
Extruder driving power |
KW |
11-15 |
15-18.5 |
22-30 |
22-30 |
