| Price: | US $ 80000/Set |
|---|---|
| Trade Terms: | FOB,EXW,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T |
|
Main parameter |
Available material | PC^^ | |
| Max. Product Volume | 30 | (L) | |
| Dry Cycle | 650 | (pcs/h) | |
| Machine Size | 5.0×2.3×3.0 | (L×W×H)(m) | |
| Machine Weight | 12.5 | (Ton) | |
| Installed capacity | 68 | KW | |
|
Plasticizing system |
Screw Diameter | 82 | (mm) |
| Screw L/D Ratio | 25 | L/D | |
| Plasticizing capacity | 100 | (kg/h) | |
| Screw Heating Zone | 4 | (Zone) | |
| Screw Drive Power | 30 | (KW) | |
|
Extrusion die head |
Continue die head | ||
| NO. of Heating Zone | 4 | (Zone) | |
| Die Heating Power | 11.9 | (KW) | |
| Max. Die Diameter | 120 | (mm) | |
|
Opening and clamping system |
Clamping Force | 180 | (KN) |
| Mold Stroke | 350-850 | (mm) | |
| Max. Mold Size | 600×700 | (W×H)(mm) | |
|
Hydraulic system |
Oil Pump Power | 45 | (KW) |
| System pressure | 120 | (Kg/cm) | |
| PLASTICZING SYSTEM | |
| Screw |
Adopt high-performance nitralloy steel screw to ensure the material be plasticized evenly and completely; Good plasticizing capability, high output; Transducer adjusts speed and collects temperature-control signals to prevent the screw from cold starting. |
| Speed Reducer | Hard-teeth, low noise & wear-resistant speed reducer |
| Machine Barrel Screw | 38CrMoALA high quality nitrogen steel |
| Heating Zone | 4 Zone Casting, aluminum heater |
| Extrusion Motor | Three phase asynchronism motor (380 V, 50 HZ) |
| Cooling fan | 4 zones |
| EXTRUCTION SYSTEM | |
| Die Head | 38CrMoALA high quality nitrogen steel |
| Parison controll | MOOG 100 points parison controller |
| Heating Zone | 4 zone, heat coil of stainless steel |
| Die Heat Huff | Pressure and capacity can be adjusted |
| Preform Adjustment | Automatic |
| Heat insulation | By heat insulating board between accumulator and hydraulic cylinder |
| OPENING AND CLAMPING SYSTEM | |
| Clamping structure | Three tie bar and three cylinder, enough power |
| Molds moving structure | Two linear rolling guideway, high precision |
| Max. Mold Platen (W×H) | 600×700mm, suitable to install different sizes of molds |
| ELECTRIC CONTROL SYSTEM | |
| Programmable Logic Controller |
Japanese MITSUBISHI PLC, famous brand Stable and perfect performance, high precision |
| Touch Screen | Colorful touch screen, autoalarm, self-diagnose the system |
| Temperature Control | Self-regulation |
| Temperature Module | MITSUBISHI automatic temperature module, digital |
| Action control | Japanese MITSUBISHI, programmable |
| Protection Function | Automatic alert and breakdown feedback, double protection of mechanical apparatus |
| HYDRAULIC SYSTEM | |
| Function | Proportion pressure controller, changing direction quickly and softly |
| Oil pump motor | three phase asynchronism motor (380 V, 50 HZ) |
| Hydraulic pump | Vane pump |
| Hydraulic valve | Imported hydraulic components_YUKEN |
| Pipes | Bilayer high pressure blast pipes |
| Cooling Mode | Water cooler and oil cooler separately |
| PNEUMATIC SYSTEM | |
| Component | Imported famous brand pneumatic parts |
| Valve | TAIWAI AIRTAC |
| COOLING SYSTEM | |
| Three cooling ways | Mold\barrel\oil box adopt independent cooling waterway |
| Cooling Medium | water |
| Colling water consumption | Underground water or provided by Water chiller |
| Water Pressure | 0.3-0.6 (Mpa) |

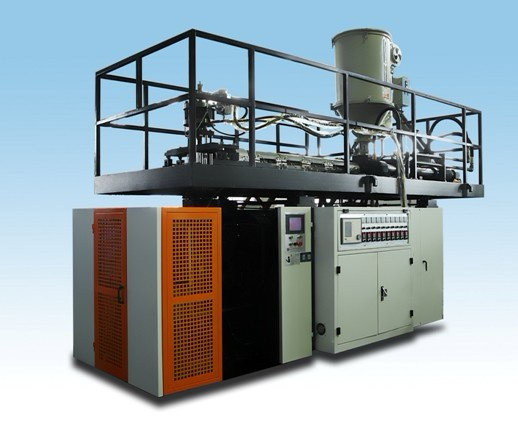

| Prod Model: | YJB82PC-30L |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: | 5.0m*2.4m*3.8m |
| Weight: | 11.6t |
| Automation: | Automatic |
| Making Method Of Parison: | Extrusion-Blow Molding |
| Computerized: | Computerized |
| Certification: | CE |
| Raw Material: | PC |
