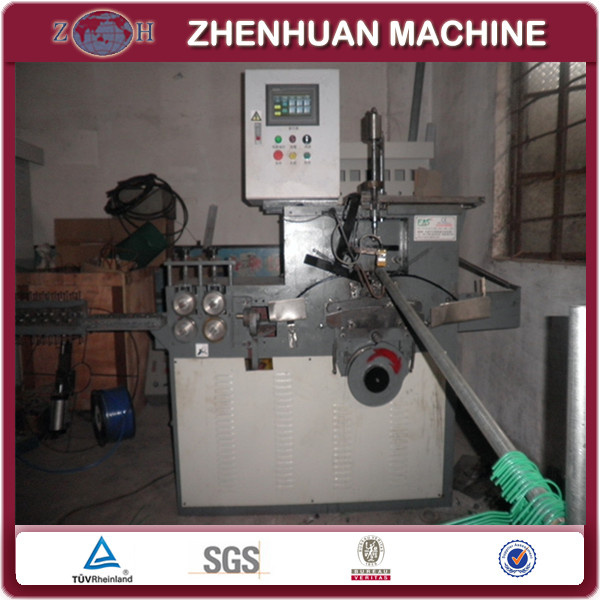

I Description of CNC plastic coated wire hanger making machine
This automatic clothes hanger making machine adopts servo motor to feed wire, high speed and high precision. Comparing to traditional wire hanger making machine, rate of spoiled product of this automatic type is Zero!
This automatic clothes hanger making machine adopts PLC control, HMI operation, simple and convenient.
Hanger forming mould can be easily changed for producing other shaped or sized clothes hangers. And machine adjustment is very simple and convenient.
We have other special machines for welded clothes hangers, plastic coated wire clothes hangers, hangers with normal indentation or special butterfly indentation.
II Technical parameter
ItemData
Hanger size35.5 ~ 48.2 cm
Table size1850 x 1000 x 1680 mm
Weight900 kg
Wire diameter1.6 ~ 3.8 mm
Packing size(Clothes hanger machine)1400 x 1000 x 1600 mm
Raw materialplastic coate
Out put: 25 pcs/min
Serve motor power2.0 kW
Main motor power 2.2 kW
III Main advantage
3.1 Length Preferring standards
3.2 The speed can be adjusted according to diameter, any of the speed.
3.3 The high speed is fast, the fastest production can produce 25 per minute.
3.4 Most convenient replacement mold (hangers styles) convenient and simple, and the screen enter the required wire length, moving knife position on the line
IV Price
Price basis: FOB Shanghai, China.
Payment: 30% down payment by T/T in advance, the balance by T/T before shipment.
Lead-time: Within 30 days after receiving down payment
