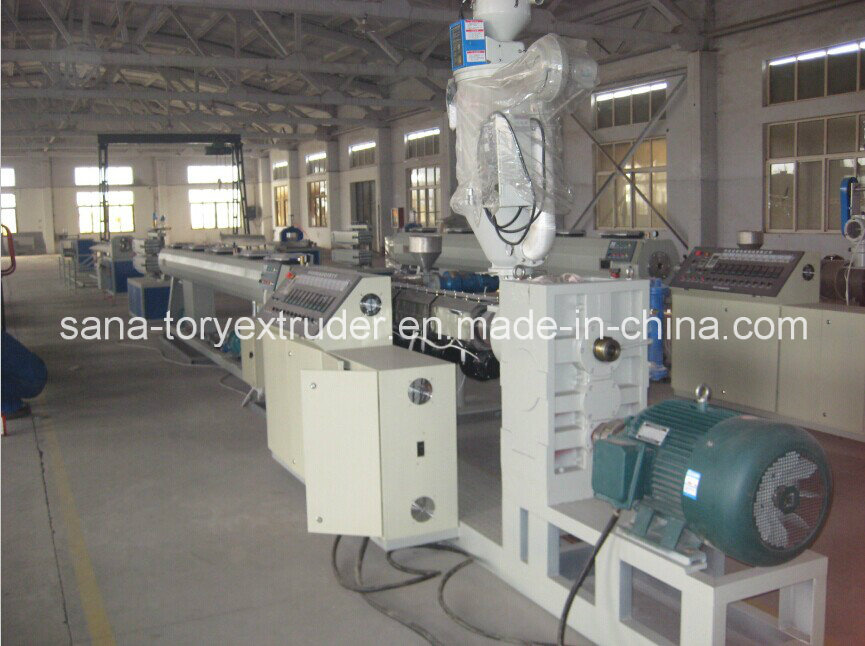

Plastic Extruder PPR Pipe Making Machine
This machine is applied in producing PPR pipes with diameters from 16mm-160mm in the aspect of cold/hot water supply, building heating system, water supply etc.
1. Pipe range: 16-160mm
2. Output: 100-250kg/h
3. Power: 100-150kw
4. Pipe production speed: 2-15m/min
Processing Flow of plastic ppr extruder machine:
Raw material+masterbatches → Mixing → vacuum feeding → material dryness → single screw extruder →color string extruder → spiral mould → calibrator → spray vacuum calibration tank → spray cooling water tank →spray-code printer → belt haul-off → no-dust cutter → pipe rack → finished product inspecting &packing
Main technical parameter:
Model |
SJ 65/33 |
SJ 90/33 |
Pipe diameter (mm) |
20-63 |
63-160 |
Screw Diameter &Ribbon width (mm) |
65, 33:1 |
90,33:1
|
Output (kg/hr) |
150 |
250 |
Line length (m) |
32 |
32 |
Main motor power (kw) |
55 |
90 |
| Worker |
1-2 workers/shift |
1-2 workers/shift |
Based of extensive experience over many years in the field of plastic extruder machinery technology our business activities are as follows:
Planing, design and Manufacturer of plastic extruder mainly for the plastic sheet/pipe/profile extrusion line, and we also supply all kind of plastic raw material to support different customer needs.
We supplies extruder and extrusion lines manufactured in our own production facility and engineered specifically to meet the needs of customers in international markets.
We would like to offer our quality to you, and looking forward to discussing your special plastic extrusion line solution individually and professionally.
