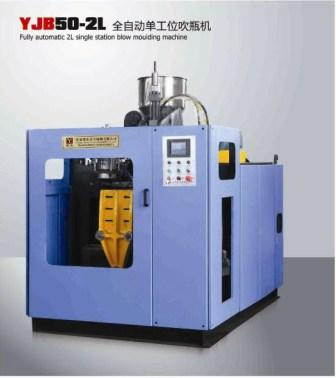

Plastic extrusion blow moulding machine YJB50-2L
1) fully automatic blow molding machine
2) energy saving
3) stable clamping system
4) Japanese MITSUBISHI PLC+ touch screen
5) max. Size up to 2L
|
Main Parameters |
Unit |
YJB50-2L |
|
Max. Product Volume |
(L) |
2 |
|
Dry Cycle |
(pcs/h) |
1500 |
|
Screw Diameter |
(mm) |
50 |
|
Screw L/D Ratio |
(L/D) |
22 |
|
Screw Drive Power |
(KW) |
11 |
|
Screw heating Power |
(3ΦKW) |
4.2 |
|
Screw Heating Zone |
(Zone) |
3 |
|
HPDE Output |
(kg/h) |
35 |
|
Oil Pump Power |
(KW) |
5.5 |
|
Clamping Force |
(KN) |
40 |
|
Mold Stroke |
(mm) |
128-368 |
|
Max. Mold Size |
(W×H)(mm) |
300×320 |
|
Max. Die Diameter |
(mm) |
100 |
|
Die Heating Power |
(4ΦKW) |
1.8 |
|
NO. of Heating Zone |
(Zone) |
3 |
|
Blowing Pressure |
(MPa) |
0.6 |
|
Air Consumption |
(M3/min) |
0.4 |
|
Cooling Water Pressure |
(MPa) |
0.3 |
|
Water Consumption |
(L/min) |
35 |
|
Machine Size |
(L×W×H)(m) |
2.5×1.7×2.3 |
|
Machine Weight |
(Ton) |
3.2 |
Zhangjiagang Yijiu machinery Co., Ltd is located in the new river port city-Zhangjiagang, with neighboring Shanghai in south, Yangtze River in north and Jiangyin Yangtze Bridge in west. As leading China blow molding machine manufacturer, We produce blow mold machine and Plastic molds. The transportation system is quite advanced with two connecting belts- coastal high way and G204 across the city.
We positively combined the advanced technology and theory to design, manufacture and sell fully automatic extrusion blow molding machine of 3 series and over 20 types.
Our machine is suitable to make 5ml to 200L bottles, drums, cans, containers, toolboxes, oil tank, special-shape automobile parts with the material PE\PP\PVC\PETG\PS\EVA\EVOH\PVDC\ABS\TPE\TPU. etc.
Because of our high quality, dependable performance and competitive price, our machines are bestselling in more than twenty provinces and also exported to many countries in Southeast Asia, Middle East, Middle Asia, Russia and South Africa, All of our clients give high reputations for our machines and services.
To be honest and innovative is the eternal spirit of Yijiu Machinery. We aim to provide our customers and partners high quality machines and top rank after sale service to help them to create more value in the competitive market.
No matter where you are, we speak your words. We are ready to spare no efforts to explore the future by our joint efforts.
Welcome to Yijiu Machinery!
