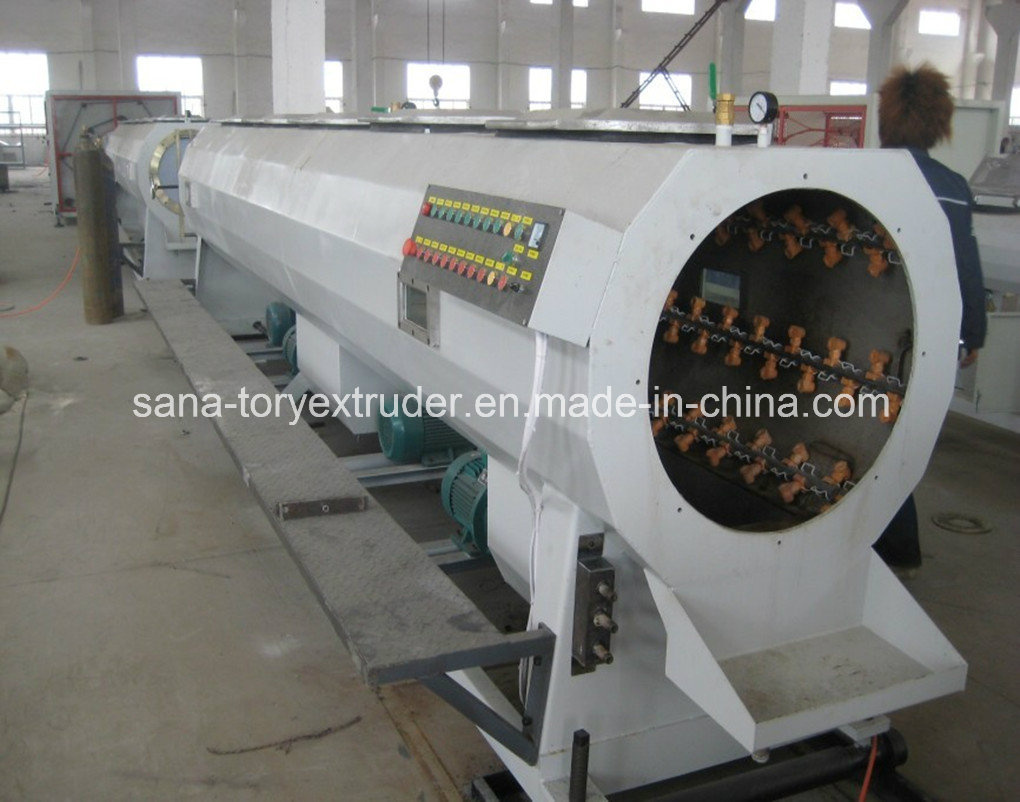

Plastic HDPE pipe extrusion production line/Extruder Machinery
Application:
This line is mainly used to produce HDPE pipe for water/gas supply, and sewage and drain pipe, also undergroud pipes
Features:
Single screw extruders, and specially designed gas vent screw adopted
Vacuum calibrators
And dust free cutter
Stable haul-off machines
Configurations:
Loader-extruder-moulds- color extruder-calibrator-cooling tank-haul-off- cutting machine-stackers and also printers for your option
Pipe diameter range: 20-800mm
Capacity: 150-1000kg/h
Main machine technical parameters:
| Pipe range(mm) | 16-63 | 20-110 | 75-160 | 90-250 | 110-315 | 160-450 | 315-630 | 500-800 |
| Extruder | 45mm | 60mm | 75mm | 75mm | 90mm | 90mm | 120mm | 150mm |
| Extruder power | 30kw | 75kw | 110kw | 110kw | 160kw | 160kw | 280kw | 335kw |
| Extrusion capacity(kg) | 60-100 | 100-150 | 250-300 | 250-300 | 350-400 | 350-400 | 650-700 | 850-1000 |
| Max. Production speed | 10m/min | 6m/min | 6 m/min | 6 m/min | 3 m/min | 1.2m/min | 0.9m/min | 0.7m/min |
Based of extensive experience over many years in the field of plastic extruder machinery technology our business activities are as follows:
Planing, design and Manufacturer of plastic extruder mainly for the plastic sheet/pipe/profile extrusion line, and we also supply all kind of plastic raw material to support different customer needs.
We supplies extruder and extrusion lines manufactured in our own production facility and engineered specifically to meet the needs of customers in international markets.
We would like to offer our quality to you, and looking forward to discussing your special plastic extrusion line solution individually and professionally.
