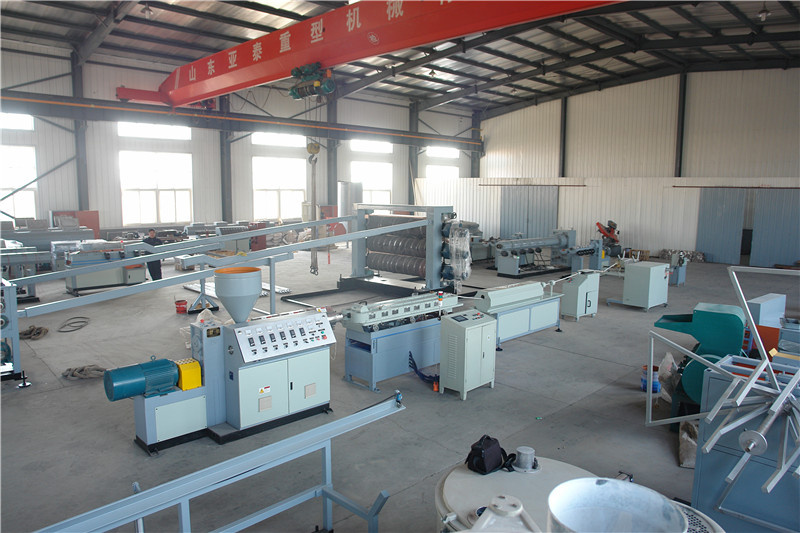

PP/PE/PVC/PA high speed plastic single-wall corrugated pipe extrusion machine
Our company has been specialized in producing various plastic machinery for over ten years. Single-wall corrugated pipe production line is our leading product, which has opened its market all over the world.
Recently, we have developed an advanced kind of high speed single-wall corrugated pipe production line, producing single-wall corrugated pipes of pipe diameter 9-58mm. It is a breakthrough in the field of single-wall corrugated pipe production.
Especially, mould type: One set of mould with two different sizes of mould. So it can be used to make two kinds of corrugated pipes on one set of mould. It will save mould changing time.
When we want to start other mould sets, we should only adjust the height of forming machinery.
This plastic corrugated pipe machine production line can be used to produce corrugated pipes of PE, PP, PVC, EVA continuously, as well as pa corrugated pipes. Plastic single-wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc.
They are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc.
This GSDBGZ series high speed single-wall corrugated pipe plastic machine is mainly composed of the following parts:
1. Single-screw extruder sj-65/30
2. Die head and mould
3. Forming machine for corrugated pipes
4. Prestress eliminating device
5. Auto coiling device
6. Electrical appliances (schneider electrical appliances, Siemens frequency converter, omron intelligent temperature controller) or equipped with PLC control system.
Pipe diameter range 9-58mm
Extruder model sj-65/30
Screw l/d 30: 1
Extrusion capacity 60-80kg/h
Qty of mould blocks 72 pairs
Main motor power 18.5 kw
Cooling mode water circulation cooling
pipe diameter range |
9-58mm |
extruder model |
SJ-65/30 |
screw L/D |
30: 1 |
extrusion capacity |
60-80kg/h |
Qty of mould blocks |
72 pairs |
main motor power |
18.5kw |
cooling mode |
water circulation cooling |
Qingdao Hegu Wood-Plastic Machinery Co., Ltd. is a joint-stock private enterprise, which is devoting itself to the research, development and production of various wood plastic machine and products, it is always making innovations and keeping up with the times.
As one of the earliest domestic manufactories to develop WPC extrusion line, our company is the professional manufacturer in wood-plastic machinery in China. We have large number of senior experts and technician in WPC extrusion line, molds, process formula and product production. Accumulated rich experience in the area of WPC extrusion line, we can provide all-round service and turn-key project.
Our company has built up partnerships with many domestic institutions and scientific organizations that have been engaged in WPC machinery, and has become the scientific research practice foundation for School of Material Science and Engineering of Shandong Forestry University, and Provincial Key Lab of Biological Material Science and Technology. Besides, our products have developed a market throughout the country and even reached Singapore, Russia, Malaysia, Indonesia, Italy, Iran, Taiwan, etc, winning good fame from customers home and abroad.
Our company has passed the ISO9001-2000 quality system certification, and carried out the production in strict accordance with the quality system certification to ensure the quality of products.
