Our mould features:
I.Off-center Adjustment System
Off-center adjustment system can make the error of preform's wall thickness less than 0.05mm. This system does not affect the lifetime of mold;
II.Self-lock System
International advanced bi-awls fixed orientation self-locked structure has been adopted.
III.Cooling System
All the water Channels in the mold's each inner part, which make the cycle time short enough. And all the cooling channels have been specially treated to prevent them from jam;
IV.Heating System
Double Heating System can ensure that the impact of heating is good and quality control is credible. The Heating Band unit makes nozzles be with invariable temperature. The Heater Unit is used to heat the hot runner plate with long using life and powerful heating capacity.
V.Hot Runner System
The perform mold adopt Pin-valve type Hot Runner System, such hot runner system can reduce mold's each part's wear & tear and maintenance cost, and also save 10%~15% electric energy;';''
VI.Hydraulic Ejecting System
The perform-doffing success ratio has achieved firm endurance and the whole perform ejecting process will become much quieter.

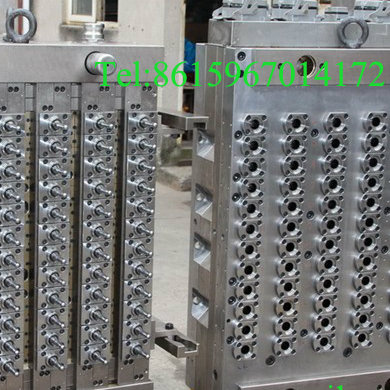

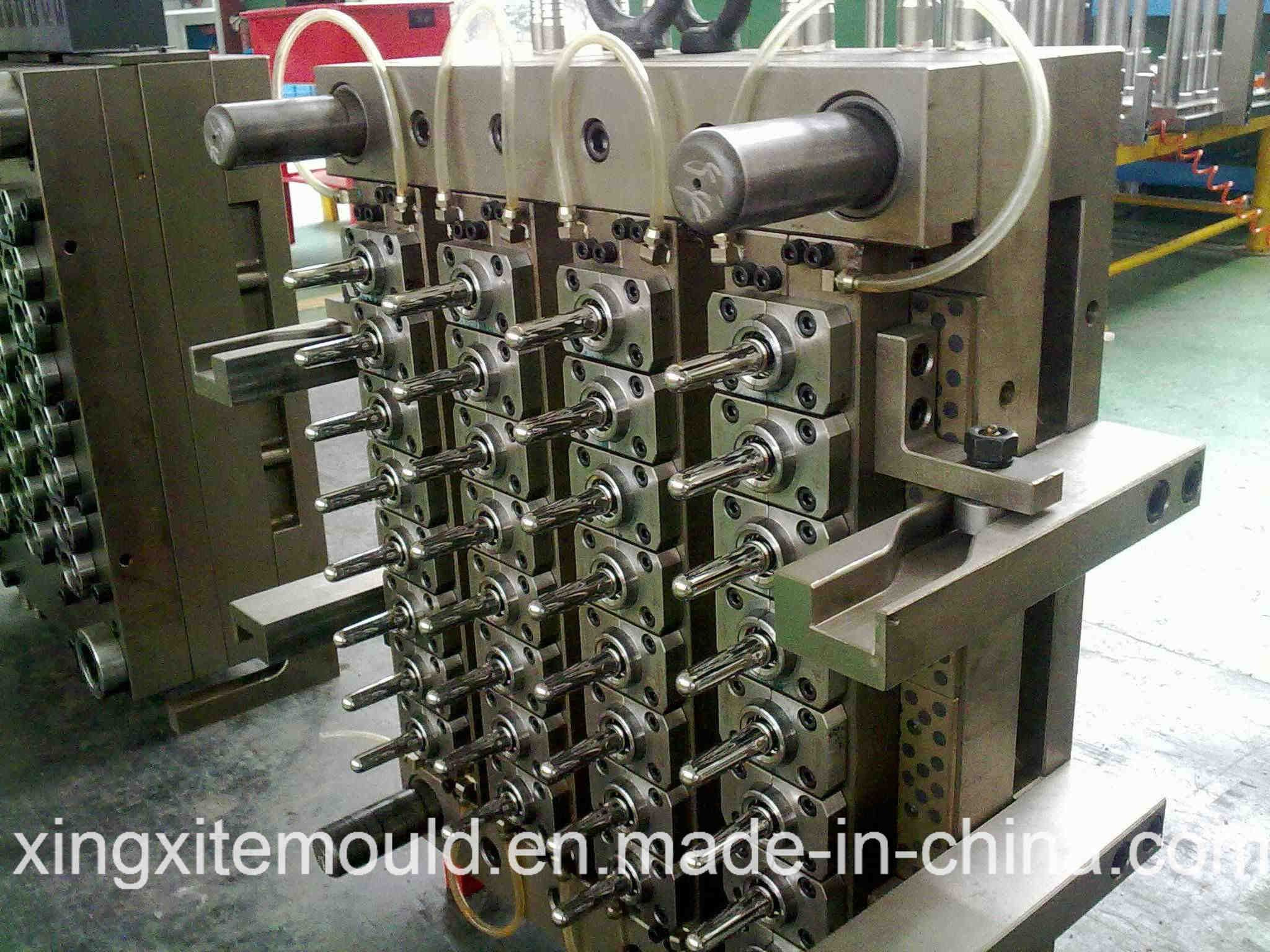

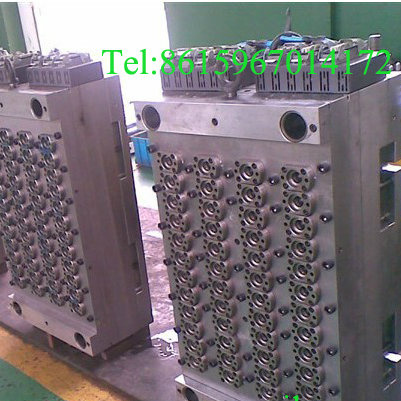

Brand Name | XXT-Mould 48cavities PET preform mould |
Application | All kinds of PP/PET preform mould,cap mould, food bottles, shampoo and cosmetics bottles blow mould, hightemperature blowing moulds, ordinary preform bottle, fruit juice bottles, water bottles etc |
Hot runner | Adopt advanced hot runner system with point to point control system,which ensures uniform heating. |
Cooling system | Each core and cavity adopt independented cooling system, which brings high productivity. |
Screw | International standard screw neck, imported nitrided steel with high hardness and long life time. |
Hot Treatment hardness | HRC48-55 degrees,mirror surface electroplating |
Gate | Adopt advanced hot runner system with point to point control system,which ensures uniform heating. |
Advantage | Electric control system with simulating stretch testing to improve yield rate. |
Taizhou Huangyan Xing Xi Te mould factory located in Huangyan district Zhejiang province--the hometown of the mould in China, specializing in PET preform mould, PP preform mould, PET preform mould with valve gate, PET preform mould with short tail, PET preform mould with long tail, mineral bottle preform mould, beverage bottle preform mould, edible oil bottle preoform mould, engine oil bottle preform mould, 3 gallon preform mould, 5 gallon preform mould, preform mould with different weight, preform mould with different length, preform mould with 1 to 96 cavities, cap mould, injection mould, water bottle mould, mineral bottle mould, shampoo and costmetic bottle mould, fruit juice bottle mould, oil bottle mould, jar mould, barrel mould and so on with modern technology and advanced equipments. For over 15 years diligent operation, we had established a mature one-stop service line from inquiry to after-sales service.
Xing Xi Te Mould uses the latest versions of PRO-E, U. G, Solid-work, auto-CAD to designfull 3D formats and uses the Mold-flow for the analysis of injection. With rich experience in designing, the design team has the ability to provide the financially feasible solutions to meet all the requirements of clients.
Our target is to be your business partner and provide you with complete solutions in high quality and compatible prices. Our founders' experience in mold design, mold manufacturing and injection molding process makes us a strong and reliable partner for you.
We do believe that only good quality molds with compatible prices would lead long term win-win cooperation.
