Injection Mould (PET preform mould)

Injection Mould (PET preform mould)
Price: US $ 1200-1500/Set
Trade Terms: FOB,CIF,EXW
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union

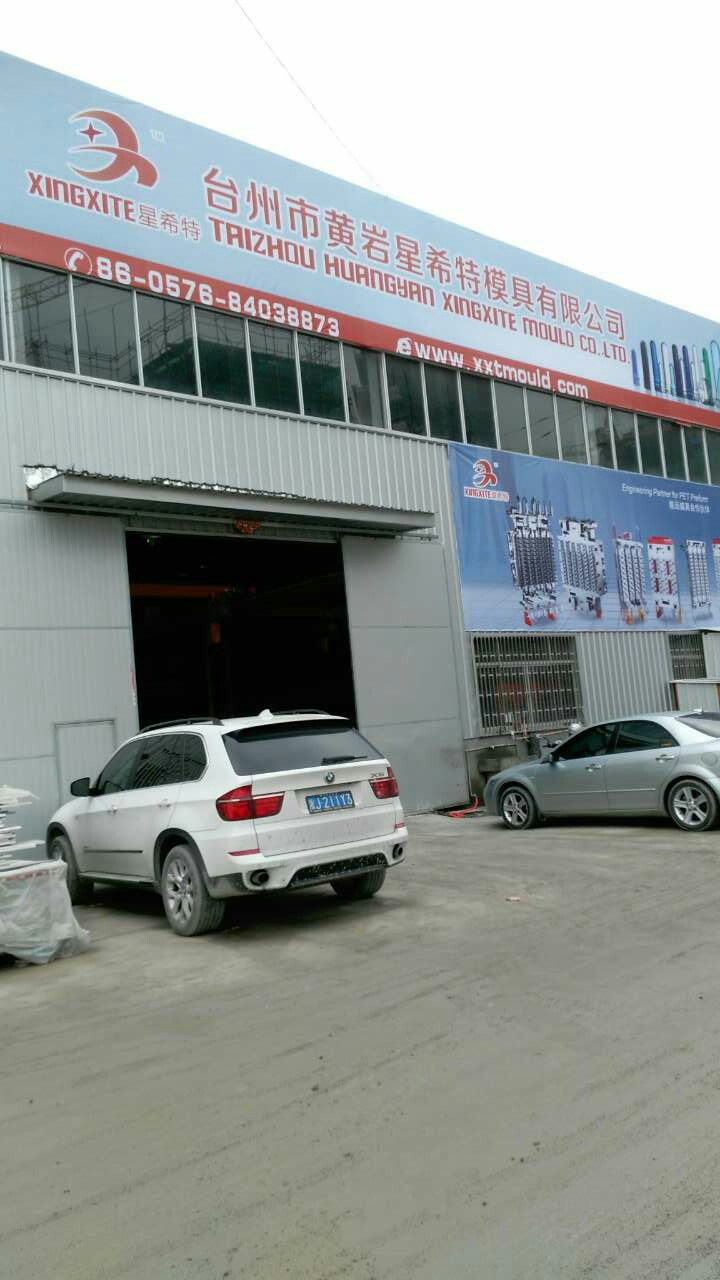

Taizhou Huangyan Xing Xi Te Mould  factory located inHuangyan

district Zhejiang province--the hometown of the mould in China,

specializing in  plastic bottle mould,preform mould,cap mould,

injection mould,water bottle mould,mineral bottle mould,shampoo

and costmetic bottle mould,fruit juice bottle mould,oil bottlemould,

jar mould and so on with modern technology and advanced

equipments.Over 15 years diligent operation,we had established

a mature one-stop service line from inquiry to after-sales service.

Our mould features:

Hot runner system

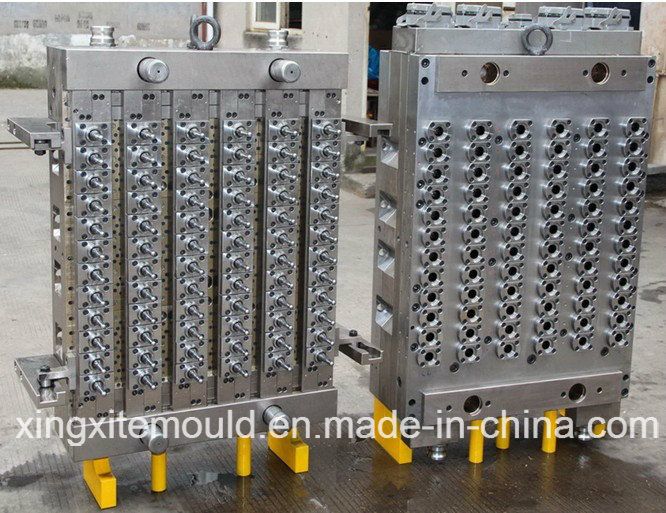

Usually, Multi-cavity pet preform mould does use the hot runner system rather than cold runner system, so the design of hot runner system plays an important role in mould quality guarantee.
Adopt advanced hot runner system with point to point control system,in which each cavity has its own heating zone and temperature is measured by independent thermocouple.
Cooling system
Each core,cavity and neck and slide plate adopt independented cooling system, which brings high productivity.
Proper distribution of cooling water way improve productivity effect and molding cycle only takes 15 seconds
Valve gate
Adopt the valve gated design avoid some problems such as whiting or plastic filiform on bottom,which brings high-quality products.
Hydraulic Ejecting
The perform-doffing success ratio has achieved high level and the whole perform ejecting process will become much quieter.Avoid the mechanism friction
Double Self-lock structure
The main components of moulds ( core,cavity and screw neck )are made by high precision high speed machine tool process,which ensure the precision and with advanced technique to make each cavity self-lock,and bi-awls orientation strucure ensure mold concentricity (tolerance less than 0.08mm)
Graphite copper plate under slide plate,guide push with Graphite copper tube as lubricant to reduce the mold guide friction,when the mold open and close.
Slipper block use HUSKY type with material of steel P20, which is highly anticorrosion, all the move parts used advanced ion nitration treatment, the surface hardness is HRC48-52.
The hot runner adopts the PID controlling system.It has the function of the self repair and self protection.Which can prolong life of the heating element.The temperature difference under controlling within 1°C difference.It will make sure that raw material can not be burnt insider of the hot runner.The wastage will be kept less than 1% the new sprayer design make the mould are easy for maintaining
Hydraulic Ejecting System
The perform-doffing success ratio has achieved firm endurance and the whole perform ejecting process will become much quieter.

                          THE  MATERIAL  OF  THE  MOLD
Mould  cavity S136  with  HRC  42-45
Mould  core S136  with  HRC  45-48
Mould  neck 40Cr   with  HRC  45-50
Valve  PinSKD51  from  Japan  with  HRC  58-60
Valve Pin heat
Isolation pad
America  Dupont  can  withstand  350  degrees  temperature
Hot  runner  nozzleAmerica  Beryllium  copper  with  HRC  37
Mould manifold plateH13  from  America  with  HRC  35-38
Mould  other  plateP20
Other  Specification  of  the  Mould
Hot runner system   Hot  runner  system  is  made  by  our  own  factory,   But  the  spare  parts  of  the  Hot  runner  is  from
 Germany  Hotest
PID  controllerMade  by  our  own  factory
Guarantee  for  the
1 million shot times of 1 year
Free  spare  parts
  of  the  mould
Core set : 2set/  cavity:2 Piece/  hot runner system: 2set/
PID controller system: 2Set/  other easy broken spare parts
 Several for each
The  life  of  the  mould5-6years  , Even  in  10  years  in  good  maintenance
Installation  &   CommissionOur  technician  can  be  the  buyer' s  factory  to  install  and  run  the  mould.   But  the  buyer  should  bear  all  the  cost  for  the  technician' s  trip(include  the  air  ticket,   the  cost  of  the  accommodation  and  the  salary)

For further details,please contact us at  Mobile:86-15967014172

Prod Model: 150509
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Structure: Hot Runner Valve Gate Preform Mould
Application: Home Use
Material: Steel
Taizhou Huangyan Xing Xi Te mould factory located in Huangyan district Zhejiang province--the hometown of the mould in China, specializing in PET preform mould, PP preform mould, PET preform mould with valve gate, PET preform mould with short tail, PET preform mould with long tail, mineral bottle preform mould, beverage bottle preform mould, edible oil bottle preoform mould, engine oil bottle preform mould, 3 gallon preform mould, 5 gallon preform mould, preform mould with different weight, preform mould with different length, preform mould with 1 to 96 cavities, cap mould, injection mould, water bottle mould, mineral bottle mould, shampoo and costmetic bottle mould, fruit juice bottle mould, oil bottle mould, jar mould, barrel mould and so on with modern technology and advanced equipments. For over 15 years diligent operation, we had established a mature one-stop service line from inquiry to after-sales service.

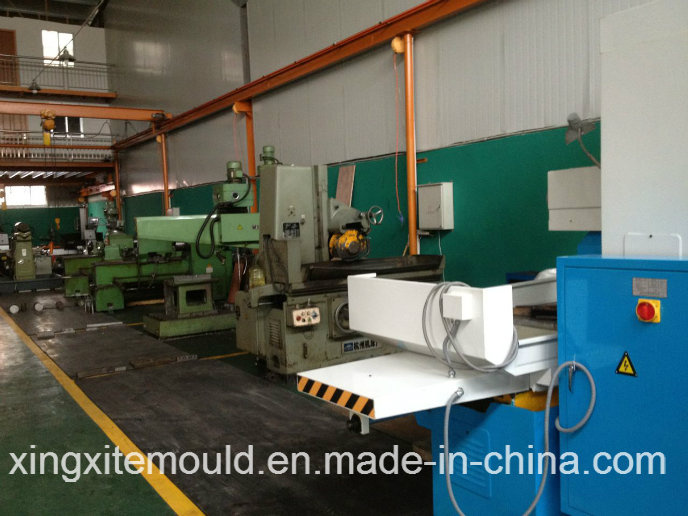

Xing Xi Te Mould uses the latest versions of PRO-E, U. G, Solid-work, auto-CAD to designfull 3D formats and uses the Mold-flow for the analysis of injection. With rich experience in designing, the design team has the ability to provide the financially feasible solutions to meet all the requirements of clients.

Our target is to be your business partner and provide you with complete solutions in high quality and compatible prices. Our founders' experience in mold design, mold manufacturing and injection molding process makes us a strong and reliable partner for you.

We do believe that only good quality molds with compatible prices would lead long term win-win cooperation.
