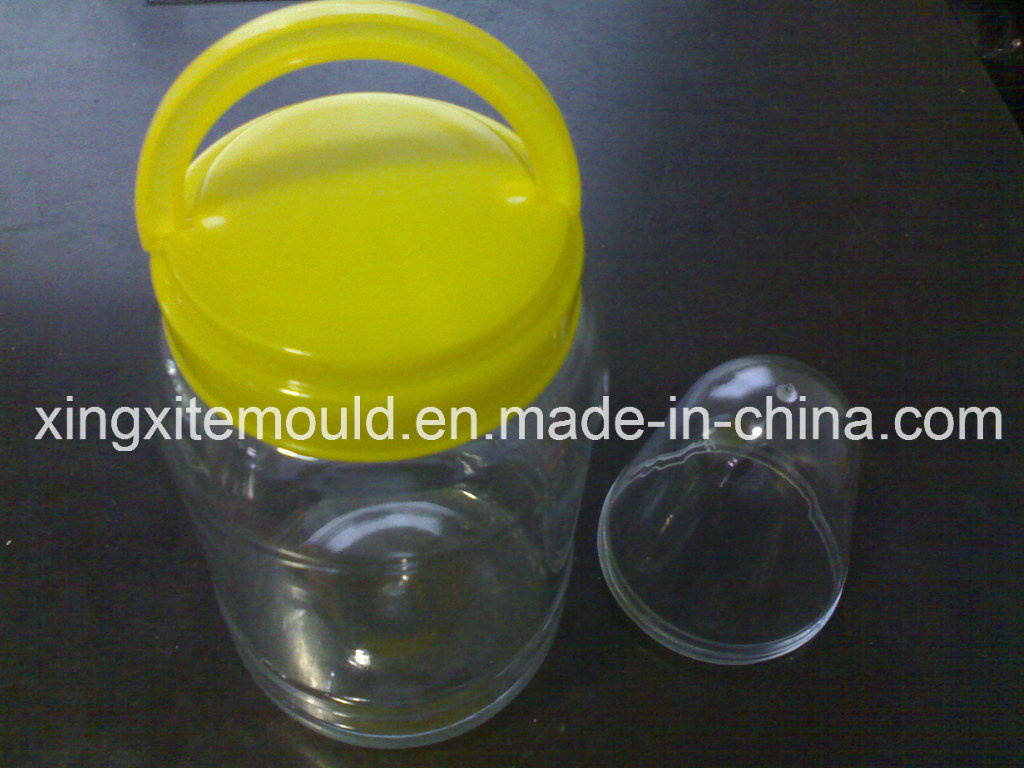

Jar Preform Mould

Jar Preform Mould
Price: US $ 5000-6500/Set
Trade Terms: FOB,CIF,EXW
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union

Taizhou Huangyan Xing xi te mould factory located in Huangyan

district Zhejiang province--the hometown of the mould in China,

We specialize in  plastic bottle mould,preform mould,cap mould,

injection mould,water bottle mould,mineral bottle mould,shampoo

and costmetic bottle mould,fruit juice bottle mould,oil bottlemould,

jar mould and so on with modern technology and advanced

equipments.Fo over 15 years diligent operation,we had

established a mature one-stop service line from inquiry to

after-sales service.

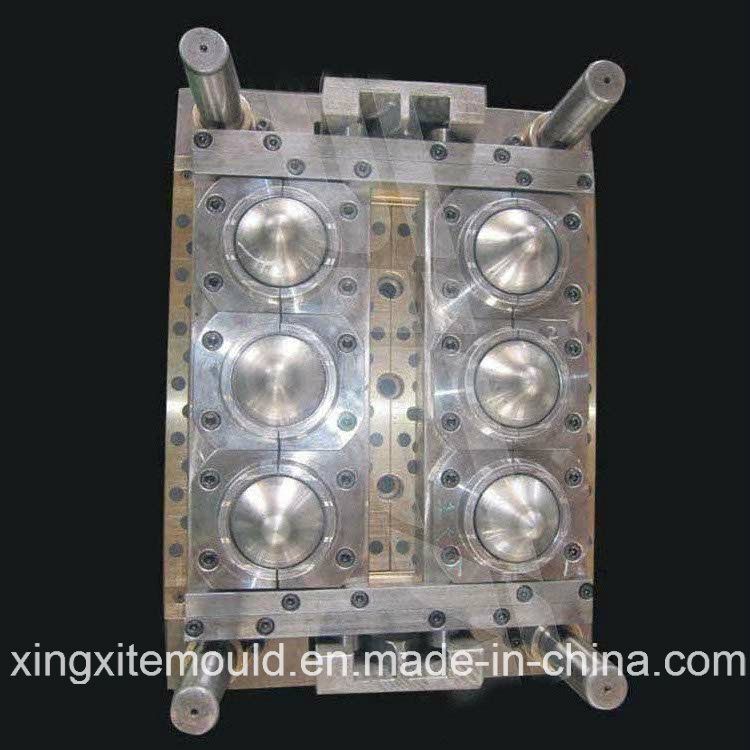

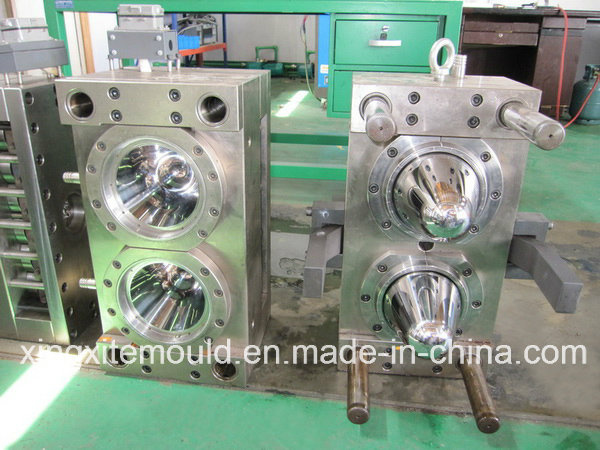

Jar preform mould features :

1) Mould base plate: P20, all plates will be nickel plated.

2) Core: S136 (Sweden), the HRC is 49-52C.

3) Cavity: S136 (Sweden), the HRC is 45C.

4) Neck part: S136 (Sweden), the HRC is 45-47C.

5) Similar to HUSKY structure, have cooling system in the neck, slide plate, hot runner plate.

6) Graphite copper plate under slide plate, with better lubricate effect.

7) Germany standard PID temperature controller.

8) The weight tolerance: +/- 0.1gram (depend on the weight of the preform)

9) The thickness tolerance: +/- .0.05mm (depend on the length of the preform)

10) Test sample delivery time: 45days.

11) Mould lifetime: At least 3,000,000 shots.



Please contact us for further details ,thank you ~-~










Prod Model: 110612
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Gate: Valve Gate
Design: Ug,CAD
Experience: with Over 15 Years
Equipments: CNC,Milling,Boring,Drilling Machine etc
Delivery Time: 45 Days
Material: Steel
Application: Household Appliances
Taizhou Huangyan Xing Xi Te mould factory located in Huangyan district Zhejiang province--the hometown of the mould in China, specializing in PET preform mould, PP preform mould, PET preform mould with valve gate, PET preform mould with short tail, PET preform mould with long tail, mineral bottle preform mould, beverage bottle preform mould, edible oil bottle preoform mould, engine oil bottle preform mould, 3 gallon preform mould, 5 gallon preform mould, preform mould with different weight, preform mould with different length, preform mould with 1 to 96 cavities, cap mould, injection mould, water bottle mould, mineral bottle mould, shampoo and costmetic bottle mould, fruit juice bottle mould, oil bottle mould, jar mould, barrel mould and so on with modern technology and advanced equipments. For over 15 years diligent operation, we had established a mature one-stop service line from inquiry to after-sales service.

Xing Xi Te Mould uses the latest versions of PRO-E, U. G, Solid-work, auto-CAD to designfull 3D formats and uses the Mold-flow for the analysis of injection. With rich experience in designing, the design team has the ability to provide the financially feasible solutions to meet all the requirements of clients.

Our target is to be your business partner and provide you with complete solutions in high quality and compatible prices. Our founders' experience in mold design, mold manufacturing and injection molding process makes us a strong and reliable partner for you.

We do believe that only good quality molds with compatible prices would lead long term win-win cooperation.
