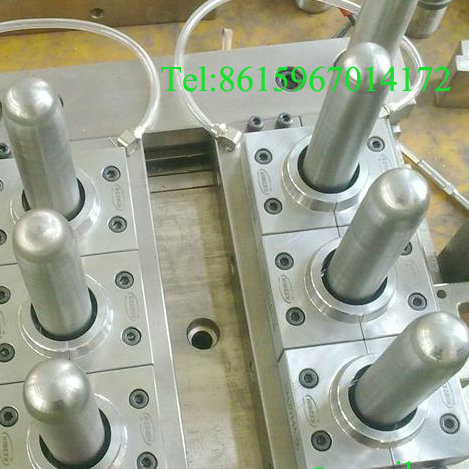

Pet Preform Mould (150506)

Pet Preform Mould (150506)
Price: US $ 2500/Set
Trade Terms: FOB,CIF,EXW
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union

Huangyan Nankang Mould  factory located in Huangyan district Zhejiang province--the hometown of the mould in China,We specialize in  plastic bottle mould,preform mould,cap mould,injection mould,water bottle mould,mineral bottle mould,shampoo and costmetic bottle mould,fruit juice bottle mould,oil bottle mould,jar mould and so on with modern technology and advanced equipments.Over 15 years diligent operation,we had established a mature one-stop service line from inquiry to after-sales service.

Our mould features:

Hot runner system
Usually, Multi-cavity pet preform mould does use the hot runner system rather than cold runner system, so the design of hot runner system plays an important role in mould quality guarantee.
Adopt advanced hot runner system with point to point control system,in which each cavity has its own heating zone and temperature is measured by independent thermocouple.
Cooling system
Each core,cavity and neck and slide plate adopt independented cooling system, which brings high productivity.
Proper distribution of cooling water way improve productivity effect and molding cycle only takes 15 seconds
Valve gate
Adopt the valve gated design avoid some problems such as whiting or plastic filiform on bottom,which brings high-quality products.
Hydraulic Ejecting
The perform-doffing success ratio has achieved high level and the whole perform ejecting process will become much quieter.Avoid the mechanism friction
Double Self-lock structure
The main components of moulds ( core,cavity and screw neck )are made by high precision high speed machine tool process,which ensure the precision and with advanced technique to make each cavity self-lock,and bi-awls orientation strucure ensure mold concentricity (tolerance less than 0.08mm)
Graphite copper plate under slide plate,guide push with Graphite copper tube as lubricant to reduce the mold guide friction,when the mold open and close.
Slipper block use HUSKY type with material of steel P20, which is highly anticorrosion, all the move parts used advanced ion nitration treatment, the surface hardness is HRC48-52.
The hot runner adopts the PID controlling system.It has the function of the self repair and self protection.Which can prolong life of the heating element.The temperature difference under controlling within 1°C difference.It will make sure that raw material can not be burnt insider of the hot runner.The wastage will be kept less than 1% the new sprayer design make the mould are easy for maintaining
Hydraulic Ejecting System
The perform-doffing success ratio has achieved firm endurance and the whole perform ejecting process will become much quieter.

For further details,please contact us at         Mobile:86-15967014172

Prod Model: 150506
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Structure: Hot Runner Valve Gate Preform Mould
Design: Ug,CAD
Mould Core And Cavity: S136
Hardness: 45-52HRC
Mould Base: P20
Material: Steel
Application: Home Use
Taizhou Huangyan Xing Xi Te mould factory located in Huangyan district Zhejiang province--the hometown of the mould in China, specializing in PET preform mould, PP preform mould, PET preform mould with valve gate, PET preform mould with short tail, PET preform mould with long tail, mineral bottle preform mould, beverage bottle preform mould, edible oil bottle preoform mould, engine oil bottle preform mould, 3 gallon preform mould, 5 gallon preform mould, preform mould with different weight, preform mould with different length, preform mould with 1 to 96 cavities, cap mould, injection mould, water bottle mould, mineral bottle mould, shampoo and costmetic bottle mould, fruit juice bottle mould, oil bottle mould, jar mould, barrel mould and so on with modern technology and advanced equipments. For over 15 years diligent operation, we had established a mature one-stop service line from inquiry to after-sales service.

Xing Xi Te Mould uses the latest versions of PRO-E, U. G, Solid-work, auto-CAD to designfull 3D formats and uses the Mold-flow for the analysis of injection. With rich experience in designing, the design team has the ability to provide the financially feasible solutions to meet all the requirements of clients.

Our target is to be your business partner and provide you with complete solutions in high quality and compatible prices. Our founders' experience in mold design, mold manufacturing and injection molding process makes us a strong and reliable partner for you.

We do believe that only good quality molds with compatible prices would lead long term win-win cooperation.
