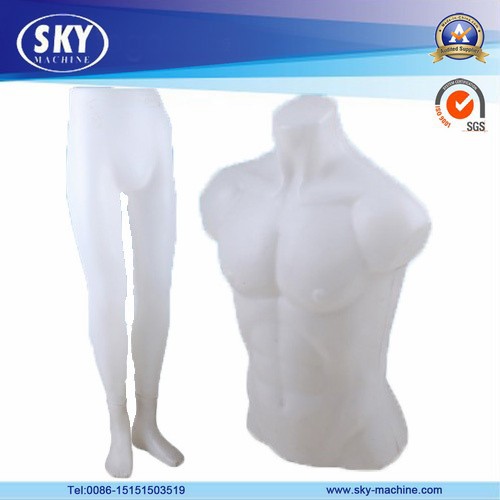

Plastic Mannequin Extrusion Blow Moulding Machine
1, Model: SKY-90N
2, Maximum product volume: 90L
SKY100N-90L Plastic Mannequin Extrusion Blow Moulding Machine, This single station machine is equipped with accumulator die head, for the Production of articles for 50liter to 90liters made out of PE, PP and ABS, suiting for thePackaging of petroleum, chemicals products, toys, tech-and auto-parts. This machine is
Designed for producing high quality, bigger size and complex parts.
Description:
For containers from 50L up to 90L
With 12L accumulator head
Max clamping force 400KN
Linear rolling motion guider equipped
Easily operation by PLC+touch screen
Imported hydraulic component
Energy saving hydraulic design
Equipped with take out robot
Parison programmer can be adopt
Multi-functional bottom blow mechanism
Servo motor can be equipped
Parameter:
Dry cycle 360 PCS/H
Screw diameter 100mm
Screw L/D ratio 25
Screw driver power 45KW
Screw heat power 24KW
HDPE output 180KG/H
Oil Pump Power 22KW
Accumulator capacity 12L
Clamping force 400KN
Mold stroke 550-1250mm
Template size 1000*1350mm
Max Die diameter 430mm
Machine size 5.5*2.8*4.5m
Machine weight 16T
