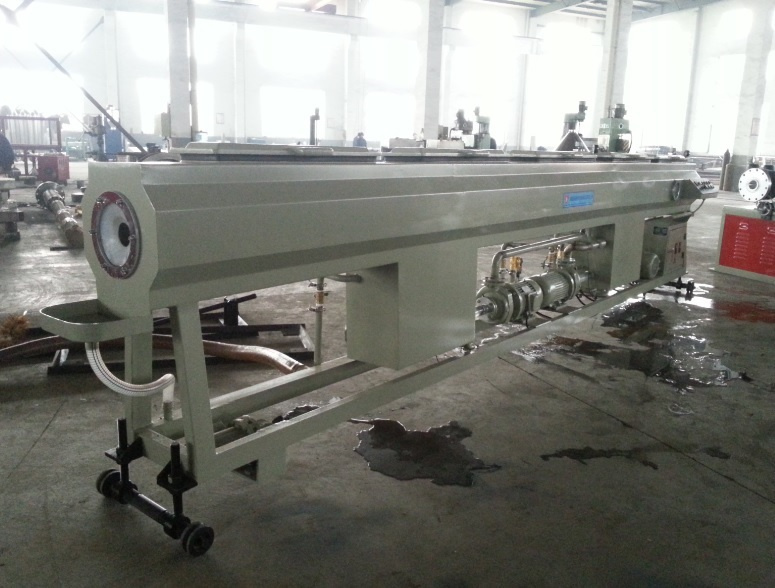

Plastic Pipe Extruder
This plastic extruder (conical two screw extruder, conical two-screw extruder, extruder, single-screw extruder, conical twin-screw extruder) machine is mainly used to process PP, PE, WPC, ABS and other plastics.
Equipped with auxilary machines, it can manufacture profile, pipes, sheets and other plastic products and granulation.
It has the advantage of simple production technological process, high output, stable quality and low cost.

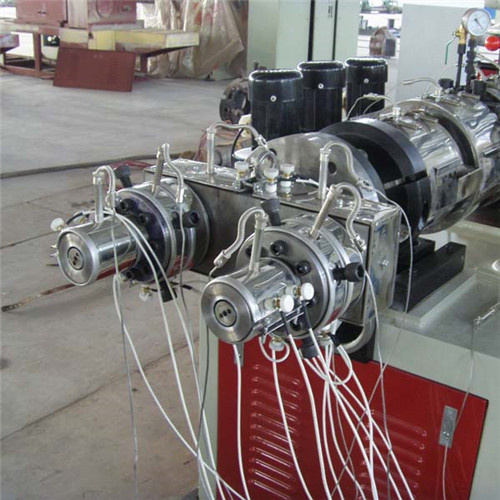

SJSZ Series conical double screw plastic extruders are special equipments which are suitable for various PVC powder to extrusion and molding.
Equipped with different kinds of molds and auxiliary machines, it can produce kinds of PVC pipes, profiles, plates, bars and granulation.
| Item | SJSZ-45 | SJSZ-51 | SJSZ-65 | SJSZ-80 | SJSZ92 |
| Diameter of screw(mm) | 45/100 | 51/105 | 65/132 | 80/156 | 92/188 |
| Number of screw(mm) | 2 | 2 | 2 | 2 | 2 |
| Direction of screws | Outwards contra-rotating |
| Screw rotation speed(rpm) | 1-37 | 1-32 | 1-34.7 | 1-36.9 | 1-32.9 |
| Effective length of screw(mm) | 985 | 1070 | 1440 | 1800 | 2500 |
| Power of main engine(kw) | 15 | 22 | 37 | 55 | 90 |
| Barrel heating power(kw) | 12 | 18 | 24 | 36 | 60 |
| Production capacity(kg/h) | 95 | 80-120 | 160-250 | 300-360 | 500-600 |
| Center height(mm) | 1000 | 1000 | 1000 | 1000 | 1200 |
| Net weight(kg) | 2800 | 3200 | 4000 | 5000 | 10000 |
| Dimensions(mm)(L×W×H) | 3620×1050×2157 | 3000×1050×2200 | 4235×1520×2450 | 4750×1550 |
|
Zhangjiagang Yatong Machinery Co., Ltd., is located in the beautiful and economic-strong city of Zhangjiagang, Jiangsu. Founded in 1998 with an area of more than 15, 000 square meters, it is a professional manufacturer in the field of plastic pipe and profile extrusion PE, PP FILM and PET recycling, etc. Our machines are serving in most part of the world, including Asia, South America, Middleast, Europe, etc. And received numerous favorable feedbacks from overseas customers.
Providing our customers with the best quality machine is our ultimate goal, thus, Yatong Machinery Co. Offers superior service through a well-trained and dedicated work force. We are ISO 9001: 2000 and CE certified.
