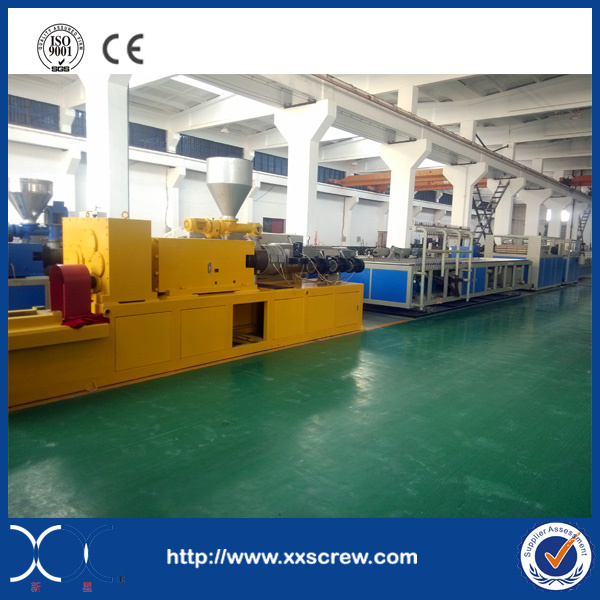

Plastic Profile Extrusion Machine Line:
1. Suitable material: PP PE PVC with wood powder rice husk and other additives.
2. Machine compose of Conical twin screw extruder, extrusion mold, vacuum calibration device, caterpillars haul off machine, cutting machine and stacking machine.
3. Machien electrical parts: Use world famous brand product, Siemens AC motor, ABB Frequency speed governor.
4. Extruder capacity optional according to customer need.
5. Strong quality control and well after service.
For more details welcome to contact with me.
| Model | SJZ-45 | SJZ-51 | SJZ-55 | SJZ-65 | SJZ-80I | SJZ-80II | SJZ-92 |
| Screw diameter(mm) | 45/90 | 51/105 | 55/110 | 65/132 | 80/156 | 80/172 | 92/188 |
| Max. Rotational speed of screw(rpm) | 45 | 45 | 45 | 45 | 34.7 | 34.7 | 34.7 |
| Main motor(kw) | 15 | 18.5 | 22 | 30/37 | 55 | 81 | 110 |
| Capacity(kg/h) | 110 | 125 | 150 | 260 | 400 | 400 | 800 |
| Central height(mm) | 1000 | 1000 | 1000 | 1000 | 1100 | 1100 | 1200 |
| Net weight(kg) | 3000 | 3000 | 3500 | 4000 | 5500 | 5500 | 8000 |
| Dimension(L*W*H)(M) | 3.3*1.2*2.1 | 3.6*1.1*2.1 | 3.6*1.1*2.1 | 4.2*1.5*2.4 | 4.7*1.5*2.4 | 5.0*1.6*2.6 | 6*1.6*2.5 |
XINXING brand was founded in 1993 at zhoushan city, Zhejiang province, China for barrel and screws manufacture;
Shanghai XINXING was founded in 1999 at Shanghai City, China for complete extrusion machine manufacture for PVC/PE pipe and pelletizing line.
With more than 20 year's experience XINXING has the ability to design and produce different extrusion line for PVC/PE/PP/PET/PS/ABS...Different raw materials with different final products like the PIPE, PROFILE, BOARD, SHEET, PELLET and so on.
And XINXING has exported all the lines to more than 30 countrys in all over the worl.
The mainly market for XINXING is Middle East, Eest Euro, South Asian and South American.
With 20 year's working in the interner market, XINXING has got strong market feedback, and set up reliable agent relation in the above market.
XINXING has the ability, the experience and the willing to offer professional and strong support to all the customer.
