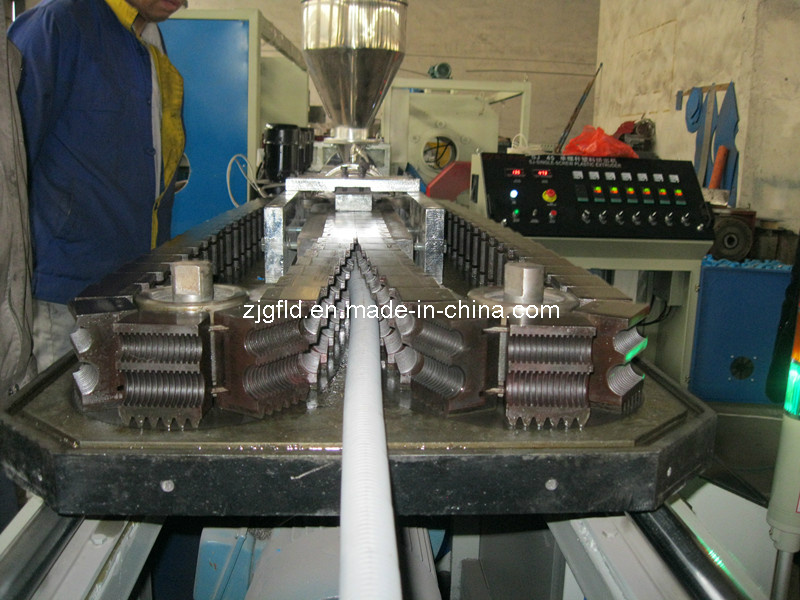

PE PP Corruagated pipe extruder
Our company of PP PE PVC corrugated pipe extrusion line/ making line adopts imported machine parts and technology ( driving motor and electrical control system, mold ), stable plasticizing performance and easy, safe operation.
Finished pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc.
Process flow:
Dryness loaderSingle screw extruderDieForming mouldsWater tank(optional)Haul off and cutterDouble working-station winder
Breif introduction
1. According to the speed and raw material to choose screw.
2. Adopt flat belt haul off
3. Length-fixed cutting
4. Equipped with position limited switch
5. PLC control and Siemens inverter and motor
Diameter Scope
| 4.5-9 mm
| 9-32 mm
| 16-75 mm
|
Main Extruder
| SJ-30
| SJ-45
| SJ-65
|
L/D
| 30:1
| 28:1
| 30:1
|
Output kg/h (kg/h)
| 10
| 40
| 100
|
Main Motor (KW)
| 2.2
| 11
| 18.5-30
|
Corrugator Power (KW)
| 1.1
| 1.5
| 2.2
|
Mould Block Pairs
| 40
| 44-50
| 44-50
|
Cooling Type
| Water and air cooling
|
Line Speed (m/min)
| 8-16
| 6-12
| 6-20
|
Counting Type
| Sensing counting
|
Winding Type
| automatic
| automatic
| automatic
|
Zhangjiagang Friend Machinery Co., Ltd is located in Zhangjiagang City, enjoying convenient transportation and beautiful environment. Our company covers an area of 5000 square meters and has 60 employees. We are specialized in producing plastic machine and have an annual production capacity of 400 million US dollars. Our company has rich experience in the plastic machinery making industry. Our main products include 3D filament production line, Plastic pelletizing machine, waster plastic recycling and washing machine, plastic pipe/board/profile production line and other kinds of plastic machine. Besides, we are making great efforts to develop new products to meet different requirements. Our company has CE, and SGS certificate control the product quality. Adhering to the business principle of mutual benefits, we have had a good reputation among our customers because of our perfect services, quality products and competitive prices. We warmly welcome customers from at home and abroad to cooperate with us for common success.
Our company is well known both at home and abroad for high quality products and complete service systems. Our products sell well all over the world.
If you are interested in any of our products, please feel free to contact us for more information.
