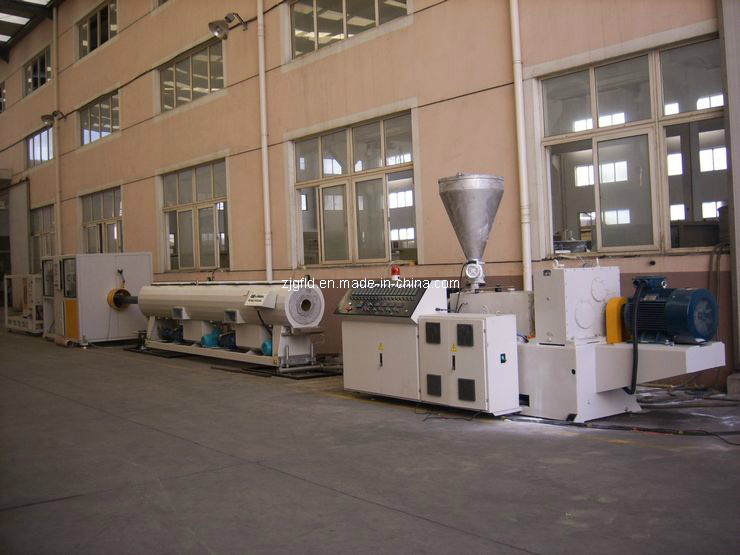

PVC pipe line
This PVC pipe production line is mainly used in the manufacture of the UPVC and PVC pipes with various tube diameters and wall thickness such as the agricultural and constructional plumbing, water supply and drain etc.
This set is composed of
1, automatic feeder
2, single screw extruder
3, mould
4, stainless steel vacuum calibration tank
5, stainless steel cooling tank
6, haul-off (traction) machine
7, automatic cutter
8, stacker
Features
The screw extruder and traction machine adopt imported AC frequency control device. The vacuum pump and traction motor both adopt advanced products. The traction has many traction models, such as two-claw, three-claw, four-claw, six-claw etc. It may choose visual blade or cutting type, The unit is of reliable performance and high production efficiency.
Diameter scope (mm)
| 16-40
Dual
| 20-63
Dual
| 20-63
| 50-160
| 63-200
| 160-315
| 315-630
| 560-800
|
Conical extruder
| SJZ51/105
| SJZ65/132
| SJZ51/105
| SJZ65/132
| SJZ65/132
| SJZ80/156
| SJZ92/188
| SJZ105/216
|
Extruder Power(KW)
| 18.5 AC
| 37 AC
| 18.5 AC
| 37 AC
| 37 AC
| 55 AC
| 110 DC
| 160 DC
|
Max. capacity (KG)
| 120
| 250
| 120
| 250
| 250
| 350
| 800
| 1100
|
Max. Lineal speed (m/min..)
| 10
| 15
| 15
| 8
| 3.5
| 3
| 1.2
| 1.3
|
