The machine units can produce the pipe scope: 20-630mm, and the machine output can reached between: 120-800kg/h
Example Detailed information:
Conical twin screw extruder model SJSZ 65/132
Property characteristic
Screw diameter: Φ 65mm, Φ 132 mm
Driving motor power: 55KW AC motor (rated speed: 1450rpm)
AC speed regulator: ABB frequency converter
Extrusion output max.: 260 kg/h
Speed reducer: Gear and shaft use high tensile & strength steel alloy. Gear was processed by nitriding, quenching, grinding treatment so that its accuracy reach IS06 degree. Gear surface hardness is HRC56-62. Bearing and oil seal main standard parts use high quality famous brand. Overall machine is in high power, compact construction, steady transmission, low noise, high efficiency etc...
Screw: It is new design high efficiency screw that specialized in processing PVC material. Nitriding depth is 0.5 - 0.6mm, hardness is HV740 - 940, surface roughness is Ra<=0.8um
Screw diameter: Φ 65mm/132mm
Structure format high effectiveness & homogeneous plasticization
Material 38CrMoAIA
Barrel: Feeding barrel is combined by feeding section and reinforced water cooling device, as well as reinforced feeding groove, making sure output to be stable and reliable during extrusion. Barrel use air cooling method, its nitriding depth is 0.5 - 0.7mm, hardness is above HV860, inside surface roughness is Ra<=1.6um
Extruder head adapt melt pressure sensor
Heating section
Barrel heating zone 4-24kw
Barrel cooling power 3X0.55kw reinforced air cooling
Mold adapter zone 1X2.5kw
Mold heating zone 5 zone
Automatic feeding & drying machine 300kg/H
Operating system:
(check the table below)

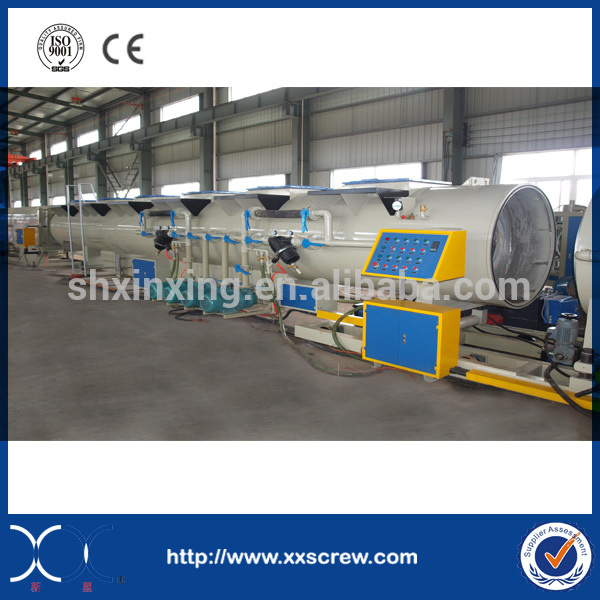

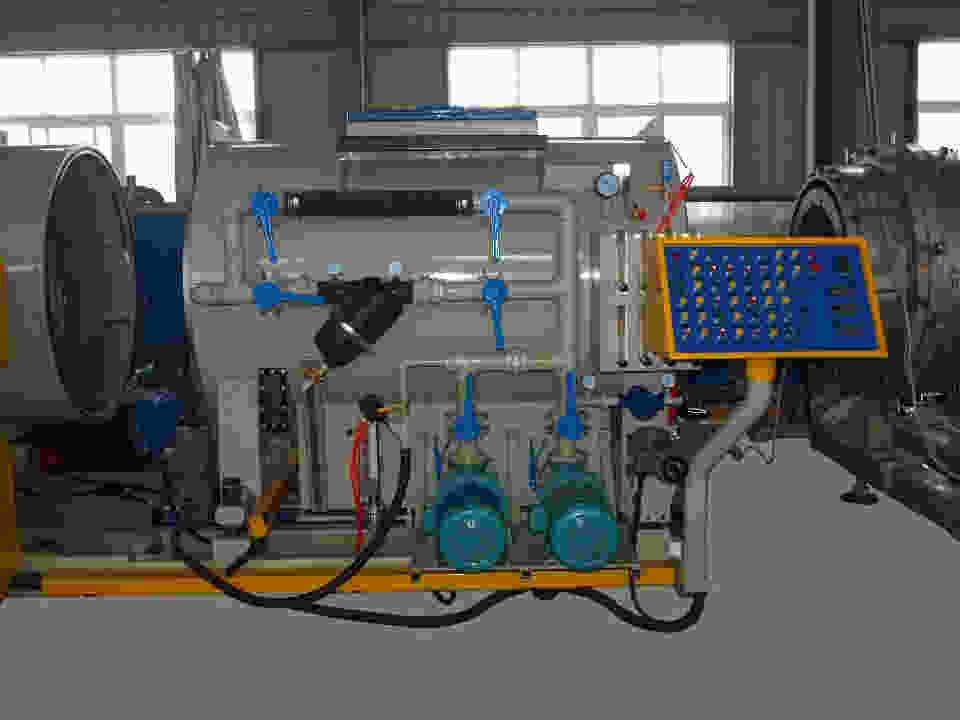

Vacuum forming tank model DY160
Pipe dia. Range: Φ 16mm-Φ 160mm
Dimension: 6000× 450× 450mm
Total length: 6300mm
Center height: 1000mm
Tank material: Stainless steel
Vacuum pump power: 5.5kw X 1pcs
Vacuum degree: 0~0.08MPa (adjustable)
Water pump power: 4kw× 2pcs
Nozzle qty: 232+214
Water filter: 1set
Seal device (sealing plate): 1set
Nylon supporter for pipe (adjustable): 1set
Tank cover use casting aluminium alloy: 1set
Shift adjustment device: 1set
Distance: 700mm
Two caterpillars traction machine model QY160
Effective traction length: 1600mm
Dimension: 1900× 800× 1700mm
Traction force: 48KN
Traction speed: 1-18m/min.
Main motor power: 2x2.2kw
Caterpillar qty: Two caterpillars
Adjusting way for up caterpillar: Pneumatic compress device
Adjusting way for down caterpillar: By manual
Traction pipe dia. Range: Φ 16mm-Φ 160mm
Cutting machine model QG160
Pipe dia. Range: Φ 16mm-Φ 160mm
Dimension: 1600× 1100× 1000mm
Max. Cutting times: 4time/min.
Blade forward & retreat: By electric
Cutting power: 1.5kw
Turn over stacker model FG160
Dimension: 6000× 500× 1200mm
Pneumatic automatic turn over, the part connecting with pipe are covered by rubber, which will protect surface from scratching
Shanghai factory
Zhoushan factory
AC motor, ABB frequency speed regulator
|
Low-voltage apparatus
|
|
Buttons, toggle switches
|
Schneider, France
|
Contactors
|
SIMENS products
|
Air switches
|
DELIXI
|
Intermediate relays
|
OMRON
|
Temperature controller
|
RKC, Japan
|
Heating ring
|
stainless steel cast aluminum heater
|
No.
|
Equipment listing
|
Quantity
|
1
|
Conical twin screw extruder model SJSZ 65/132
|
1 set
|
2
|
Extrusion mold model SQ160
|
2 set
|
3
|
Vacuum forming tank model DY160
|
1 set
|
4
|
Two caterpillars traction machine model QY160
|
1 set
|
5
|
Cutting machine model QG160
|
1 set
|
6
|
Turn over stacker model FG160
|
1 set
|
XINXING brand was founded in 1993 at zhoushan city, Zhejiang province, China for barrel and screws manufacture;
Shanghai XINXING was founded in 1999 at Shanghai City, China for complete extrusion machine manufacture for PVC/PE pipe and pelletizing line.
With more than 20 year's experience XINXING has the ability to design and produce different extrusion line for PVC/PE/PP/PET/PS/ABS...Different raw materials with different final products like the PIPE, PROFILE, BOARD, SHEET, PELLET and so on.
And XINXING has exported all the lines to more than 30 countrys in all over the worl.
The mainly market for XINXING is Middle East, Eest Euro, South Asian and South American.
With 20 year's working in the interner market, XINXING has got strong market feedback, and set up reliable agent relation in the above market.
XINXING has the ability, the experience and the willing to offer professional and strong support to all the customer.
