PVC Pipe Machine
This line is used for producing PVC pipe.
We also can call it PVC pipe extrusion line. PVC pipe extrder. PVC pipe production line. PVC pipe making machine
GF series PVC pipe production line is mainly used in the manufacture of the UPVC and PVC pipes with various tube diameters and wall thickness such as the agricultural and constructional plumbing, water supply and drain etc.

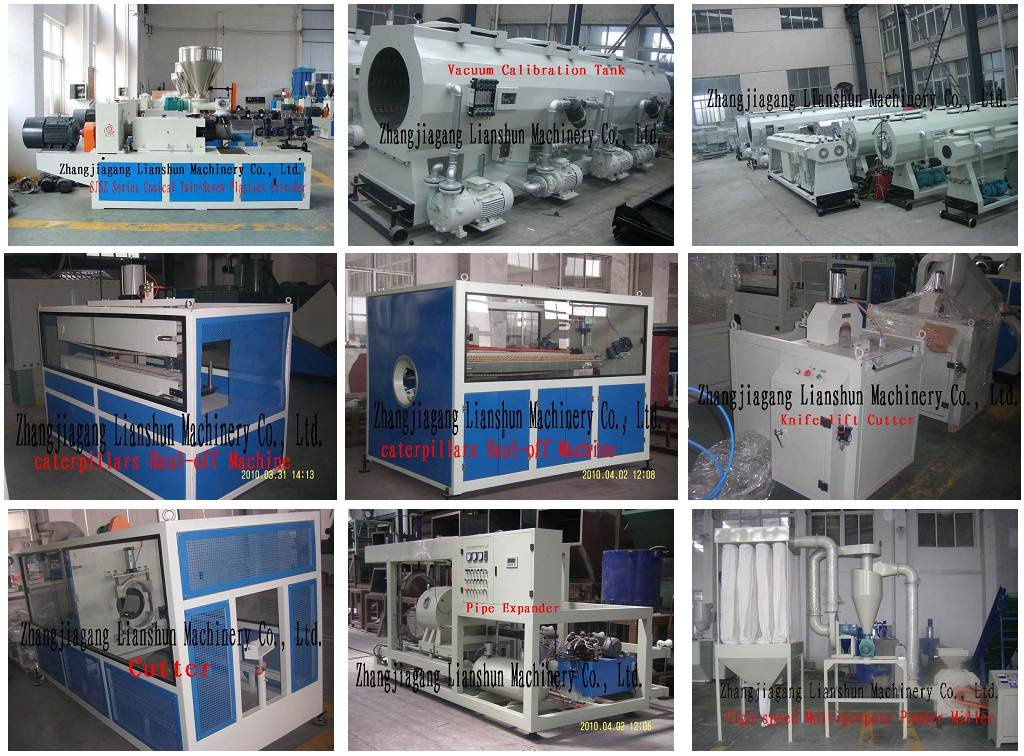

One whole line is composed of
1. Feeder
2. Twin-screw Extruder
3. Mould
4. Vacuum Calibration Tank
5. Spray Box
6. Haul-off Machine
7. Automatic Cutter
8. Stacker
Auxiliary Machine
1. Spiral feeder
2. Mixing Unit
|
Main Technical Parameters |
|
Model |
PVCG-110 |
PVCG-160 |
PVCG-250 |
PVCG-315 |
PVCG-400 |
PVCG-630 |
|
MATCHED EXTRUDER |
SJZ51/105 |
SJZ65/132 |
SJZ65/132 |
SJZ80/156 |
SJZ80/156 |
SJG92/188 |
|
OD RANGE(mm) |
50-110 |
50-160 |
75- 250 |
110-315 |
200-400 |
315-630 |
|
LENGTH OF VACUUM CALIBRATOR TANK(mm) |
6000 |
6000 |
6000 |
6000 |
6000 |
6000 |
|
HAUL SPEED(m/min) |
0.6-6 |
0.5-5 |
0.4-4 |
0.3-3 |
0.2-2.5 |
0.2-1.5 |
|
INSTALLED POWER(kw) |
67 |
85 |
95 |
125 |
135 |
255 |
|
TOTAL LENGTH9(mm) |
17000 |
18000 |
20000 |
20500 |
28000 |
30000 |
Jiangsu Lianshun Machinery Co., Ltd., specializes in producing plastic machines, including pipe machines, sheet machines, profiled machines, recycling machines and auxiliary machines.
After more than four years development, the technologies are developed and the functions of machines are stable, especially for plastic pipe production lines and recycling machines. The main products of our company have been exported to different countries and have a good reputation.
We welcome customers from all over the world to cooperate with us. Please do not hesitate to contact us if you have further inquiry. We look forward to hearring from you soon in order to provide you with our best of service.
